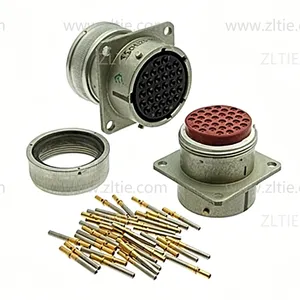

Help CenterZH23 Series Shell Size 27 32 Pin Female Socket With Simple Tail Attachment (Key Position: D) – СНЦ23-32/27Р-1Г-В ZH23-32/27P-1d-B
Related Products
-
2PM-22 Series 4Pin Docking Male Panel Socket With Cable Shell – 2РМТ22БПН4Ш3В1В 2PM22J4ZQB2NegotiableMOQ: 200 Units -
FQ14 Series 2-Pin Circular Flange Female Socket With Wire Spring Tail Attachment FQ14-3YZPK-8NegotiableMOQ: 200 Units
-
ОНS-BС-1(2) Series Connector Shell Size 18 19 Pin Male Socket-ОНS-BС-1-19/18-B1-1-BNegotiableMOQ: 200 Units
-
2PM-30 Series 8Pin Male Straight Cable Plug Unshielded – 2РМДТ30КПН8Ш7В1В 2PM30J8QB2NegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 27 32 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-32/27В-6А-В ZH23-32/27B-6a-BNegotiableMOQ: 200 Units
Product Details:
ZH23 series bayonet connectors have the characteristics of environmental resistance, five-button positioning, anti-insertion, and bayonet quick connection.
Used in low frequency AC and DC circuits. It can be matched and interchanged with the Russian connector СНЦ23 series.
Attributes:
Connector Type: Receptacle
Contact Type: Female
Number of Positions: 32 Pin
Orientation: Straight
Shell Size: 27
Fastening Type: Bayonet Connection
Contact Material: Copper Alloy Gold
Insulating Materials: PPS
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Operating Temperature: -60℃ – +200℃
Vibration: Acceleration 40g (1-5000HZ)
Impact: Acceleration 500g (Once); 150g (Multiple Times)
Salt Spray Resistance: 96h
Relative Humidity: 40℃-65℃ 95%-98%
Insulation Impedance: ≥5000MQ
Mechanical and Working Life: 500 Cycles
