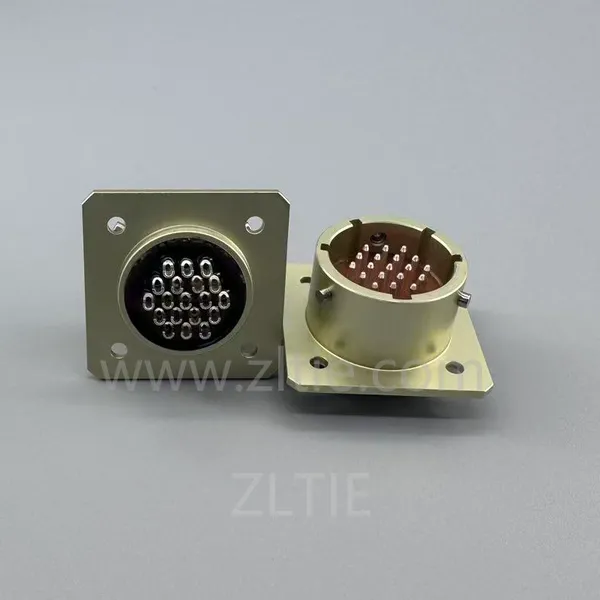

Help CenterОНS-BС-1(2) Series Connector Shell Size 18 19 Pin Male Socket-ОНS-BС-1-19/18-B1-1-B
Related Products
-
2PM-30 Series 8Pin Male Straight Cable Plug Unshielded – 2РМДТ30КПН8Ш7В1В 2PM30J8QB2NegotiableMOQ: 200 Units -
ZH23 Series Shell Size 27 32 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-32/27В-6А-В ZH23-32/27B-6a-BNegotiableMOQ: 200 Units
-
2PM-30 Series 32Pin Male Angled Cable Plug Unshielded With Gold-Plated Pin – 2РМТ30КУН32Ш1А1В 2PM30J32WB1NegotiableMOQ: 200 Units
-
2PM-30 Series 8Pin Male Panel Socket – 2РМДТ30Б8Ш7В1В 2PM30J8Z2NegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 22 10 Pin Female Plug With Straight Tail Attachment (Key Position: B) – СНЦ23-10/22Р-6Б-В ZH23-10/22P-6b-BNegotiableMOQ: 200 Units
Product Details:
OHS series bayonet ultra-small connectors mainly adopt Russian connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНS-BС-1(2) series.
Attributes:
Connector Type: Plug
Contact Type: Male
Number of Positions: 19 Pin
Shell Size: 18
Contact Material: Copper Alloy Gold/Silver Plating
Fastening Type: pps
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Contact Size: Φ1.0
Maximum current per contact: 2.1A
Sum of Currents: 40A
Rated Voltage: 250V
Contact Resistance: ≤5MΩ
Contact Termination: Solder
Fastening Type: Bayonet Connection
Number of Insertions and Removals: 250
Operating Temperature: -60℃ – +85℃
