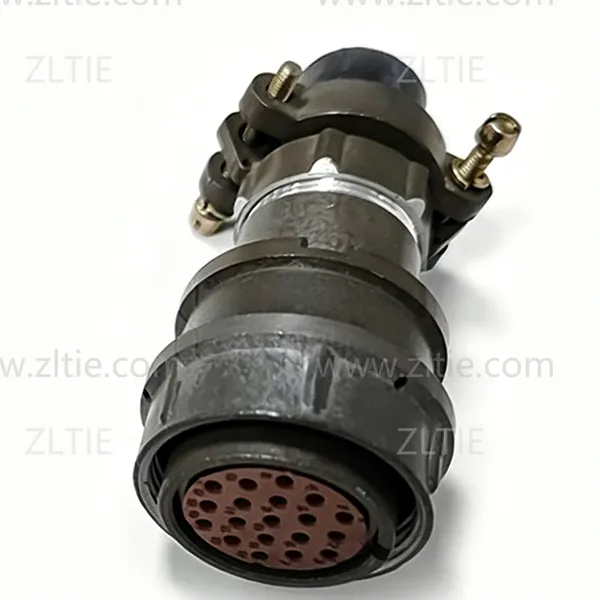

Help Center2PM-27 Series 19Pin Female Straight Cable Plug Unshielded With Gold Plated Pin – 2РМДТ27КПН19Г5А1В 2PM27K19QB1
Related Products
-
DIN41612 Vertical 128 Pin Four Row Male Plug ConnectorNegotiableMOQ: 200 Units -
2PM-30 Series 8Pin Female Angled Cable Plug Unshielded – 2РМДТ30КУН8Г7В1В 2PM30K8WB2NegotiableMOQ: 200 Units
-
2PM-30 Series 32Pin Female Panel Socket With Gold-Plated Pin – 2РМТ30Б32Г1А1В 2PM30K32Z1NegotiableMOQ: 200 Units
-
ZH23 Series Shell Size 27 32 Pin Female Socket With Simple Tail Attachment (Key Position: D) – СНЦ23-32/27Р-1Г-В ZH23-32/27P-1d-BNegotiableMOQ: 200 Units
-
2PM-22 Series 4Pin Docking Male Panel Socket With Cable Shell – 2РМТ22БПН4Ш3В1В 2PM22J4ZQB2NegotiableMOQ: 200 Units
Product Details:
2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.
Attributes:
Connector Type: Receptacle
Orientation: Straight
Number of Positions: 19 Pin
Contact Size:Φ1.5
Shell Material: Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
Contact Finish: Silver/Gold
Fastening Type: Threaded
Rated Current: 10A
Rated Voltage: ≤700V (AC)
Operating Temperature: -60℃ – +200℃
Insulation Resistance: Normal ≥1000MΩ Moistheat ≥20MΩ
Contact Resistance: 0.8-5MΩ
