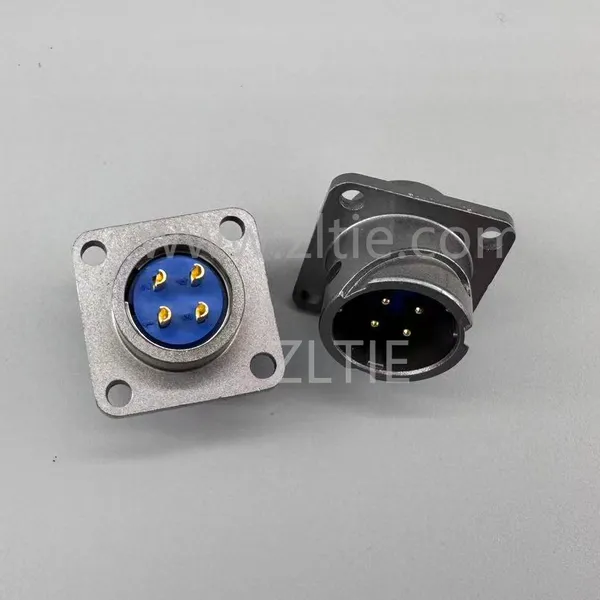

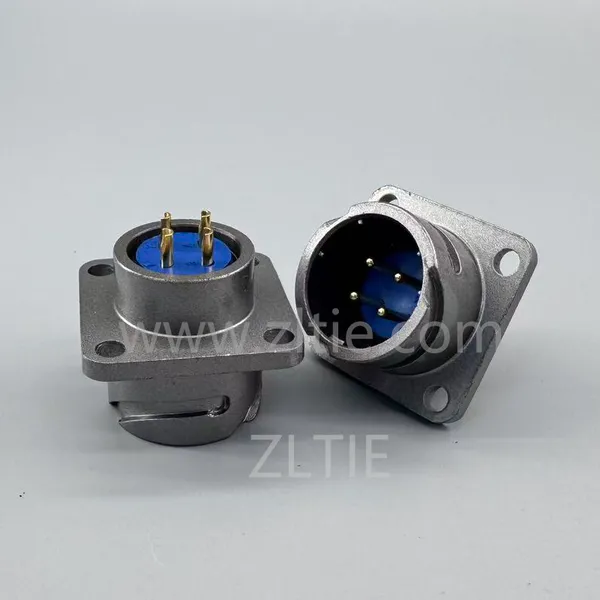

Help CenterFQ18 Series 4-Pin Square Flange Male Socket FQ18-4ZJ
Related Products
-
P16 Series 3-Pin Straight Male Cable Plug With Shielded Tail Attachment P16J2PNegotiableMOQ: 200 Units -
2PM-36 Series 20Pin Female Straight Cable Plug Unshielded – 2РМДТ36КПН20Г6В1В 2PM36K20QB2NegotiableMOQ: 200 Units
-
2PM-27 Series 19Pin Female Straight Cable Plug Unshielded With Gold Plated Pin – 2РМДТ27КПН19Г5А1В 2PM27K19QB1NegotiableMOQ: 200 Units
-
DIN41612 Vertical 128 Pin Four Row Male Plug ConnectorNegotiableMOQ: 200 Units
-
2PM-30 Series 8Pin Female Angled Cable Plug Unshielded – 2РМДТ30КУН8Г7В1В 2PM30K8WB2NegotiableMOQ: 200 Units
Product Details:
FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.
The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.
ATTRIBUTES:
Connector Type: Socket
Shell Size: 18
Contact Size: 4*1.5m
Nummber of Positions: 4 Pin
Connection Method: Bayonet Connection
Terminal Method: Solder
Rated Current: 10A
Contact Resistance: ≤2.5MΩ
Rated Voltage: 400V
Material of Contacts: Copper with Gold Plated
Copper with Gold Plated: PBT
Shell Material: Aluminum Alloy Surface Anodizing Treatment
Ambient Temperature: -55°C~+100°C
Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%
Atmospheric: 1Kpa
Vibration: 10 ~ 200Hz, 150M/S²
IP Rating: IP67
Life Duration: 500 Cycles
