Help CenterOEM Thermostatic Bellows Steam Trap | Stainless Steel Temperature Sensitive Steam Trap for Industrial Steam Systems
Product Spotlights
2.Simple structure and convenient maintenance.
3.All components made of alloy-treated stainless steel,resistant to wearing,gas corrosion,long durability.
4.Good emptying capability with quick discharge and easy installation.
5.Capable of combination of multiple bellows,suitable for large discharge.
6.Good air discharge capability,with coldness resistance,zero leakage and backpressure of 75%.
Related Products
-
Wdv BK Series Bimetallic Steam Trap | Durable Thermostatic Steam Trap for Steam Main, Steam Tracing and Industrial Heating SystemsNegotiableMOQ: 1 Piece -
High Performancep Bellows Type Steam Trap Thermostatic Steam Trap for Steam PipelineNegotiableMOQ: 1 Piece
-
CA40 PN63 Stainless Steel Thermodynamic Steam Trap Valve 1 Inch Threaded High Pressure Steam DrainerNegotiableMOQ: 1 Piece
-
Thermodynamic Disc Steam Trap Flanged/Thread/Socket WeldNegotiableMOQ: 1 Piece
-
STEAM TRAP DN25/1INCH, THERMODYNAMIC, THREADED TYPE CONNECTION NPT, ASME CLASS 600 PN63/100 Preferred Brand: ARMSTRONGNegotiableMOQ: 1 Piece
Bellows Trap
The main acting unit of bellows,which is filled with a ytpe of liquid with gasification temperature lower than water's saturation temperature.When the device just starts,there appears condensate with low temperature in conduits and the liquid in the bellows is in the condensed state.The trap is turned on.When the temperature of condensate water gradually goes up,the liquid in the bellows begins to vaporize and the pressure within it increases.Consequently,the film drives the valve core to move towards the closing direction.Before the condensate water reaches its saturation temperature,the trap is completely shut down.The bellows controls the opening and closing of valves in accordance with steam temperature changes so as to resist steam and discharge water.Available are two alternative bellows with opening temperature 15℃ or 30℃ lower than saturation temperature.
There is high temperature condensate in front of the Bellows Trap (steam pressure balance type) when it works, and there is no steam leakage, so the energy saving effect is significant.
Bellows trap,among all existing steam pipes,are presently the ideal substitute of low-pressure (with pressure below PN25)hot motive (disc)traps or bimetallic elements traps (with pressure below PN16).
1.Quick acting speed and zero leakage.
2.Simple structure and convenient maintenance.
3.All components made of alloy-treated stainless steel,resistant to wearing,gas corrosion,long durability.
4.Good emptying capability with quick discharge and easy installation.
5.Capable of combination of multiple bellows,suitable for large discharge.
6.Good air discharge capability,with coldness resistance,zero leakage and backpressure of 75%.
Technique parameter
|
Shell pressure grade |
Load leakage |
Used medium |
Permitted backpressure rate |
Energy saving effect |
Maximum operating pressure differential |
1.6、2.5MPA |
0% |
Steam、 Condensate water |
75% |
Excellence |
1.6MPA
|
|
Minimum subcooled temperature |
Drainage method |
Maximum allowable temperature |
Air exhaust system |
Freezing resistance |
Resis |
0℃ |
Indirect way |
350℃ |
Automatic |
Excellence |
Adaption |
The materials of primary accessories
|
Part and component name |
Material |
|
Valve body、Valve cover |
Forged steel、Stainless steel |
|
Bellows |
Hastelloy alloy |
|
Valve seat |
STL Alloy |
|
Filtrating screen |
Stainless steel |

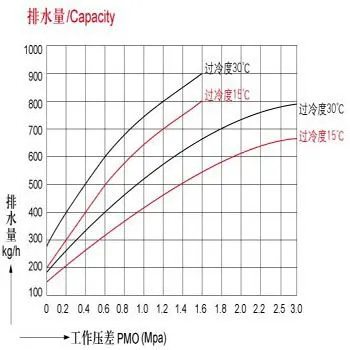

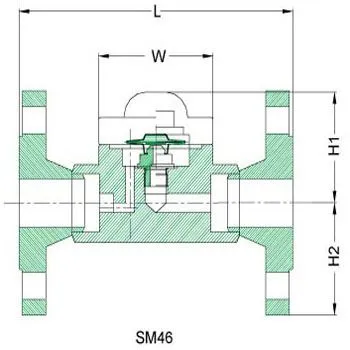

Prime out-form dimensions and weigh
|
Product model |
(DN) Calibre |
L Flange |
L Thread/ welding |
H1 |
H2 |
W |
(kg) weight |
(MPa) Pressure Change range |
(MPa) Nominal pressure |
|
|
SM16 SM46 |
15~20 25 |
150 160 |
100 110 |
58 |
20 |
68 |
1.9 2.5 |
3.9 5 |
0.1-1.6 |
2.5 |
SM46 |
32~40 50 |
220 230 |
150 160 |
68 |
68 |
90 |
5 |
13 |
0.1-1.6 |
2.5 |
SM46 |
65~100 |
310 |
- |
120 |
95 |
150 |
24 |
0.1-1.6 |
2.5 |
