Help CenterTD42 Thermodynamic Disc Steam Trap for Refinery
Product Spotlights
Related Products
-
FT44 WCB Stainless Steel Free Ball Float Steam Trap for RefineryNegotiableMOQ: 1 Piece -
WDV CS41H-16C Free Float Steam Trap, Carbon Steel / Stainless Steel, For Chemical Processing, Nuclear Power, Food & Pharmaceutical ApplicationsNegotiableMOQ: 1 Set
-
OEM Inverted Bucket Steam Trap IB Series | High Efficiency Mechanical Steam Trap for Boiler Steam Line | Cast Steel Flanged Steam Trap ManufacturerNegotiableMOQ: 1 Piece
-
Wdv FT14 Lever Float Steam Trap | High Efficiency Ball Float Steam Trap for Heat Exchanger Boiler and Steam Heating SystemsNegotiableMOQ: 1 Piece
-
Wdv TD42 Thermodynamic Disc Steam Trap | Durable Mechanical Steam Trap for Steam Lines | High Efficiency Condensate DrainageNegotiableMOQ: 1 Piece
Applications:
Steam Tracing
Long-distance steam pipelines
Tank tracing
Crude oil transmission pipelines
Technique parameter
|
Shell pressure grade |
Load leakage |
Used medium |
Shell material |
Permitted backpressure rate |
|
1.6~ 6.4MPA |
0.3% |
Steam、 Condensate water |
Forged steel、 Stainless steel、 Alloy steel |
75% |
|
Maximum operating pressure differential |
Use superheated steam |
Maximum allowable temperature |
Resis |
Pressure Change range |
6.4MPA |
Excellence |
420℃ |
Adaption |
Adaption |
The materials of primary accessories
|
Part and component name |
Material |
|
Valve body、Valve cover |
Forged steel、Stainless steel、Alloy steel |
|
Valve plate |
High chrome stainless steel |
|
Valve seat |
STL Alloy |
|
Filtrating screen |
Stainless steel |
Prime out-form dimensions and weigh
|
Product model |
(DN) Calibre |
L Flange |
L Thread/ welding |
H1 |
H2 |
W |
(kg) weight |
(MPa) Pressure Change range |
(MPa) Nominal pressure |
|
TD42、 TD42F |
15-20 25 |
150 160 |
100 105 |
54 |
64 |
55 |
1.5 |
0.1-4.5 |
6.4 |

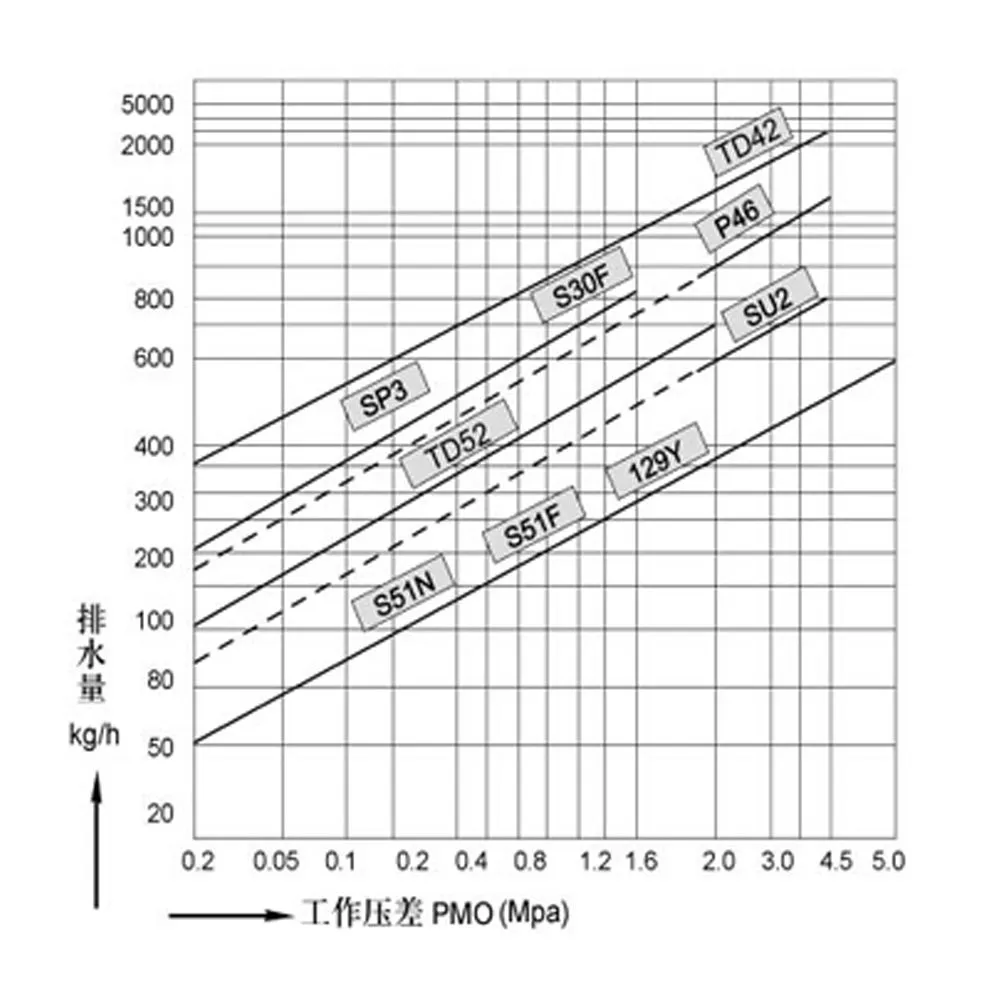

Capacity
