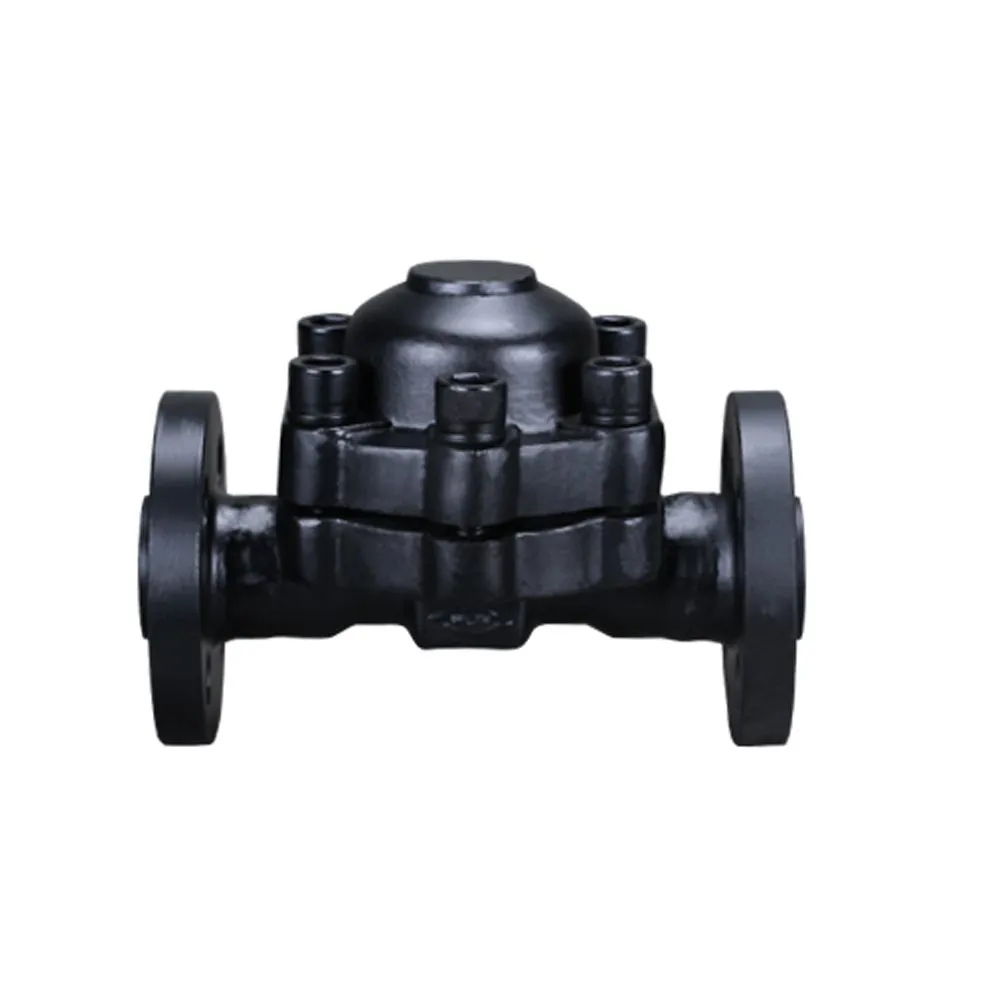

Help CenterWdv BK Series Bimetallic Steam Trap | Durable Thermostatic Steam Trap for Steam Main, Steam Tracing and Industrial Heating Systems
Product Spotlights
Related Products
-
High Performancep Bellows Type Steam Trap Thermostatic Steam Trap for Steam PipelineNegotiableMOQ: 1 Piece -
CA40 PN63 Stainless Steel Thermodynamic Steam Trap Valve 1 Inch Threaded High Pressure Steam DrainerNegotiableMOQ: 1 Piece
-
Thermodynamic Disc Steam Trap Flanged/Thread/Socket WeldNegotiableMOQ: 1 Piece
-
STEAM TRAP DN25/1INCH, THERMODYNAMIC, THREADED TYPE CONNECTION NPT, ASME CLASS 600 PN63/100 Preferred Brand: ARMSTRONGNegotiableMOQ: 1 Piece
-
FQ1steam Trap Flanged Ball Float Steam Valve (FT14-Flange) Steam TrapNegotiableMOQ: 1 Piece
The thermo-sensitive element of bimetallic trap is a bimetallic element cast through a special process by two metals of different expansion ratio.When the bimetallic element expands after heated,different expansion ratio results in bending.The thermo-sensitive element produced on the basis of this quality can act as a switch.Bimetallic Traps are divided into adjustable offline (BK,CS17H and CS47) and online (adjustable bimetallic element TB).
Merits
1.Simple structure,easy to install and maintain,resistant to water hammer and superb emptying performance.
2.Water seal by high-temperature condensate,no leakage of fresh steam (zero leakage).
3.Flexible and noiseless.
4.Water hammer resistance with no effect from abrupt pressure changes.
5.Adoptable for overheat steam system.
6.Adoptable for high-pressure and high-temperature steam pipes.
7.Good air discharge quality with resistance to coldness.
Technique parameter
|
Shell pressure grade |
Load leakage |
Used medium |
Permitted Backpressure rate |
Energy saving effect |
Use superheated steam |
|
1.6、 2.5、 4.0、 6.4、 10MPA |
0% |
Steam、 Condensate water |
≥75% |
Excellence |
Adaption |
|
Maximum operating pressure differential |
Freezing resistance |
Drainage method |
Maximum allowable temperature |
Air exhaust system |
Resis |
10.0MPA |
Excellence |
Continue mode |
420~550℃ |
Automatic |
Adaption |
Prime out-form dimensions and weigh
|
Product model |
(DN) Calibre |
L Flange |
L Thread/ welding |
H1 |
H2 |
W |
(kg) weight |
(MPa) Pressure Change range |
(MPa) Nominal pressure |
|
BK284 BK286 |
15~25 32~50 |
230 250 |
130 |
130 |
25 |
160 |
11/16 |
0.1-10.0 |
10.0 |
The materials of primary accessories
|
Part and component name |
Material |
|
Valve body、Valve cover |
Carbon steel、Alloy steel |
|
Bimetal |
Stainless steel |
|
Valve rod |
Stainless steel |
|
Filtrating screen |
Stainless steel |
