Free Float Steam Trap Stainless Steel Threaded Steam Condensate Drain Valve
Free Float Steam Trap
The free float steam trap automatically discharges condensate as soon as it forms, ensuring maximum thermal efficiency and eliminating steam loss. The precision-ground stainless steel float provides reliable operation under varying load conditions.
Applications:
Heat Exchangers
Steam Tracing Systems
Dryers
Chemical Plants
Food Processing Equipment
Textile Industry
Continuous Condensate Discharge
Discharges condensate continuously without backing up into equipment.
Excellent Air Venting
Built-in thermostatic air vent quickly removes start-up air.
Long Service Life
Hardened stainless steel internal components ensure durability.
Energy Saving
Prevents live steam loss and improves system efficiency.
Water Hammer Resistant
Designed to withstand sudden pressure fluctuations.
Easy Maintenance
Top cover design allows quick inspection and servicing.
How Does a Free Float Steam Trap Work?
The stainless steel float rises and falls according to the condensate level. As condensate enters the trap, the float lifts and opens the valve seat, continuously discharging condensate while preventing steam leakage.

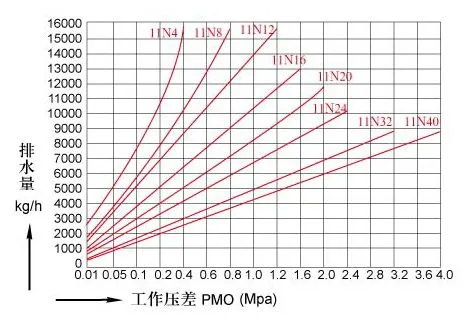

Capacity Chart
Typical Applications
Oil & Gas
Petrochemical
Food & Beverage
Pharmaceutical
Pulp & Paper
Textile
Rubber Industry
Power Plants
Do you need a catalog and a Product Technical Specifications to help you learn more about the steam trap ?
No need to worry—just reply with "1," and I'll send you the information mentioned above.
