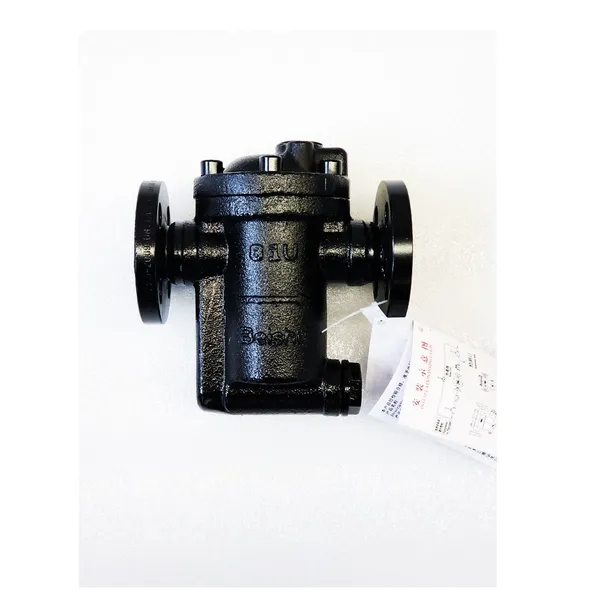

Inverted Bucket Steam Trap | High Pressure Mechanical Steam Trap Manufacturer
Product Overview
The Inverted Bucket Steam Trap is a highly reliable mechanical steam trap designed for efficient condensate removal from steam systems while preventing valuable live steam loss. Utilizing the buoyancy principle of an inverted bucket, this steam trap automatically discharges condensate and non-condensable gases while maintaining excellent steam sealing performance.
Its rugged construction, resistance to water hammer, and long service life make it an ideal choice for demanding industrial applications such as power plants, refineries, petrochemical facilities, pulp and paper mills, and steam distribution systems.
Key Features
Excellent Steam Saving Performance
The inverted bucket mechanism automatically closes when steam enters the trap, effectively preventing live steam leakage and maximizing energy efficiency.
Durable Mechanical Design
Featuring a simple yet robust operating mechanism with few moving parts, the trap delivers dependable performance and extended service life.
Resistant to Water Hammer
Designed to withstand severe water hammer conditions and sudden pressure fluctuations commonly found in industrial steam systems.
Suitable for High Pressure Applications
Capable of operating efficiently in high-pressure and high-temperature steam environments.
Handles Dirt and Scale Effectively
Large internal passages reduce the risk of blockage caused by rust, dirt, and scale particles.
Low Maintenance Requirements
The simple mechanical construction minimizes maintenance costs and downtime.
Long Service Life
Hardened stainless steel internal components provide excellent wear resistance and long-term reliability.

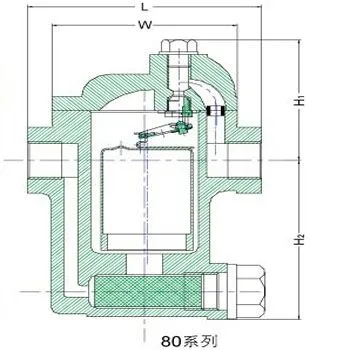

Working Principle
When condensate enters the trap, the inverted bucket loses buoyancy and sinks, opening the valve and allowing condensate to discharge.
As steam enters the bucket, buoyancy increases, causing the bucket to rise and close the valve. This prevents live steam from escaping while maintaining efficient condensate removal.
The continuous cycle of rising and sinking enables automatic operation without external power.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Inverted Bucket Steam Trap |
| Body Material | Cast Iron, Carbon Steel, Stainless Steel |
| Internal Parts | Stainless Steel |
| Connection Type | Threaded, Flanged, Socket Weld |
| Size Range | DN15-DN50 (1/2" - 2") |
| Pressure Rating | PN16, PN25, PN40, Class 150, 300, 600 |
| Maximum Temperature | Up to 425°C |
| Applicable Medium | Saturated Steam, Condensate |
| Installation Position | Horizontal |
Typical Applications
Steam Distribution Lines
Used for draining condensate from steam mains while preventing steam loss.
Heat Exchangers
Maintains high heat transfer efficiency by continuously removing condensate.
Petrochemical Plants
Suitable for harsh industrial environments requiring reliable condensate discharge.
Power Generation Facilities
Widely used in steam turbine auxiliary systems and steam pipelines.
Pulp and Paper Industry
Provides reliable operation in high-pressure steam applications.
Refineries
Ideal for steam tracing systems and process heating equipment.
Advantages Over Other Steam Trap Types
| Feature | Inverted Bucket Trap | Thermodynamic Trap | Float Trap |
| Water Hammer Resistance | Excellent | Good | Moderate |
| High Pressure Capability | Excellent | Excellent | Good |
| Dirt Handling Ability | Excellent | Moderate | Moderate |
| Steam Sealing | Excellent | Good | Excellent |
| Maintenance Requirement | Low | Low | Moderate |
| Service Life | Long | Long | Long |
Quality Assurance
Every steam trap undergoes strict quality inspections before shipment, including:
✓ Shell Pressure Test
✓ Leakage Test
✓ Dimensional Inspection
✓ Material Verification
✓ Operational Performance Test
Available certificates:
ISO 9001
Material Test Certificate (EN 10204 3.1)
Pressure Test Report
Third-Party Inspection (SGS, BV, TUV)
Why Choose Us
Professional Steam Trap Manufacturer
Competitive Factory Direct Pricing
OEM & ODM Services Available
Fast Delivery Worldwide
Strict Quality Control System
Technical Selection Support
Export Experience in Global Markets
Frequently Asked Questions
What is the main advantage of an inverted bucket steam trap?
Its excellent durability, high-pressure capability, and resistance to water hammer make it one of the most reliable mechanical steam traps available.
Where is an inverted bucket steam trap commonly used?
It is widely used in steam mains, power plants, petrochemical facilities, refineries, and industrial process heating systems.
Can it operate under high-pressure conditions?
Yes. Inverted bucket steam traps are particularly suitable for high-pressure and high-temperature steam applications.
How often should maintenance be performed?
Under normal operating conditions, only periodic inspection is required due to its simple and durable design.
Request a Free Quote
Looking for a reliable Inverted Bucket Steam Trap supplier?
Contact our technical team today for pricing, datasheets, sizing assistance, and customized solutions for your steam system.
