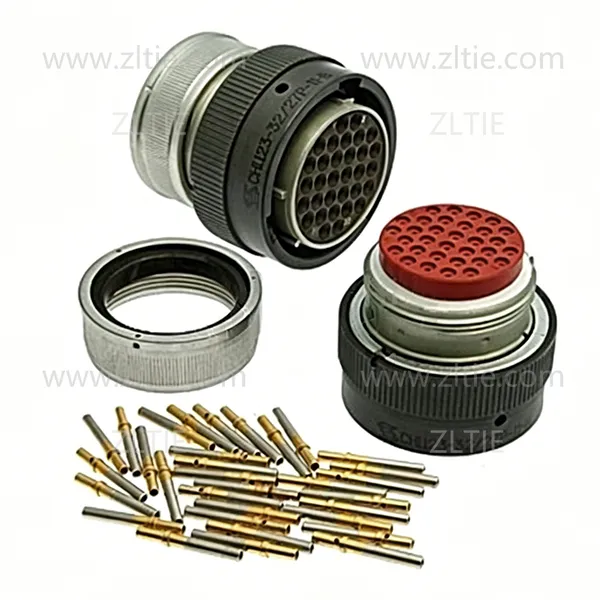

Help CenterZH23 Series Shell Size 27 32 Pin Female Plug With Simple Tail Attachment – СНЦ23-32/27Р-11-В ZH23-32/27P-11-B
Related Products
-
2PM-18 Series 7Pin Male Straight Cable Plug Unshielded – 2РМТ18КПН7Ш1В1В 2PM18J7QB2NegotiableMOQ: 200 Units -
2PM-18 Series 4Pin Female Panel Socket – 2РМДТ18Б4Г1В1ВNegotiableMOQ: 200 Units
-
2PM-22 Series 4Pin Male Panel Socket With Gold Plated Pin – 2РМТ22Б4Ш3А1В 2PM22J4Z1NegotiableMOQ: 200 Units
-
ZH127 Series Connector Shell Size 10 4pin Male Flange Socket Solder – СНЦ127-4/10ВП127-1-В ZH127-4/10B12Z-1-BNegotiableMOQ: 200 Units
-
FQ14 Series 2-Pin Square Flange Male SocketNegotiableMOQ: 200 Units
Product Details:
ZH23 series bayonet connectors have the characteristics of environmental resistance, five-button positioning, anti-insertion, and bayonet quick connection.
Used in low frequency AC and DC circuits. It can be matched and interchanged with the Russian connector СНЦ23 series.
ATTRIBUTES:
Connector Type: Plug
Contact Type: Female
Number of Positions: 32 Pin
Orientation: Straight
Shell Size: 27
Fastening Type: Bayonet Connection
Contact Material: Copper Alloy Gold
Insulating Materials: PPS
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Operating Temperature: -60℃ – +200℃
Vibration: Acceleration 40g (1-5000HZ)
Impact: Acceleration 500g (Once); 150g (Multiple Times)
Salt Spray Resistance: 96h
Relative Humidity: 40℃-65℃ 95%-98%
Insulation Impedance: ≥5000MQ
Mechanical and Working Life: 500 Cycles
