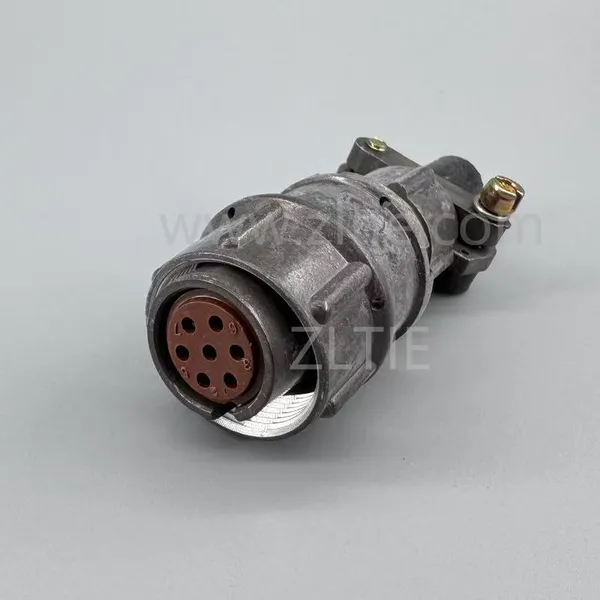

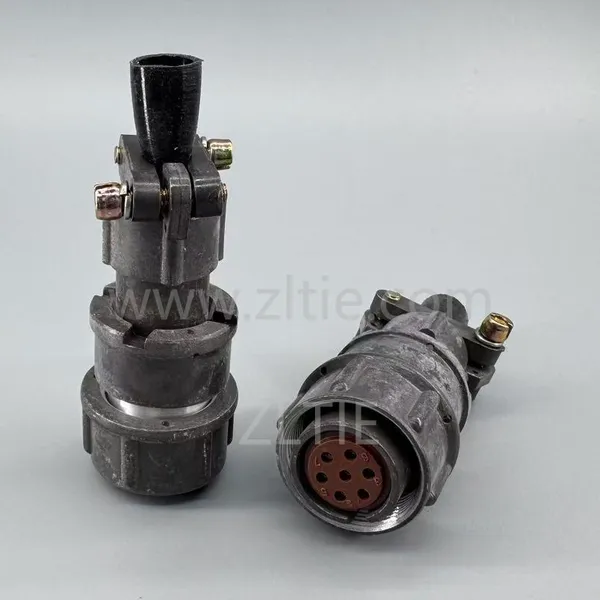

Help Center2PM-18 Series 7Pin Male Straight Cable Plug Unshielded – 2РМТ18КПН7Ш1В1В 2PM18J7QB2
Related Products
-
2PM-18 Series 4Pin Female Panel Socket – 2РМДТ18Б4Г1В1ВNegotiableMOQ: 200 Units -
2PM-22 Series 4Pin Male Panel Socket With Gold Plated Pin – 2РМТ22Б4Ш3А1В 2PM22J4Z1NegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Bayonet Ultra-small Connector Shell Size 12 7 Pin Female Plug With Tail Attachment (Optional)-ОНЦ-БС-1-7/12-P12-1-BNegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Male Socket-ОНЦ-БС-1-4/10-B1-1-BNegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Female Plug With Tail Attachment (Optional)-ОНЦ-БС-1-4/10-P12-1-B OHS-BC-1-4/10-P12-1-BNegotiableMOQ: 200 Units
Product Details:
2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.
ATTRIBUTES:
Connector Type: Plug
Shell Size: 18
Orientation: Straight
Number of Positions: 7 Pin
Contact Size:Φ1.0
Shell Material: Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
Contact Finish: Silver/Gold
Fastening Type: Threaded
Rated Current: 5A
Rated Voltage: ≤700V (AC)
Operating Temperature: -60℃ – +200℃
Insulation Resistance: Normal ≥1000MΩ Moistheat ≥20MΩ
Contact Resistance: 0.8-5MΩ
