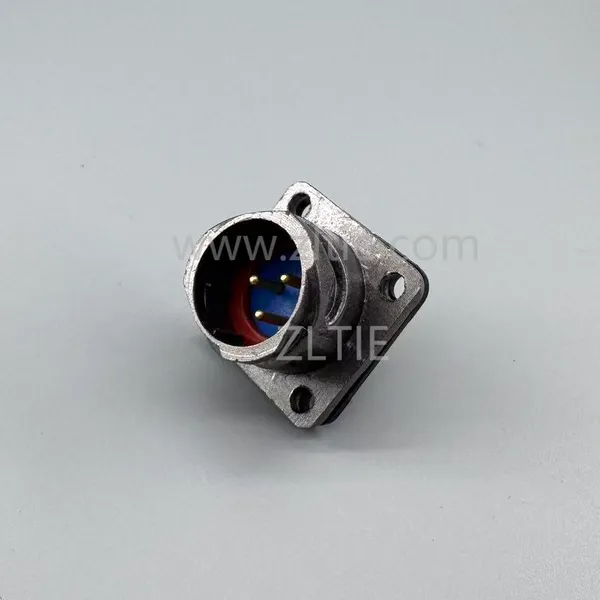

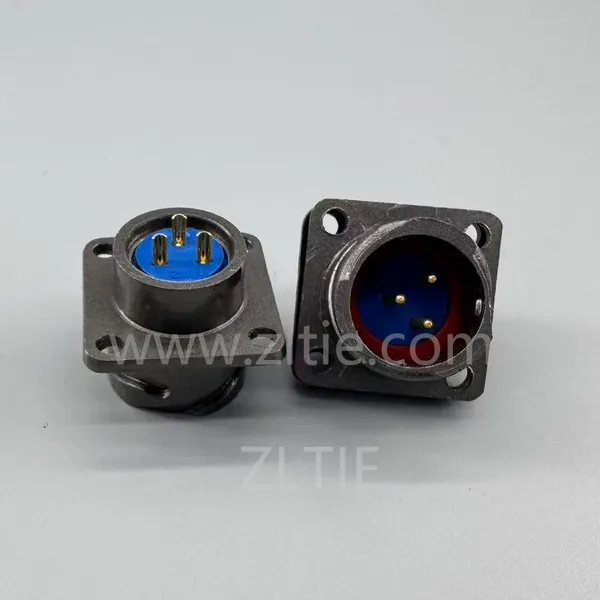

Help CenterFQ18 Series 3-Pin Square Flange Male Socket FQ18-3ZJ
Related Products
-
2PM-22 Series 10 Pin Female Angled Cable Plug Unshielded 2РМТ22КУН10Г1В1В 2PM22K10WB2NegotiableMOQ: 200 Units -
ОНЦ-БС-1(2) Series Bayonet Ultra-small Connector Shell Size 12 7 Pin Female Plug With Tail Attachment (Optional)-ОНЦ-БС-1-7/12-P12-1-BNegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Male Socket-ОНЦ-БС-1-4/10-B1-1-BNegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Female Plug With Tail Attachment (Optional)-ОНЦ-БС-1-4/10-P12-1-B OHS-BC-1-4/10-P12-1-BNegotiableMOQ: 200 Units
-
2PM-22 Series 4Pin Female Straight Cable Plug Unshielded – 2РМТ22КПН4Г3В1ВNegotiableMOQ: 200 Units
Product Details:
FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.
The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.
ATTRIBUTES:
Connector Type: Socket
Shell Size: 18
Contact Size: 3*1.5m
Nummber of Positions: 3 Pin
Connection Method: Bayonet Connection
Terminal Method: Solder
Rated Current: 10A
Contact Resistance: ≤2.5MΩ
Rated Voltage: 400V
Material of Contacts: Copper with Gold Plated
Copper with Gold Plated: PBT
Shell Material: Aluminum Alloy Surface Anodizing Treatment
Ambient Temperature: -55°C~+100°C
Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%
Atmospheric: 1Kpa
Vibration: 10 ~ 200Hz, 150M/S²
IP Rating: IP67
Life Duration: 500 Cycles
