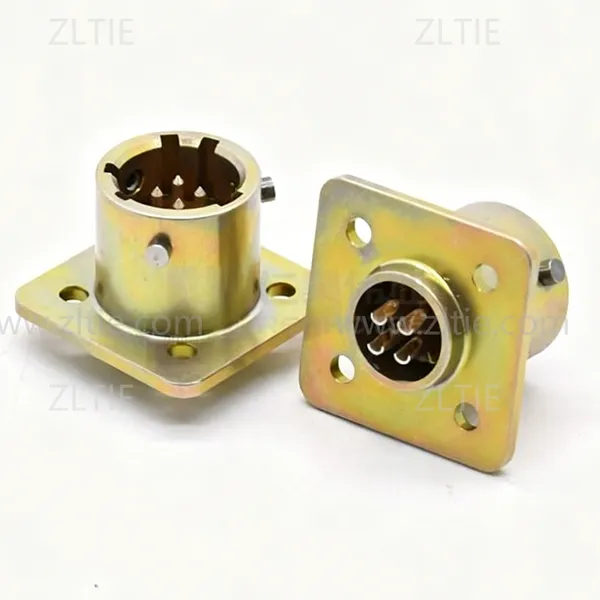

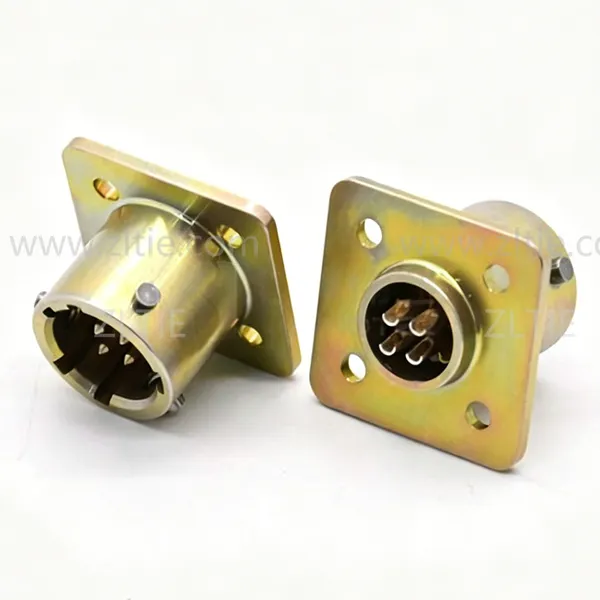

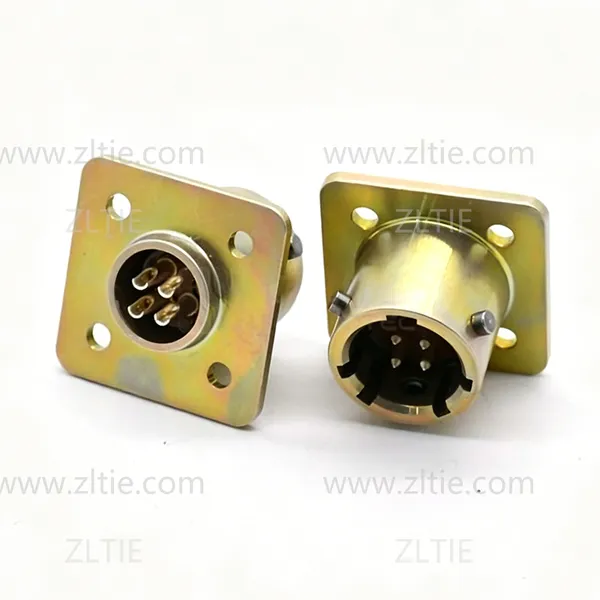

Help CenterZH127 Series Connector Shell Size 10 4pin Male Flange Socket Solder – СНЦ127-4/10ВП127-1-В ZH127-4/10B12Z-1-B
Related Products
-
FQ14 Series 2-Pin Square Flange Male SocketNegotiableMOQ: 200 Units -
FQ18 Series 3-Pin Square Flange Male Socket FQ18-3ZJNegotiableMOQ: 200 Units
-
2PM-22 Series 10 Pin Female Angled Cable Plug Unshielded 2РМТ22КУН10Г1В1В 2PM22K10WB2NegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Bayonet Ultra-small Connector Shell Size 12 7 Pin Female Plug With Tail Attachment (Optional)-ОНЦ-БС-1-7/12-P12-1-BNegotiableMOQ: 200 Units
-
ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Male Socket-ОНЦ-БС-1-4/10-B1-1-BNegotiableMOQ: 200 Units
Product Details:
ZH127 series bayonet connectors mainly adopt Russian connector technology. It is engineered for reliable performance in both DC and AC circuits, supporting frequencies up to 3 MHz and voltages up to 700 V (amplitude). It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The Socket without tail attachment and the Plug with metal tail attachment.This type of connectors are widely used in low-frequency electronic systems, including a large number of electrical equipment.
ZH127 are interchangeable & intermateable with connectors of OHS-BC, Ohs-BC, ONTs-BS, ONTs-BS, SNTs127, SNC127.
ATTRIBUTES:
Connector Type: Socket
Contact Material: Gold/Silver plating
Contact Type: Male
Fastening Type: Bayonet Connection
Termination: Solder
Mounting Type: Panel Mount
Insulating Materials: Bakelite
Insulation Impedance: ≥5000MΩ
Mechanical and Working Life: 500 Cycles
Number of Positions: 4
Operating Temperature: -60 ℃ ～ +105 ℃
Orientation: Straight
Shell Material: Aluminum Alloy
Shell Size: 10
Vibration: 1-5000Hz 20g
Contact Dia.: Ø 1.0 mm
Operating Current: 3.7A
Operating Voltage: 250V
Contact Resistance: ≤5MΩ
