I. Basic Information

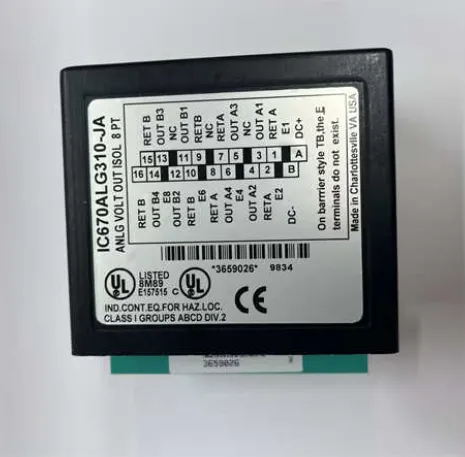

Model: IC670ALG310-JA is an 8-channel group-isolated analog voltage AO output module belonging to the GE Fanuc VersaMax/Field Control series. It works in conjunction with IC670PBI001 (Profibus‑DP) / IC670GBI (Genius) bus base units. As a dedicated spare part for analog closed-loop control of remote I/O substations and core board for regulating valve/actuator driving in thermal power and chemical DCS systems, it enables 24/7 uninterrupted operation inside control cabinets.
Product Positioning: An 8-channel single-ended voltage-type AO module adopting a 2×4-channel grouped galvanic isolation architecture. It converts digital signals from PLC into standard industrial voltage signals to drive electric regulating valves, servo actuators and variable-frequency drives. It is an essential drop-in replacement spare for analog output renovation on legacy unit remote I/O systems and compatible with both Genius bus and Profibus‑DP distributed I/O architectures.
Brand: GE Fanuc (GE Vernova / Emerson) | Origin: USA
Type: 8-Channel Isolated Analog Voltage Output Module (Suffix JA denotes original production batch revision)
Compatibility: Fits full-series IC670 BIU bus bases (PBI001/GBI001); communicates with GE RX3i, Series 90‑30 and Series 90‑70 master PLCs. Its sibling model ALG320 is current-type AO and cannot be directly interchanged.
Mounting: DIN35 rail installation via cascading onto VersaMax base units, stacked with PBI001/GBI001 for network configuration
Net Weight: Approx. 0.34kg; Dimension: 149.2×44.45×115.6mm; Protection Class: IP20 (cabinet-mounted only)
Front Panel Layout: Individual status LED for each of 8 channels plus detachable spring-clamp terminal blocks; no hardware DIP switches (range configuration realized via software programming)
II. Technical Specifications
(1) Electrical Output Specifications
Output Configuration: 8 single-ended voltage outputs split into Group A (CH1~CH4) and Group B (CH5~CH8) with galvanic isolation between the two groups; fault on one group will not impact the four channels of the other group.
Software-Selectable Ranges: Dual configurable ranges of 0~+10VDC / -10V~+10VDC; maximum over-range output approx.10.25V, supporting redundant control for full-open/full-close valve travel.
D/A Conversion: High-precision 14-bit DAC with full-scale accuracy ≤±0.1% FS and low temperature drift design, optimized for continuous PID closed-loop regulation.
Load Requirement: Minimum load impedance ≥1kΩ per channel for voltage-type loads; direct short-circuit of output terminals is prohibited.
Power Supply: Powered by 6.5VDC backplane from BIU base with typical backplane current draw of 170mA; external 24VDC auxiliary power feeds field actuator circuits (the module draws no 24V power).
Isolation Rating: 500VAC dielectric isolation between channel groups; opto-isolation between field side and backplane logic side to prevent surge damage spreading to the whole substation I/O.
(2) Communication & Configuration Specifications
Bus Interface: Data upload/download via Genius or Profibus‑DP through base unit; each module occupies 8 analog output registers inside the PLC.
Calibration: Channel span coefficients and zero-offset parameters are stored in onboard non-volatile FLASH memory to retain settings after power loss; single-point on-site calibration is available via GE HHP handheld programmer.
Fault Reporting: Alarms including over-range, under-range, load short-circuit and module drift are packaged and uploaded to the master PLC.
(3) Environmental Specifications
Operating Temperature: 0℃～+60℃ for permanent in-cabinet operation
Storage Temperature: -40℃～+85℃ for warehousing and long-distance transportation
Humidity: 5%～95% RH non-condensing; compliant with IEC61000 EMC standards to resist VFD harmonics, dust, oil mist and excitation interference in power plant environments.
III. Key Features
Dual-group Four-channel Isolation for Zoned Fault Protection
Eight channels are divided into two independent isolated segments. Short-circuit or overvoltage on one group only disables the affected section while the remaining four channels keep steady regulation to avoid unexpected shutdown of critical process loops.
Software Flexible Switchover Between Two Voltage Ranges
One-click range switching between 0~10V and ±10V via upper-level programming to match single-acting regulating valves and double-acting servo actuators respectively, without hardware replacement or field wiring modification.
14-bit High Resolution for Precision PID Closed-loop Control
High-accuracy D/A output enables multi-loop closed-loop regulation for temperature, pressure and flow parameters with precise fine stroke control of control valves, widely used for steam turbine governing valves in thermal plants and liquid level control valves in chemical distillation processes.
Full-channel Self-diagnosis plus On-panel LED Local Indication
Corresponding channel LED lights up for short-circuit or over-range faults with fault codes synchronously displayed on upper HMI, enabling fast faulty loop localization and improved maintenance efficiency.
Full Suffix Pin Compatibility for Wiring-free Replacement
Suffix JA stands for production batch. All ALG310 variants share identical terminal and backplane definitions; defective modules can be hot-swapped directly while original field cabling remains unchanged.
Dual-base Compatibility for Flexible Retrofit Options
Pair with IC670GBI for legacy Genius-bus systems or with IC670PBI001 for new Profibus‑DP renovation projects while preserving existing field wiring.
IV. Working Principle
Power-on Initialization: BIU base energizes to supply regulated backplane power; ALG310 completes self-test of DAC chips and channel circuits and loads stored calibration parameters from onboard FLASH.
Bus Data Reception: Cyclically receives digital setpoint values from master PLC via Profibus‑DP/Genius bus and stores data into internal module registers.
D/A Conversion: The 14-bit DAC converts digital values into corresponding standard voltage signals output via terminals to drive field valve actuators.
Real-time Loop Monitoring: Continuously monitors output load conditions; locks faulty channel instantly and sends fault messages once short-circuit or over-range occurs.
Isolated Fault Containment: Faulty group is electrically cut off while the intact isolated group maintains normal regulation output.
V. Application Scenarios
(1) Remote I/O for Auxiliary Control of Thermal & Gas Turbine Units
Voltage-driven control for boiler forced-draft dampers, induced-draft fan hydraulic actuators, ACC cooling water regulating valves and steam turbine auxiliary governing valves deployed in centralized DP remote substations.
(2) SIS and Auxiliary Control for Petrochemical & Coal-Chemical Plants
Opening regulation of distillation column level control valves, furnace fuel gas modulating valves and tank farm emergency shutoff valves, applicable to Class I Div.2 hazardous-area explosion-proof cabinets.
(3) Retrofit Replacement for Obsolete GE Control Systems
Upgrade of original Genius-bus I/O cabinets to Profibus‑DP for interconnection with Siemens DCS; only PBI001+ALG310 combination is replaced with original field valve wiring retained.
(4) Captive Power Plants for Metallurgy & Water Treatment Industries
Analog output control for sinter furnace temperature control valves, pump station VFD speed setpoints and aeration valve stroke adjustment in biochemical pools.
