Slope Angle Monitoring Sensor Inclinometer For Embankment

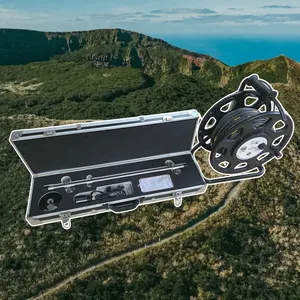

Slope Angle Monitoring Sensor Inclinometer For Embankment thumbnail-1
Slope Angle Monitoring Sensor Inclinometer For Embankment thumbnail-2
Slope Angle Monitoring Sensor Inclinometer For Embankment photo-1

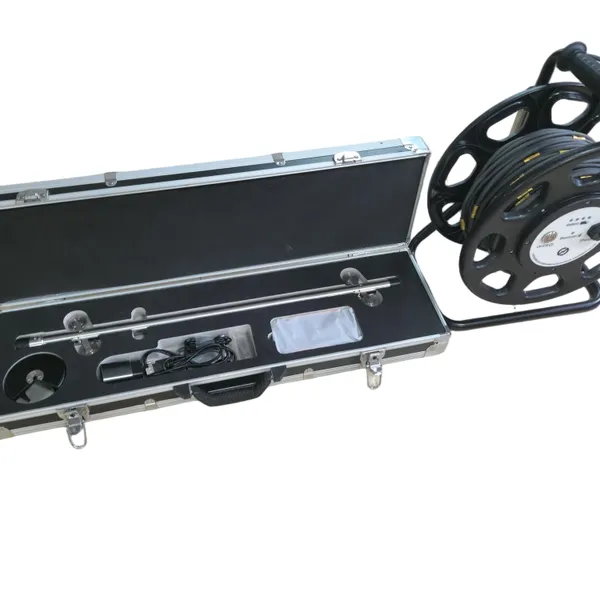

Slope Angle Monitoring Sensor Inclinometer For Embankment photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Horizontal Line:
Other, Other
Vertical Lines:
Other, Other
Accuracy:
Other, Other
Contact Supplier Request Quote Chat Now
Chongqing Gold Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Horizontal Line Other, Other
Vertical Lines Other, Other
Accuracy Other, Other
Application Foundation Pit Inclinometer Borehole Survey
.Inclination Range -30° ~ 30°
Measuring Axis 2
.Inclination Resolution ±0.025mm/500mm
Usage Foundation Pit Inclinometer Borehole Survey
After-sales Service Provide
Warranty 1 Year
Transport Package Wooden Case
Specification 1 set
Trademark Gold
Origin China

Need slope displacement data now? Grab the GDY-1 Digital Slope Inclinometer. No complicated setup. No fragile parts. Just full attitude measurements in seconds.

Three core advantages:

  1. Full attitude sensing – Measures X tilt, Y tilt, and rotation angle. You get the complete 3D movement vector, not just a single slope reading.

  2. High precision – 0.001 degree resolution, +/- 0.01 degree accuracy. Detects millimeter-scale ground movement.

  3. Field ready – IP67 waterproof, -20C to +65C operation, 48-hour battery life.


What you can monitor:

  • Highway and railway embankments

  • Landslide zones and unstable hillsides

  • Tailings dams and earthfill structures

  • Deep excavation walls

  • Foundation settlements


How it works:
Lower the probe into standard inclinometer casing. Read tilt angles at each depth (cable marked every 0.5 m). Record automatically or manually. Transfer data via USB or Bluetooth. Analyze trends with free software.


Key numbers – no story, just data.

+-----------------------+-------------------------------------------------+

| Feature               | GDY-1 Specification                             |

+-----------------------+-------------------------------------------------+

| Axes measured         | X, Y, Z (full attitude)                         |

| Max tilt              | +/- 30 deg (up to +/- 90 deg optional)          |

| Resolution            | 0.001 deg                                       |

| Accuracy              | +/- 0.01 deg                                    |

| Repeatability         | +/- 0.005 deg                                   |

| Sensor type           | MEMS (solid state, no moving parts)             |

| Temp compensation     | Automatic, -20C to +65C                         |

| Memory capacity       | 10,000 readings                                 |

| Logging modes         | Manual, interval (1s to 24h), threshold trigger |

| Data output           | USB-C, Bluetooth 5.0                            |

| Display               | Backlit LCD, 2.4 inch                           |

| Battery               | 2600 mAh Li-ion                                 |

| Active runtime        | 48 hours                                        |

| Sleep mode runtime    | 30 days (1 reading per hour)                    |

| Waterproof rating     | IP67 (probe and handheld)                       |

| Operating temp        | -20C to +65C                                    |

| Storage temp          | -30C to +80C                                    |

| Probe diameter        | 32 mm                                           |

| Probe length          | 280 mm (340 mm with wheels)                     |

| Probe weight          | 1.2 kg                                          |

| Cable lengths         | 30 m / 50 m / 100 m                             |

| Cable markings        | Every 0.5 m                                     |

| Guide wheel span      | 66 mm (adjustable)                              |

| Compatible casing ID  | 25 mm to 85 mm                                  |

| PC software           | GDY-Logger (Windows)                            |

| Mobile app            | Android via Bluetooth                           |

| Power supply          | USB-C charging (5V, 1A)                         |

| Charging time         | 4 hours                                         |

| Warranty              | 2 years                                         |

+-----------------------+-------------------------------------------------+


**Why choose this over others?**

- **No recurring costs** – free software, no subscription fees.

- **No field calibration** for two years under normal use.

- **Works with existing casings** – no need to re-drill boreholes.

- **Real-time alerts** if you enable Bluetooth streaming.


**In short:** The GDY-1 gives you **professional-grade slope inclinometer performance** at a fraction of the complexity. Whether you are a solo geotech consultant or a mining safety team, this tool delivers **reliable, repeatable, and actionable data** from day one.


Get the GDY-1. Measure your slope. Stay safe.
