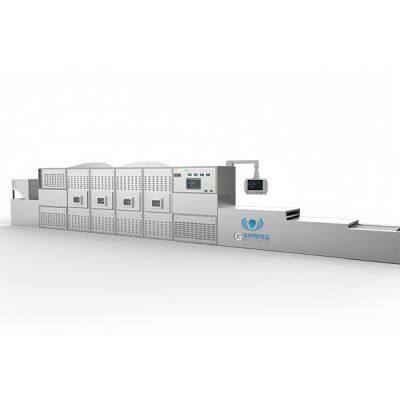

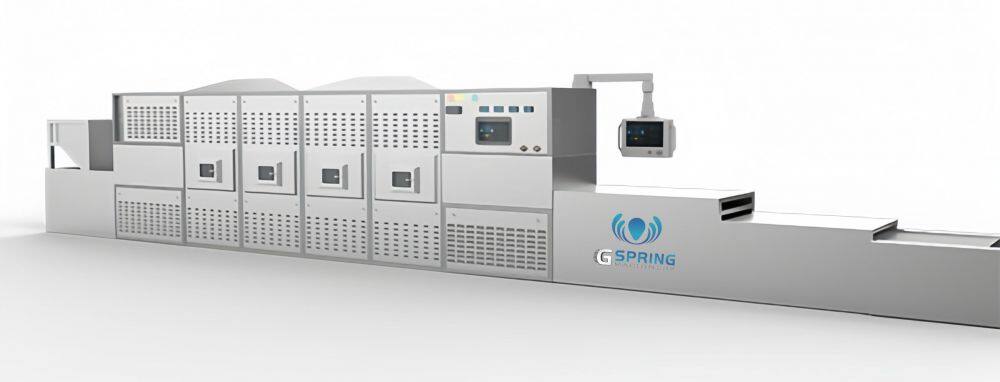

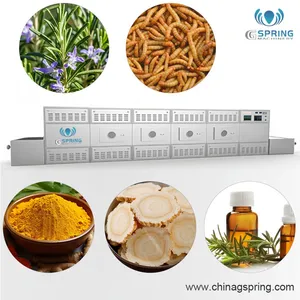

High Quality Tunnel Industrial Microwave Oven Machine For Herbs and Pharmaceutical Industry
Microwave Oven for Drying Herbs & Pharmaceutical Applications – Industrial-Grade Drying Solutions
Efficient Microwave Drying for Herbs & Pharmaceutical Products
Looking for a fast, precise, and contamination-free drying solution for herbs, medicinal plants, and pharmaceutical ingredients? Our industrial microwave
drying oven offers uniform heating, moisture control, and energy efficiency, making it ideal for herb processing, nutraceuticals, and pharmaceutical manufacturing.
Why Use Microwave Drying for Herbs & Pharma Products?
✅ Preserves Active Compounds – Unlike conventional hot-air drying, microwave drying prevents degradation of heat-sensitive compounds (essential oils,
flavonoids, alkaloids).
✅ Faster Drying Time – Reduces drying time by 50-70% compared to traditional methods, increasing production efficiency.
✅ Low-Temperature Drying –Customer also can adopt vacuum microwave oven to dry some heat-sensitive product & expensive product. Gentle heat prevents
overheating and nutrient loss, ensuring high-quality dried herbs.
✅ Uniform Moisture Removal – Eliminates uneven drying and mold growth, improving shelf life.
✅ Hygienic & Contamination-Free – Stainless steel construction & closed-system drying prevent contamination (critical for GMP compliance).
Microwave Machine Advantage in Herbs Pharma Industry
Drying herbs in a microwave oven is a quick and efficient method to preserve their flavors and extend their shelf life;
1. Microwave energy can evaporate water rapidly, drying fast, high efficiency, low cost;
2. Drying herbs in microwave machine compared to other traditional drying , can preserve the color, flavors & nutrition; which is also applicated
in Spices industry;
3. Microwave drying herbs also can kill inside insect eggs & bacteria which can extend herbs shelf life; or sterilize the herbs.
Herbs Pharma Microwave Machine Application
1.Drying kinds of herbs in microwave, it can dry fast, but preserve their flavor, nutrition such as Parsley, rosemary, cilantro, oregano, sage, thyme etc.

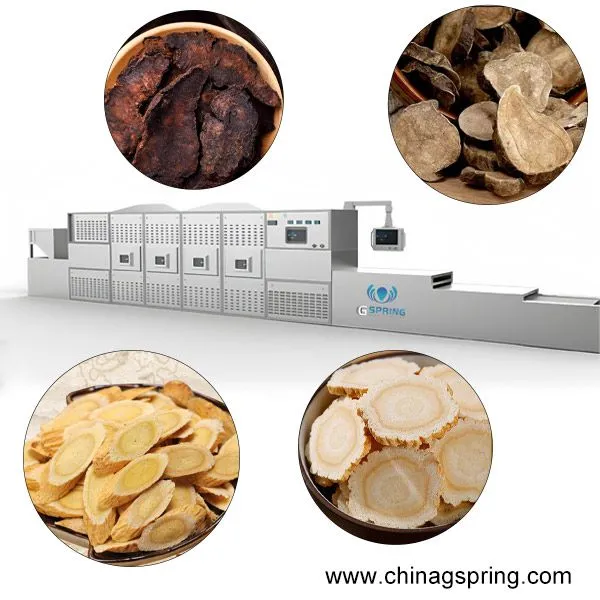

2.Drying kind of herbal slices, 50% faster than normal heating, such as Astragalus, angelica, ginseng, aconite, habitat etc.
3.Drying kinds of insects, which can be used in pharma industry, such as Tenebrio molitor, barley pest, hermetia illucens.
4.Sterilize Pharma liquid, especially liquid type medicine.
Technical Specifications
Machine Model |
GS-20HMV |
GS-40HMV |
GS-60HMV |
GS-100HMV |
GS-200HMV |
Work Frequency |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
2450±50MHZ |
Rated Apparent Power |
≤25KW |
≤50KW |
≤75KW |
≤120KW |
≤240KW |
Output Power |
≥20KW |
≥40KW |
≥60KW |
≥100KW |
≥200KW |
Dehydration Capacity |
16-20kg/hour |
30-40kg/hour |
48-60kg/hour |
80-100kg/hour |
160-200kg/hour |
Work Process Temperature |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
70-200℃ |
Cooling Type |
Water Cool/Air Cool |
Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool | Water Cool/Air Cool |
Work Time |
24h Continuously Work |
24h Continuously Work | 24h Continuously Work | 24h Continuously Work | 24h Continuously Work |
Operation |
PLC & Touch Screen |
PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Feeding Inlet Height |
40-100mm |
40-100mm | 40-100mm | 40-100mm | 40-100mm |
Belt Height |
60-1000mm |
60-1000mm | 60-1000mm | 60-1000mm | 60-1000mm |
Belt Running Speed |
0-4.5m/min or Customized |
0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized | 0-4.5m/min or Customized |
Belt Width |
500±100mm |
800±100mm |
800±100mm |
1000±100mm |
1200±100mm |
Belt Material |
Teflon Material or Customized |
Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized | Teflon Material or Customized |
Size |
8640×1220×2200mm |
10960×1500×2200mm |
13200×1500×2200mm |
15600×1700×2200mm |
22560×1900×2200mm |
Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request.
China Gspring Machinery are the manufactuer of Industrial Microwave Dryer, we can supply different kinds of microwave drying machine, like batch
microwave oven for lab use or for small capacity industrial use, industrial automatic tunnel mircrowave dryer, vaccum dryer specially for food & pharma
industry etc. We havemore than 10 years experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam,
Indonesia, Pakistan,Philippines, Brazil, Egypt, Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We are the professional supplier for high quality industrial microwave oven if any questions about the machine, pls email
grace@chinagspring.com
