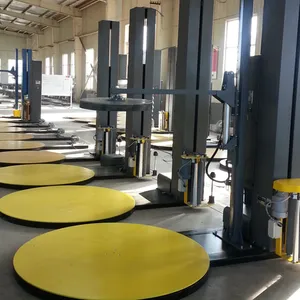

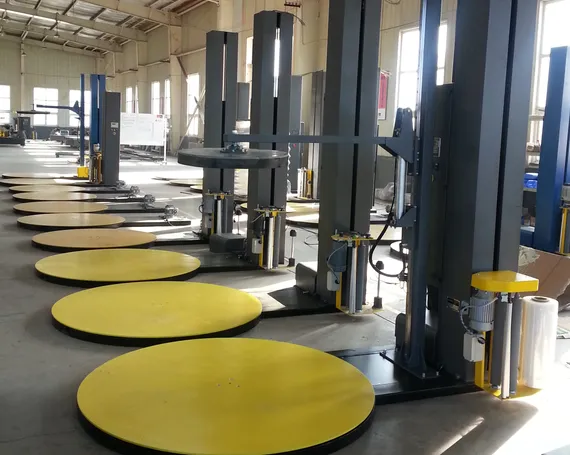

Help CenterSupply Zhitu Machinery T1650fz Fully Automatic Pallet Wrapping Machine, Supporting Non-standard Customization
Related Products
-
Zhitu Machinery Supplies Non-metallic Flexible Material Zt2516 Fully Automatic Packaging Box Die-cutting MachineUS$ 661.54 - 692.31MOQ: 1 Unit -
Zhitu Machinery Supplies Non-standard Large-tonnage 200mpa Engineering Ultra-high Pressure Cylinders With Various Connection Methods and Can Process According to Samples.US$ 446.15 - 492.31MOQ: 1 Set
-
Zhitu Machinery Supplies Large-tonnage Hydraulic Cylinders for Engineering and 2000t Ultra-high Pressure Hydraulic Cylinders Specially Used for Industrial MachineryUS$ 646.15 - 676.92MOQ: 1 Set
-
Jinan Zhitu Supplies 6m Non-standard Long-shaft Welding Roller Frames, Customized and Produced According to the Workpiece ShapeUS$ 415.38 - 430.77MOQ: 1 Set
-
Zhitu Machinery Supplies 1-ton, 3-ton, and 20-ton Frequency Conversion Remote Control Welding Roller Frames in Xinjiang RegionUS$ 846.15 - 861.54MOQ: 1 Set
TP1650FZ Fully Automatic Pallet Wrapping MachineIt doesn't require manual film tying. After the wrapping is finished, the machine can automatically complete the processes of film cutting and film smoothing. It is a packaging equipment with a higher degree of automation than automatic wrapping machines. The wrapping machine can automatically complete the set functions, automatically sense the height of the goods and has a photoelectric shielding function. The turntable can automatically reset, and the automatic film up-and-down mechanism allows the same roll of film to be used. You only need to place the goods and start the machine without tying the film, which not only saves time but also labor, greatly improving work efficiency.
· Lifting column: Double-chain structure, and the lifting speed can be adjusted respectively by frequency conversion
· Film rack system: T1650FZ fully automatic wrapping machine pre-stretch film rack, with a pre-stretch of up to 300%, automatic film feeding, and DC speed control system
· Control system: PLC programmable control, automatically complete the set functions of the machine, automatically sense the height of the goods and have a photoelectric shielding function, and the turntable automatically resets; it has a manual enhanced wrapping function, and you can set the number of top/bottom wrapping turns, up-and-down times, enhanced turns, and over-top time; it comes with a remote control device, which makes this wrapping machine easy to operate and improves efficiency
Technical parameters
Product name/Specification |
T1650FZ Fully Automatic Pallet Wrapping Machine |
Wrapping specification |
(800-1100)×(800-1200)mm |
Packaging height |
L type: 2100mm H type: 2400mm Y type: 2800mm |
Packaging efficiency |
30 - 50 pallets/hour |
Turntable speed |
0 - 12rpm, the rotation speed is adjustable by frequency conversion, and the turntable starts and stops slowly |
Turntable size |
Diameter: 1650mm Height: 78mm |
Turntable load-bearing capacity |
2000kg |
Film rack system |
Pre-stretched film rack, the pre-stretch can reach 300%, automatic film feeding, DC speed control system |
Lifting column |
Double-chain structure, the lifting speed is adjustable by frequency conversion |
Control system |
PLC control, the number of winding layers and times are adjustable, and the over-top height is adjustable; Automatically sense the height of the goods, wind and reinforce, and the turntable automatically resets; Comes with a remote control device |
Occupied space during operation |
2545×2100mm |
Automatic film loading and cutting mechanism |
Pneumatic control, automatic film loading, film cutting, and film smoothing |
Working pressure |
0.4-0.6Mpa |
Total weight of the machine |
800kg |
Overall dimensions |
2545×1650×2270mm |
Power/Voltage |
Turntable 0.75KW, Film rack 0.35KW, Column 0.37KW/220V |
