VTC800 Detailed English Description (No Chinese Characters)
1. Machine Overview

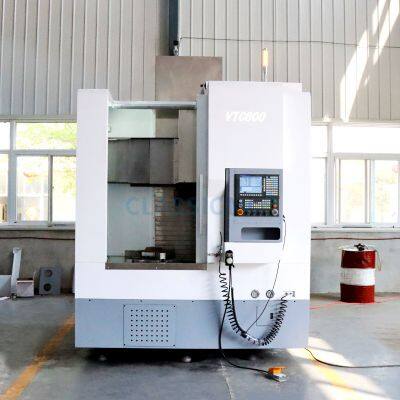

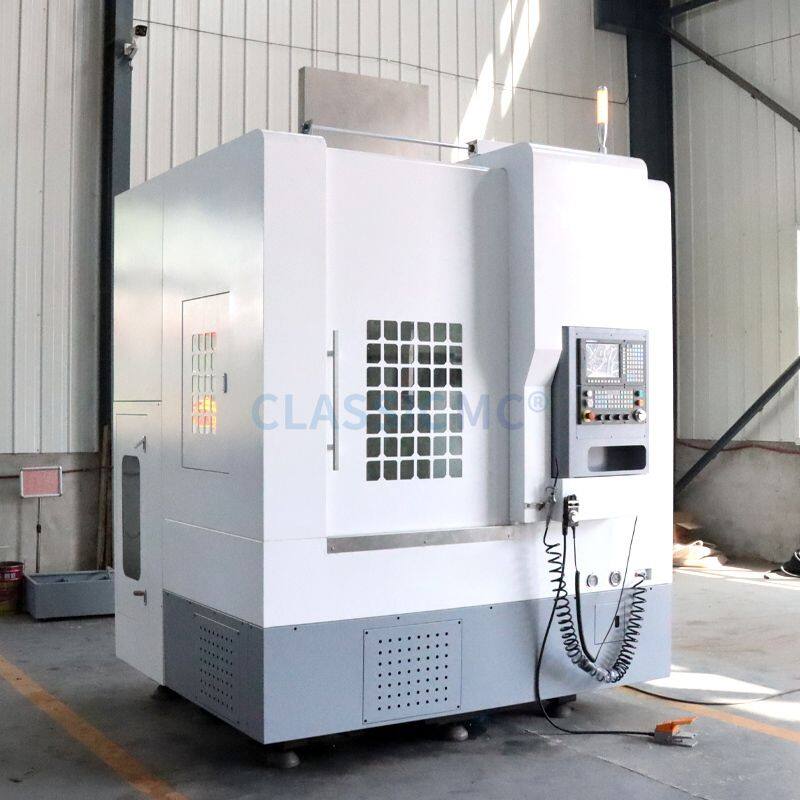

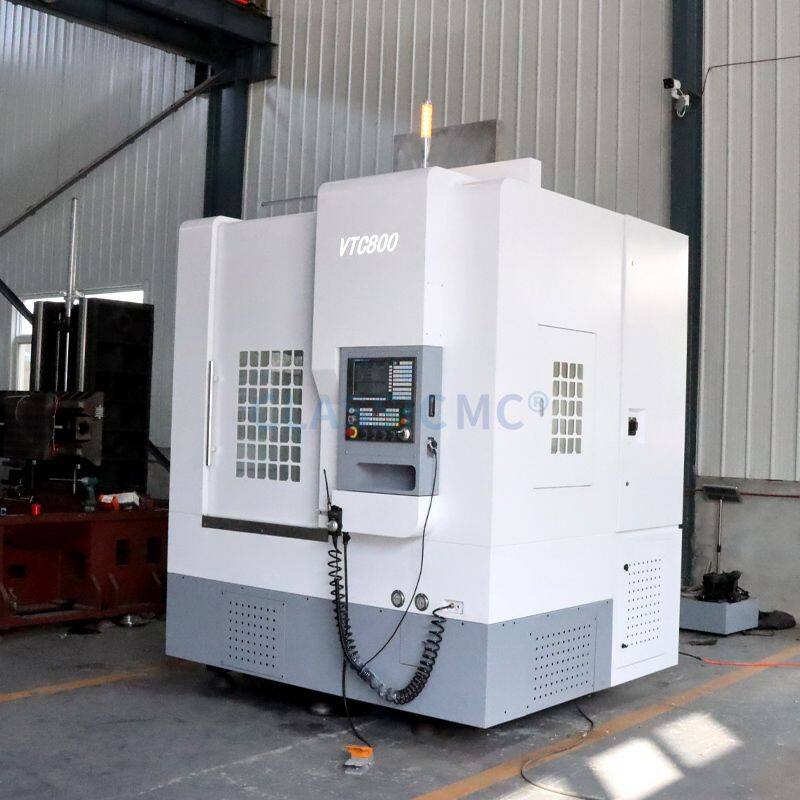

VTC800 is a heavy-duty vertical CNC machining center with high precision and high efficiency. It adopts one-piece heavy cast iron structure, featuring excellent rigidity, shock resistance and durable service life. This machine is capable of milling, drilling, boring, tapping and complex contour machining. It is widely used in mold manufacturing, automotive industry, aerospace, hardware processing and mechanical engineering for batch production of metal precision components.
2. Main Structural Features
Cast Iron Body: The whole machine body is made of high-grade cast iron. All linear guideways undergo high-frequency quenching and precision grinding with hardness reaching HRC52-58. It effectively reduces deformation and maintains long-term machining stability.
High Rigidity Spindle: Equipped with high-precision bearing groups, the BT40 spindle adopts belt drive structure with strong torque. It runs smoothly at high speed, realizing stable heavy cutting and excellent surface finish for metal workpieces.
High-performance Servo System: X, Y, Z three axes are equipped with original AC servo motors and high-precision ball screws. The transmission is stable and responsive, ensuring outstanding positioning accuracy and repeated positioning accuracy.

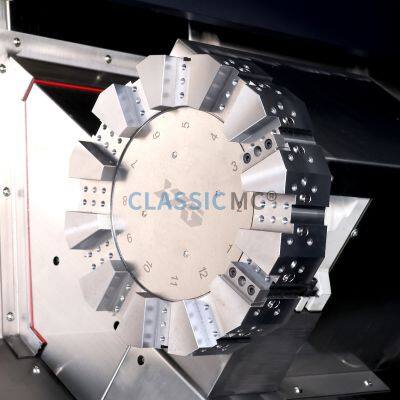

Automatic Tool Magazine: Standard 16-station disc type tool magazine with fast tool changing speed. Fully enclosed metal protective cover prevents coolant splash and metal dust contamination, meeting industrial safety production standards.
3. Technical Parameters
Item |
Specification |
Table Size |
1000×500mm |
X/Y/Z Axis Travel |
800/500/550mm |
Spindle Taper |
BT40 |
Spindle Speed Range |
0-8000r/min |
Main Motor Power |
11kW |
Rapid Feed Speed (X/Y/Z) |
48/48/40m/min |
Cutting Feed Speed |
1-10000mm/min |
Tool Magazine Capacity |
16PCS |
Positioning Accuracy |
≤0.01mm |
Repeat Positioning Accuracy |
≤0.005mm |
4. CNC Control System

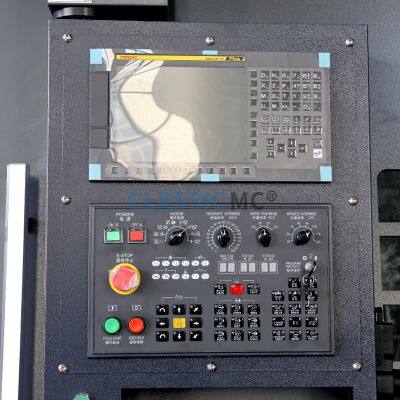

This vertical machining center supports multiple optional control systems, including GSK, Siemens 828D, FANUC 0i-MF and Mitsubishi system. It realizes three-axis linkage, automatic tool change, rigid tapping, high-speed milling and various fixed machining cycles. The intuitive human-computer interaction interface is easy to operate, suitable for complex precision machining requirements.
5. Standard Configuration
16-station disc tool magazine BT40 High-power Spindle Coolant circulation system Automatic centralized lubrication system Fully enclosed protective cover Manual handwheel controller
6. Optional Accessories
4th rotary axis Oil mist purifier Automatic chip conveyor High-pressure coolant device Explosion-proof industrial lamp Tool setting instrument
7. Product Advantages
Strong heavy cutting capability Thickened cast iron body for high rigidity Precise and stable long-term performance Fast automatic tool changing Low failure rate and easy maintenance High cost performance for industrial production
