VTC630 Detailed English Description (No Chinese Characters)

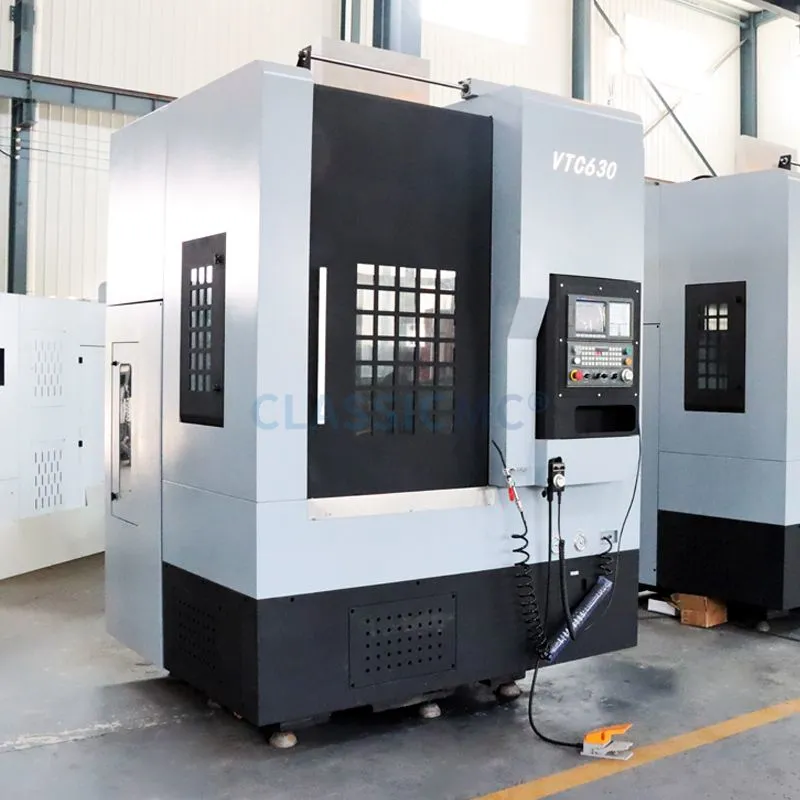

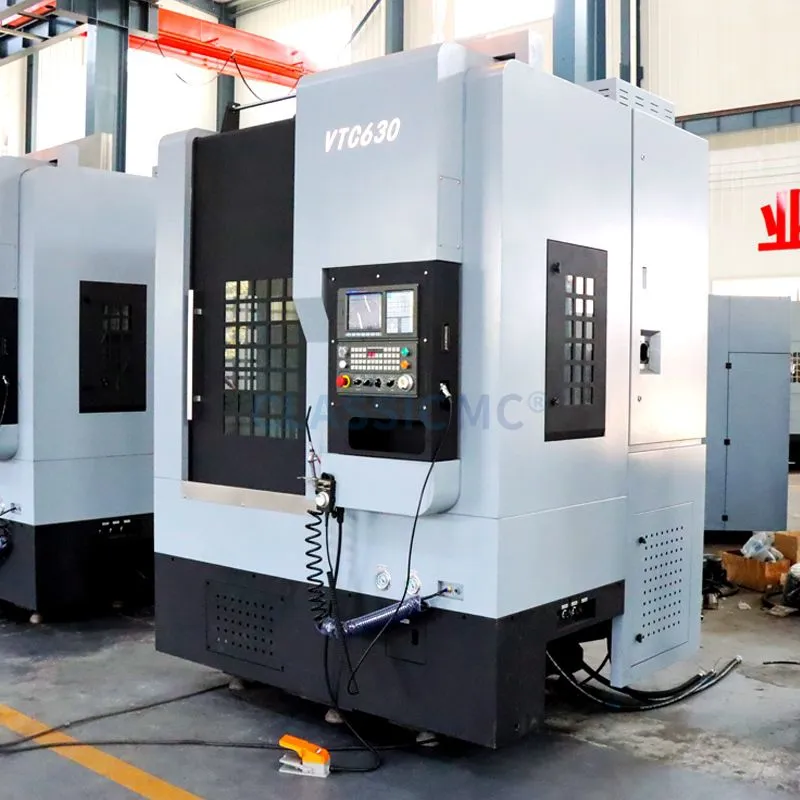

1. Machine Overview
VTC630 is a high-precision vertical CNC machining center. It adopts heavy-duty integral cast iron body, featuring high rigidity, excellent vibration resistance and long service life. This machine is widely applied for milling, drilling, tapping, boring and contour processing on metal workpieces. It is suitable for processing precision mold parts, aluminum alloy components, mechanical accessories and complex workpieces in automotive, electronics, mold and general machinery industries.
2. Main Structural Features
Cast Iron Body: The machine body is made of high-quality cast iron. All guideways are processed by high-frequency quenching and precision grinding, with hardness up to HRC52-58. It is wear-resistant and ensures long-term machining accuracy.
High Rigidity Spindle: Equipped with high-precision spindle bearings, the spindle adopts direct drive structure. It provides high rotating speed, low noise and stable rotation during heavy milling. Spindle taper is BT40 for universal tool clamping.
Servo Drive System: X-axis, Y-axis and Z-axis are driven by high-performance AC servo motors. The feeding motion is smooth, positioning accuracy is high, and repeated positioning error is extremely low.
Reliable Tool Magazine & Protection: Standard equipped with 12-station disc type tool magazine. The machine adopts fully enclosed protective cover to prevent coolant splashing and metal dust pollution.
3. Technical Parameters
Item |
Specification |
|---|---|
Table Size |
800×320mm |
X/Y/Z Axis Travel |
630/350/450mm |
Spindle Taper |
BT40 |
Spindle Speed Range |
0-8000r/min |
Main Motor Power |
7.5kW |
Rapid Feed Speed (X/Y/Z) |
48/48/40m/min |
Cutting Feed Speed |
1-10000mm/min |
Tool Magazine Capacity |
12PCS |
Positioning Accuracy |
≤0.01mm |
Repeat Positioning Accuracy |
≤0.005mm |
4. CNC Control System
This machining center can be equipped with multiple optional systems, including GSK, Siemens 828D, FANUC 0i-MF and Mitsubishi system. It supports three-axis linkage, high-speed milling, automatic tool changing, rigid tapping and multi-function canned cycles. The operation interface is simple and friendly, suitable for various precision metal milling processing requirements.
5. Standard Configuration

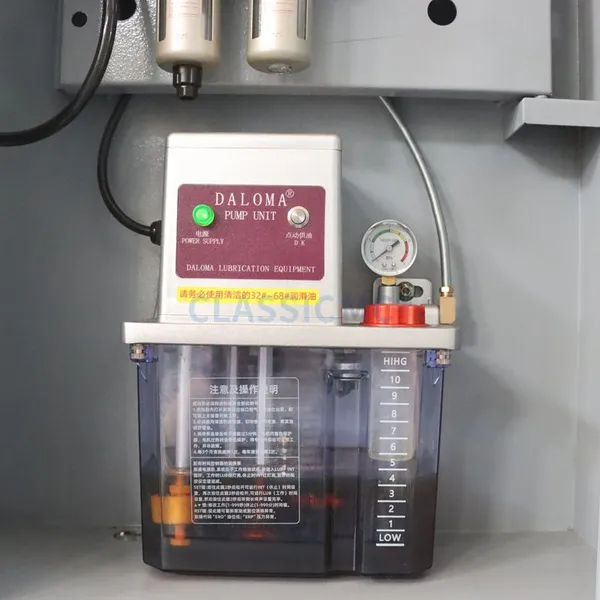

12-station disc tool magazine BT40 Spindle Coolant circulation system Automatic lubrication system Fully enclosed protective cover Handwheel manual controller
6. Optional Accessories

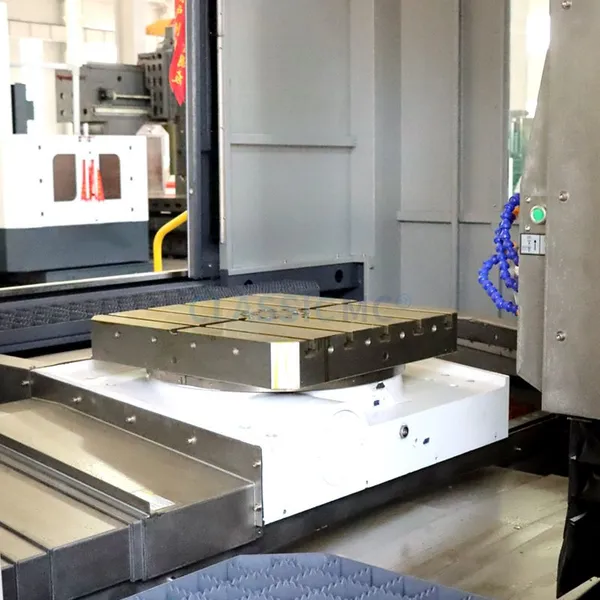

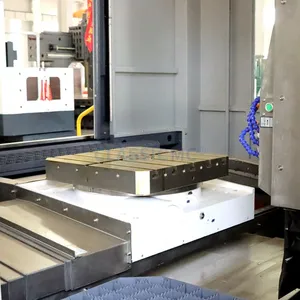

Rotary 4th axis Oil mist collector Chip conveyor High pressure coolant system Explosion-proof lighting lamp
7. Product Advantages
Strong metal milling cutting capacity High rigidity integral cast iron structure High precision and stable performance Fast tool changing efficiency Simple operation and easy maintenance Cost-effective for precision batch production
