CK6163 CNC Lathe Detailed English Description
1. Machine Overview

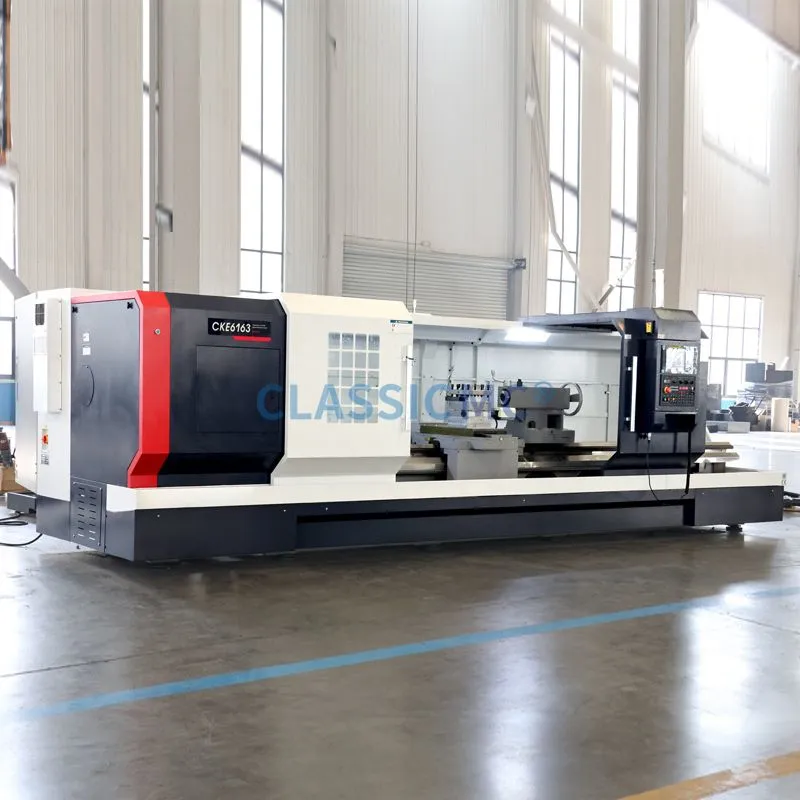

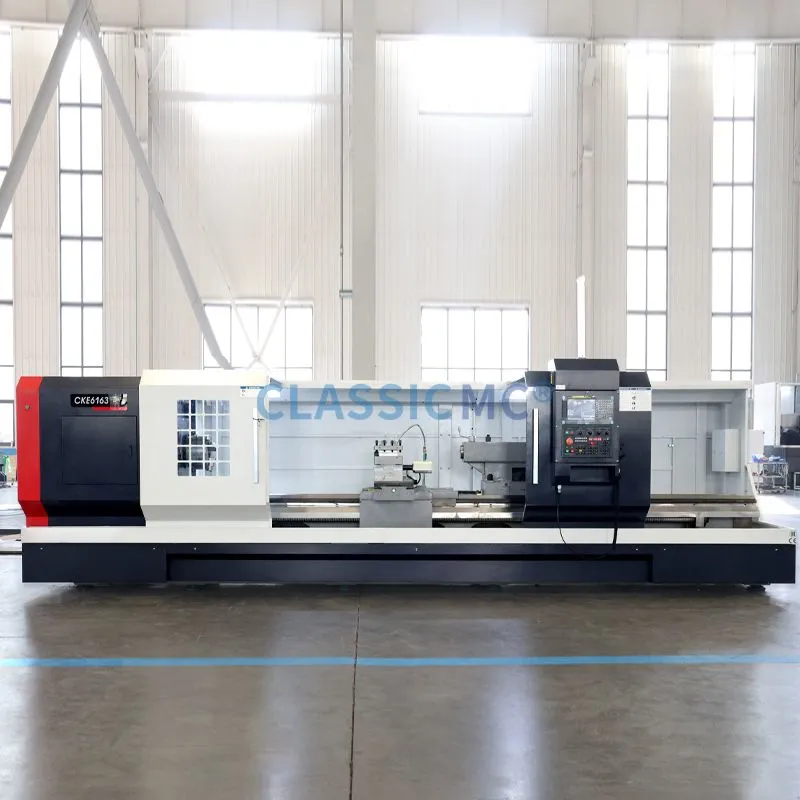

CK6163 is a heavy-duty horizontal flat bed CNC lathe. It adopts integral high-strength cast iron bed, featuring high rigidity, stable vibration resistance and long service life. This machine is widely applied for turning cylindrical, tapered, arc and thread surfaces on metal workpieces. It is suitable for processing shaft parts, disc parts and heavy-duty mechanical components in petroleum, mining, automobile and general machinery industries.
2. Main Structural Features
Cast Iron Bed: The machine bed is made of high-quality cast iron. The guideway is processed by high-frequency quenching and precision grinding, with hardness up to HRC52-58. It is wear-resistant and ensures long-term machining accuracy.
High Rigidity Spindle: Equipped with high-precision spindle bearing, the spindle adopts gear shifting speed regulation. It provides strong torsion and stable rotation during heavy cutting. Spindle bore is optional with 100mm or 105mm.
Servo Drive System: X-axis and Z-axis are driven by AC servo motors. The feeding motion is smooth, positioning accuracy is high, and repeated positioning error is low.
Reliable Tool Post & Tailstock: Standard equipped with electric 4-station tool post. The tailstock is manually controlled with thickened quill, which can bear heavy workpiece pressure and ensure processing stability.
3. Technical Parameters
Item |
Specification |
|---|---|
Max Swing Diameter Over Bed |
630mm |
Max Swing Diameter Over Saddle |
340mm |
Max Workpiece Length |
1000mm / 1500mm / 2000mm / 3000mm |
Spindle Bore |
100mm (Optional 105mm) |
Spindle Speed Range |
0-1600r/min |
Main Motor Power |
11kW |
X-axis Travel |
370mm |
Z-axis Travel |
1000-3000mm |
Rapid Feed Speed (X/Z) |
6m/min / 8m/min |
Positioning Accuracy |
≤0.01mm |
Repeat Positioning Accuracy |
≤0.015mm |
4. CNC Control System
This lathe can be equipped with multiple optional systems, including GSK980TDc, Siemens 808D, FANUC 0i-TF and Mitsubishi system. It supports two-axis linkage, automatic cycle processing, thread cutting, constant surface speed control and tool compensation function. The operation interface is simple and friendly, suitable for various metal turning processing requirements.
5. Standard Configuration

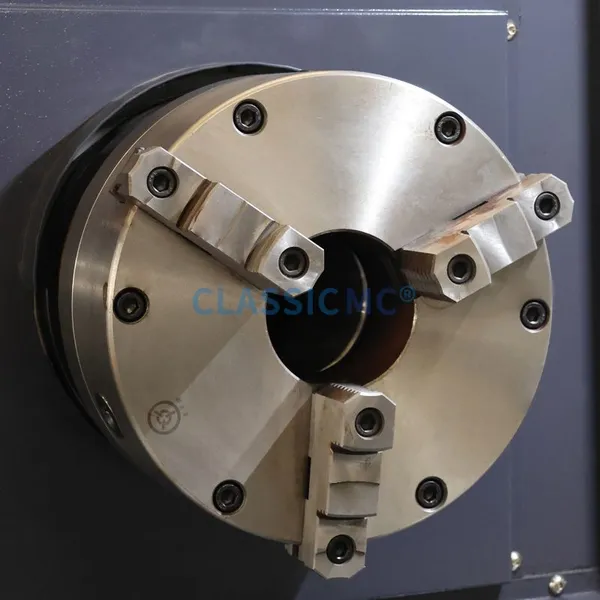

3-jaw self-centering chuck

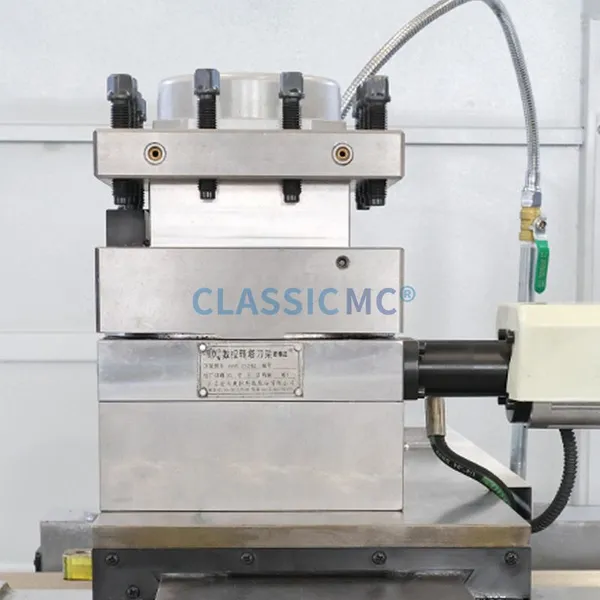

4-station electric tool post
Manual tailstock
Coolant circulation system
Automatic lubrication system
Full protective cover
6. Optional Accessories
Hydraulic chuck
Hydraulic tailstock
6-station or 8-station tool post
Chip conveyor
Foot pedal switch
7. Product Advantages
Heavy load cutting capacity, strong cutting power
High rigidity integral cast iron bed structure
Stable precision and low failure rate
Simple operation and easy maintenance
Cost-effective and suitable for industrial mass production
