1. Standard core dimensions
Inner diameter d: 235 mm
Outer diameter D: 350 mm
Inner ring width B: 120 mm
Outer ring width C: 66 mm
Weight: approximately 34.5 kg
Cage: M = High-strength brass solid cage

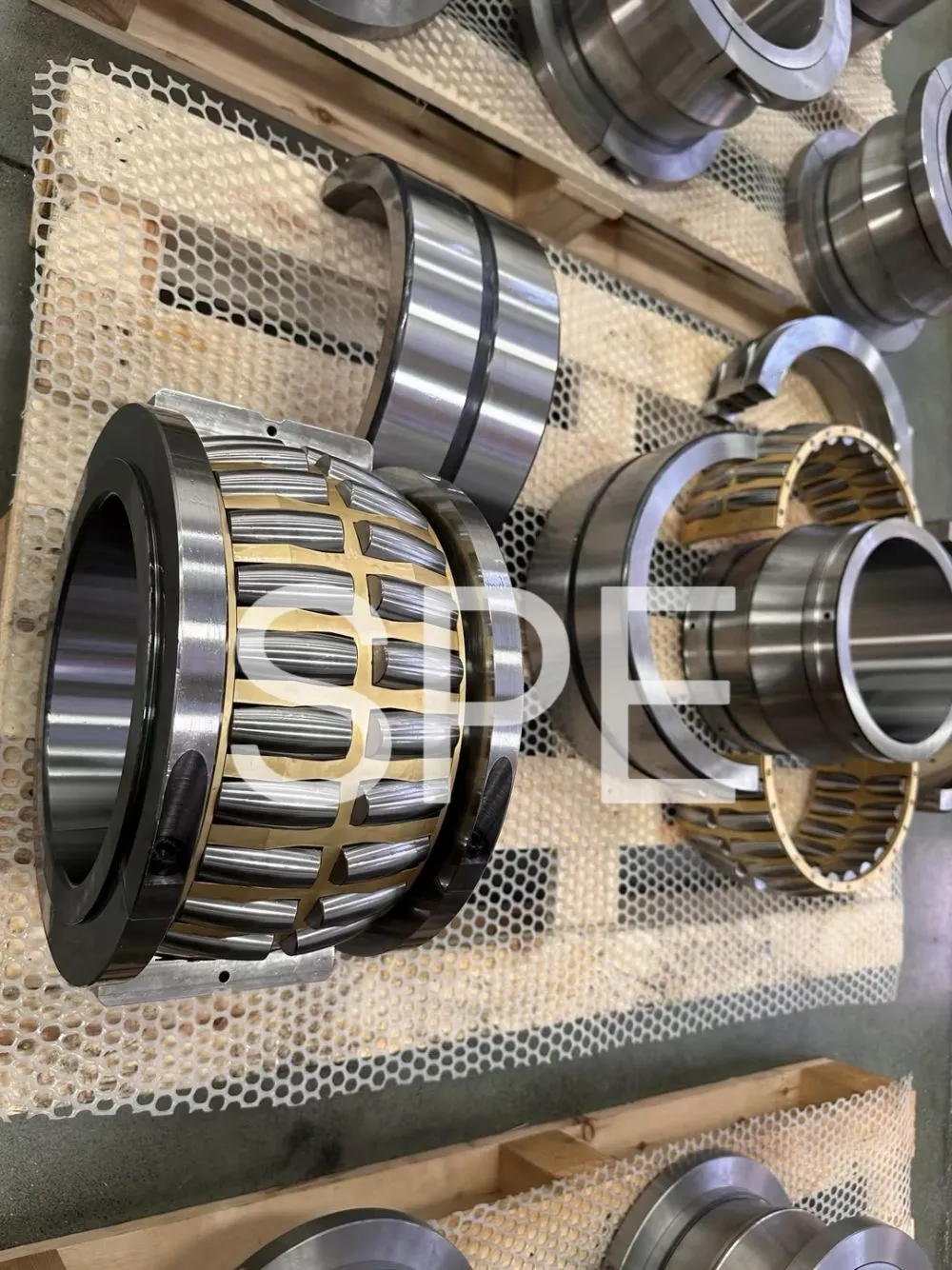

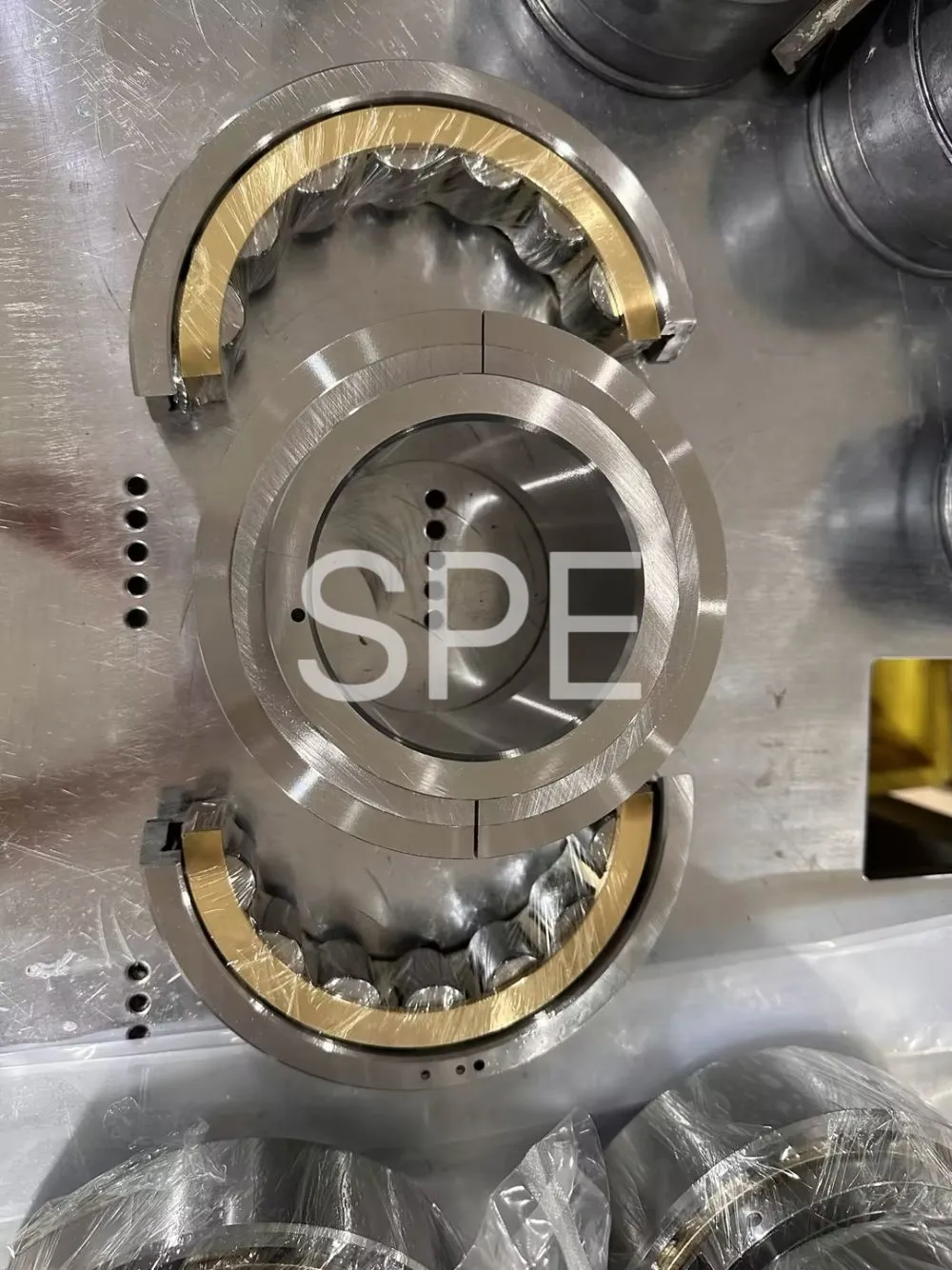

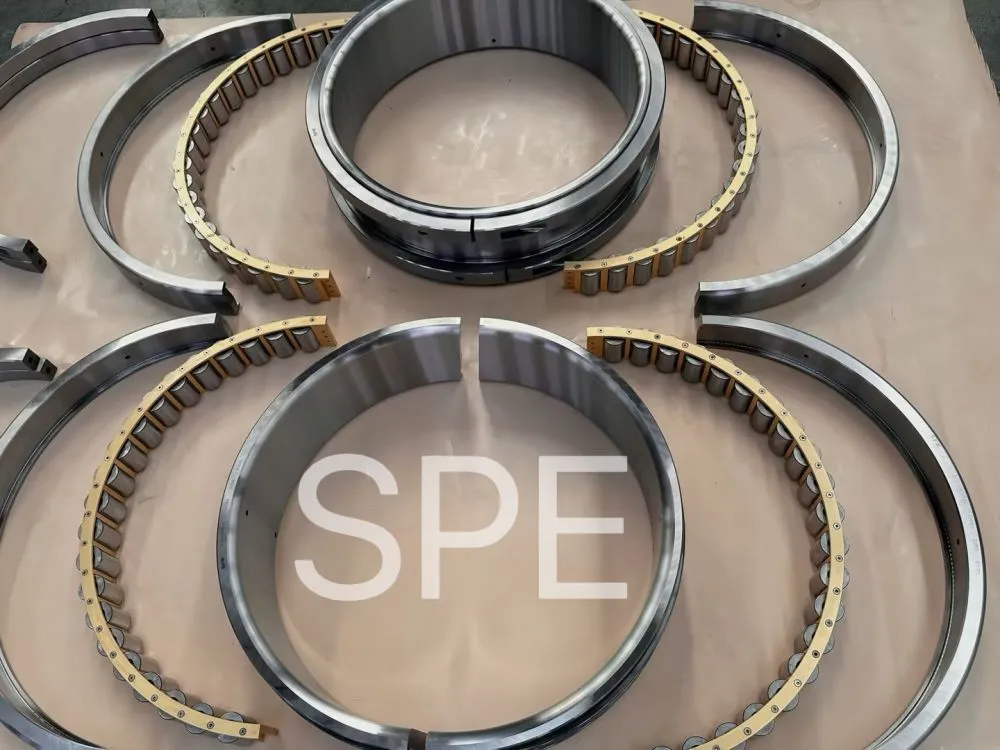

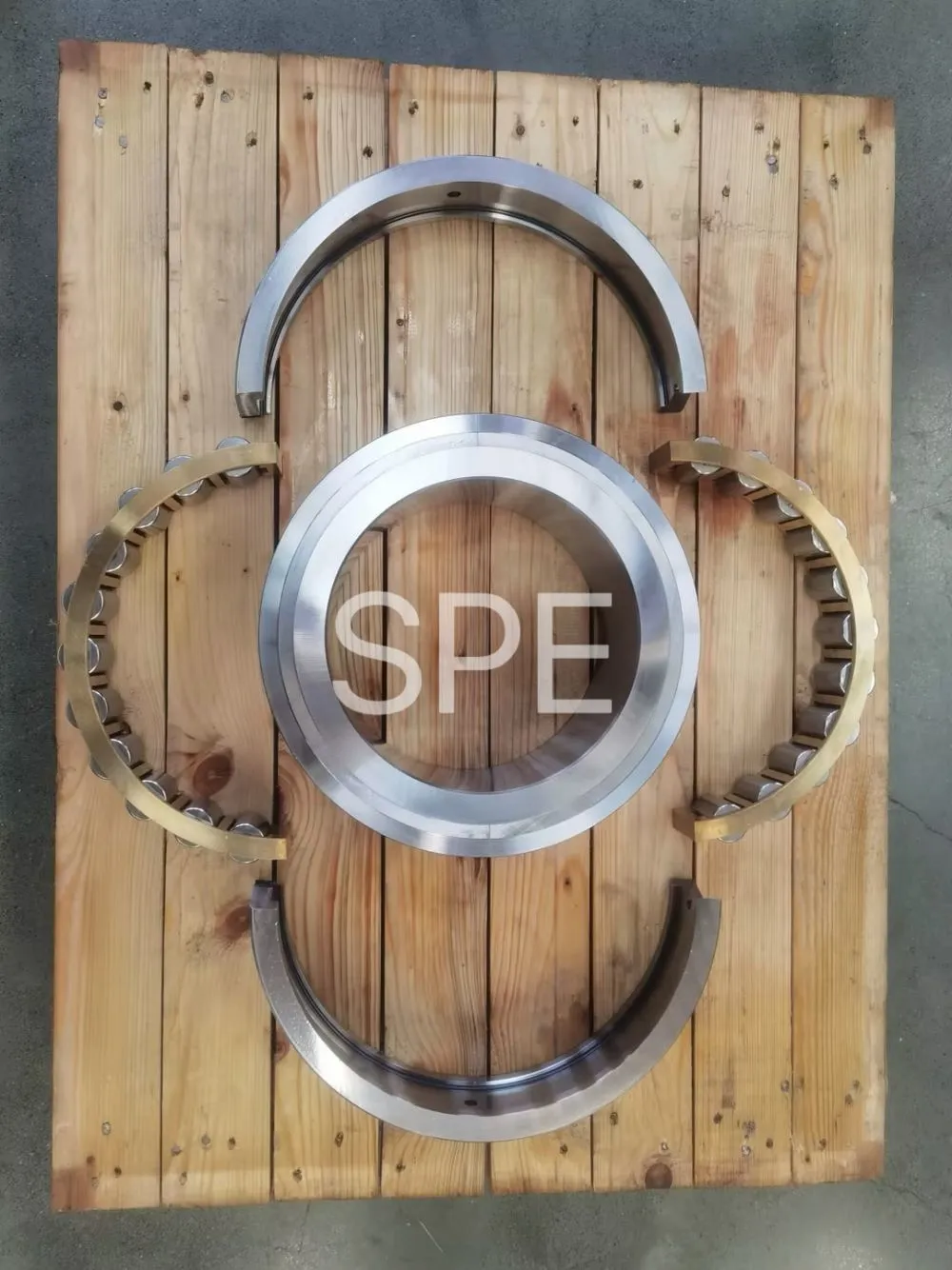

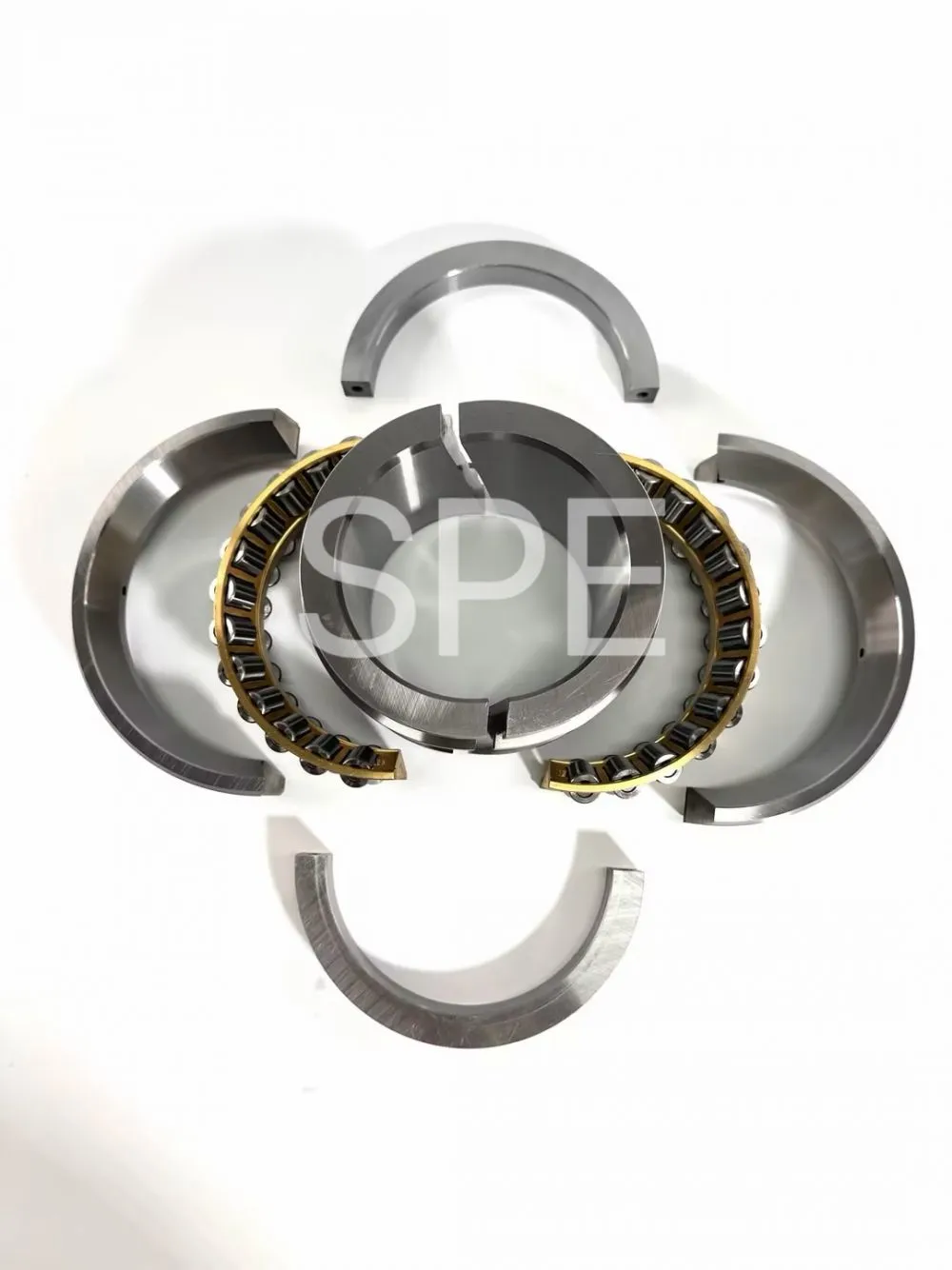

Structure: The inner and outer rings, rollers, and cage are all split in half, allowing direct assembly on the shaft without dismantling it
II. Model Interpretation
01: Medium-sized heavy-duty split bearing series
E: Enhanced type, with more rollers, and a load capacity approximately 30% higher than the regular 01B
B: Standard width series
235: Nominal inner diameter 235mm
M: Brass solid cage
GR: Fixed end, bearing radial + bidirectional axial force
EX: Floating end, radial load only, allowing axial thermal expansion and sliding
III. Core Load and Limit Parameters
Basic dynamic load Cr: 750 kN
Basic static load Cor: 1250 kN
Ultimate speed: 900 r/min
IV. Performance Advantages
Quick assembly without dismantling the shaft: No need to dismantle the main shaft or coupling, significantly reducing downtime
Heavy-load impact resistance: suitable for low-speed heavy-load and alternating impact conditions
Self-aligning and fault-tolerant: ±0.5° misalignment is allowed statically, reducing installation difficulty
High temperature and wear resistance: conventional temperature resistance up to 120℃, special type up to 180℃; sealed, dustproof, and waterproof
Easy maintenance: Equipped with a dedicated split bearing housing, it facilitates convenient lubrication and efficient replacement
V. Typical Applications
Metallurgy: rolling mill roller table, continuous casting equipment, universal drive shaft
Mine/Cement: Ball mill, rotary kiln, belt conveyor, bucket wheel machine
Electric power: long shafts for induced draft fans, coal mills, and auxiliary equipment in power plants
Ports/Ships: Conveyor machinery, heavy-duty deck equipment, long-span transmission shaft systems
VI. Installation and pairing
Standard configuration: 01EB235MGR (fixed) + 01EB235MEX (floating) used in combination
Adaptation: Directly use the original Cooper split bearing housing, without the need to modify the shaft diameter or the base
Lubrication: For heavy-duty and low-speed applications, choose extreme pressure lithium-based grease to extend the maintenance interval
