1. Standard core dimensions
Inner diameter d: 95 mm
Outer diameter D: 165.1 mm
Inner ring width B: 76.2 mm
Outer ring width C: 38.1 mm
Weight: GR ≈ 4.8 kg; EX ≈ 4.7 kg
Cage: M = High-strength solid brass cage

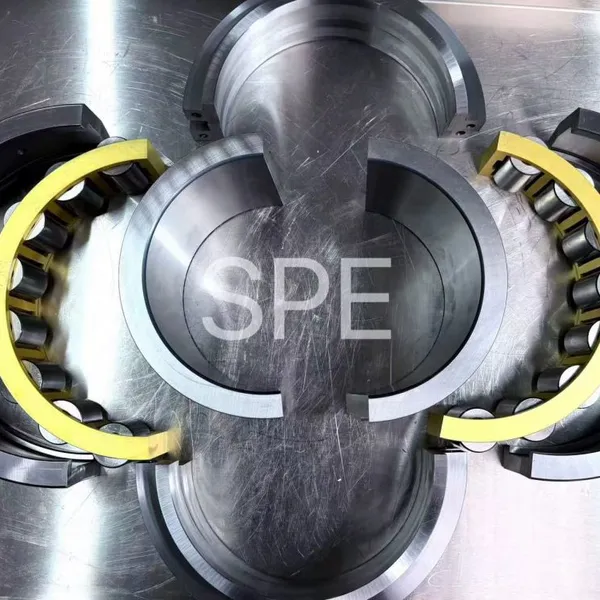

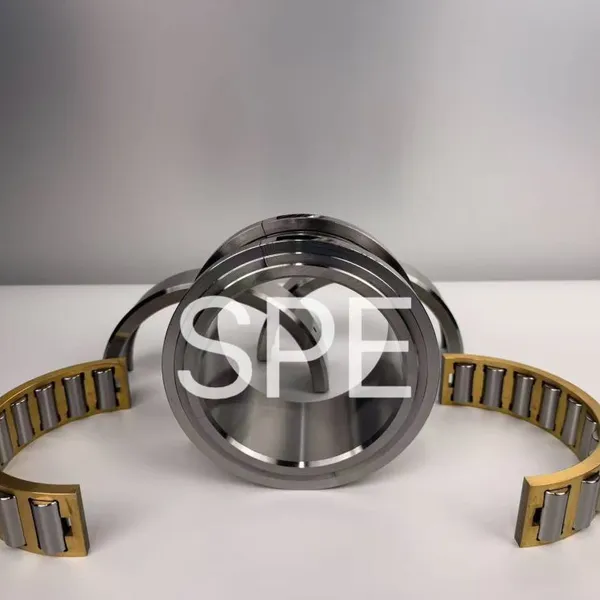

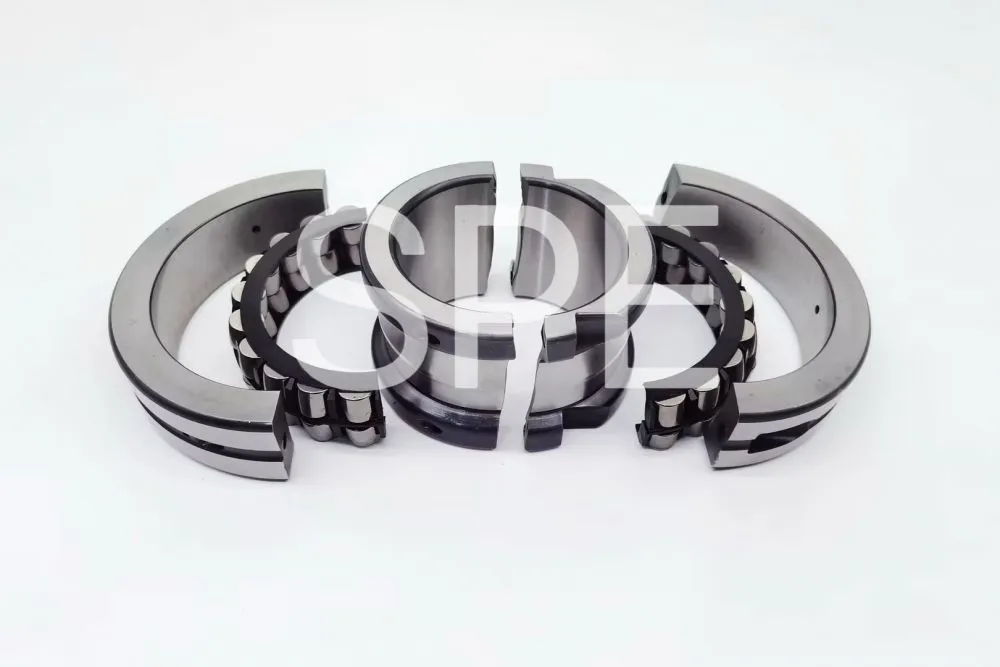

Structure: The inner and outer rings, rollers, and cage are all split in half, allowing direct assembly on the shaft without dismantling it
II. Model Interpretation
01: Medium-sized heavy-duty split bearing series
E: Enhanced type, with more rollers, and a load capacity approximately 30% higher than the regular 01B
B: Standard width series
95: Nominal inner diameter 95mm
M: Brass solid cage
GR: Fixed end, bearing radial + bidirectional axial force
EX: Floating end, radial load only, allowing axial thermal expansion and slippage
III. Core Load and Limit Parameters
Basic dynamic load Cr: 228 kN
Basic static load Cor: 275 kN
Limit speed: 2650 r/min
Operating temperature: -20℃ to 100℃ (short-term 120℃)
IV. Performance Advantages
Quick-release shaft assembly: No need to disassemble the main shaft/coupling, allowing for quick replacement even in confined spaces, significantly reducing downtime
Heavy-load high rigidity: suitable for medium and low-speed shaft systems with high power and heavy impact loads, with superior rigidity compared to ordinary bearings of the same size
Self-aligning and fault tolerance: It allows ±0.5° misalignment statically, reduces the requirement for installation coaxiality, and adapts to scenarios with deformed bases
Sealed, dustproof, and waterproof: Equipped with a labyrinth seal and a contact composite seal as standard, suitable for harsh working conditions such as dust and moisture
Easy maintenance: Equipped with P01 series split bearing housings, it allows for convenient grease filling and high maintenance efficiency
V. Typical Applications
Mining machinery: large scraper conveyor, feeder, crusher main gear shaft
Metallurgical equipment: hot rolling/cold rolling roller table, drive long shaft, tension roller, coiler
Conveying machinery: heavy-duty belt conveyor roller shaft, bucket elevator, chain conveyor
General machinery: large reducers, fans, pumps, long-span drive shafts
VI. Installation and pairing
Standard configuration: **01EB95MGR (fixed) + 01EB95MEX (floating)** used in combination
Compatible with: Cooper original P01 split bearing housing, no need to modify the shaft diameter or the base
