1. Standard core dimensions
Inner diameter d: 270 mm
Outer diameter D: 425 mm
Inner ring width B: 138 mm
Outer ring width C: 75 mm
Weight: approximately 54 kg
Cage: M = High-strength solid brass cage

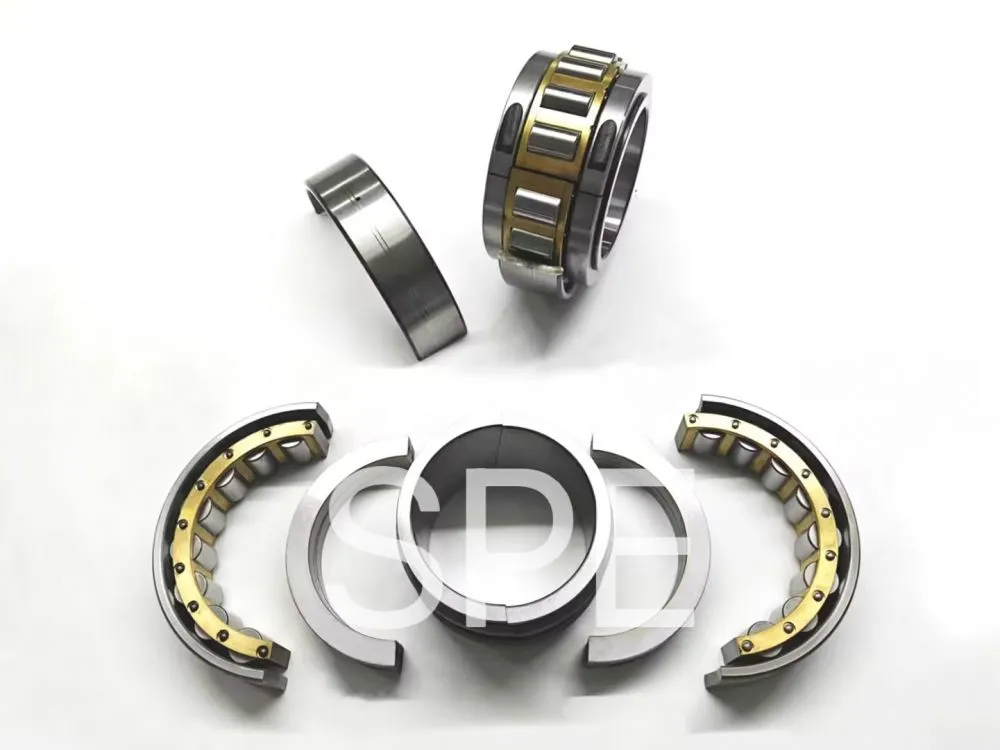

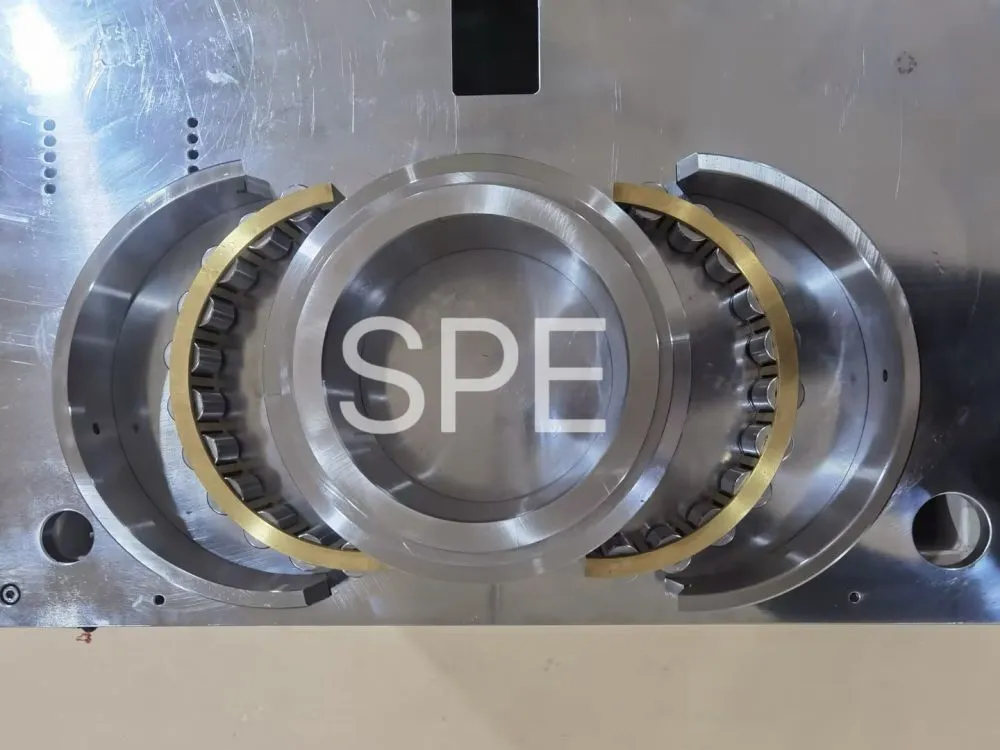

Structure: The inner and outer rings, rollers, and cage are all split in half, allowing for direct assembly on the shaft without dismantling it
II. Model Interpretation
01: Medium-sized heavy-duty split bearing series
E: Enhanced type, with more rollers, and a load capacity approximately 30% higher than the regular 01B
B: Standard width series
270: Nominal inner diameter 270mm
M: Brass solid cage
GR: Fixed end, bearing radial + bidirectional axial force
EX: Floating end, radial load only, allowing axial thermal expansion and sliding
III. Core Load and Limit Parameters
Basic dynamic load Cr: 910 kN
Basic static load Cor: 1520 kN
Ultimate speed: 820 r/min
IV. Performance Advantages
Quick installation without dismantling the shaft: No need to dismantle the main shaft or coupling, significantly reducing downtime
Heavy-load impact resistance: suitable for low-speed heavy-load and alternating impact conditions
Self-aligning and fault-tolerant: ±0.5° misalignment is allowed statically, reducing installation difficulty
High temperature resistance and wear resistance: regular temperature resistance up to 120℃, special type up to 180℃; sealed, dustproof, and waterproof

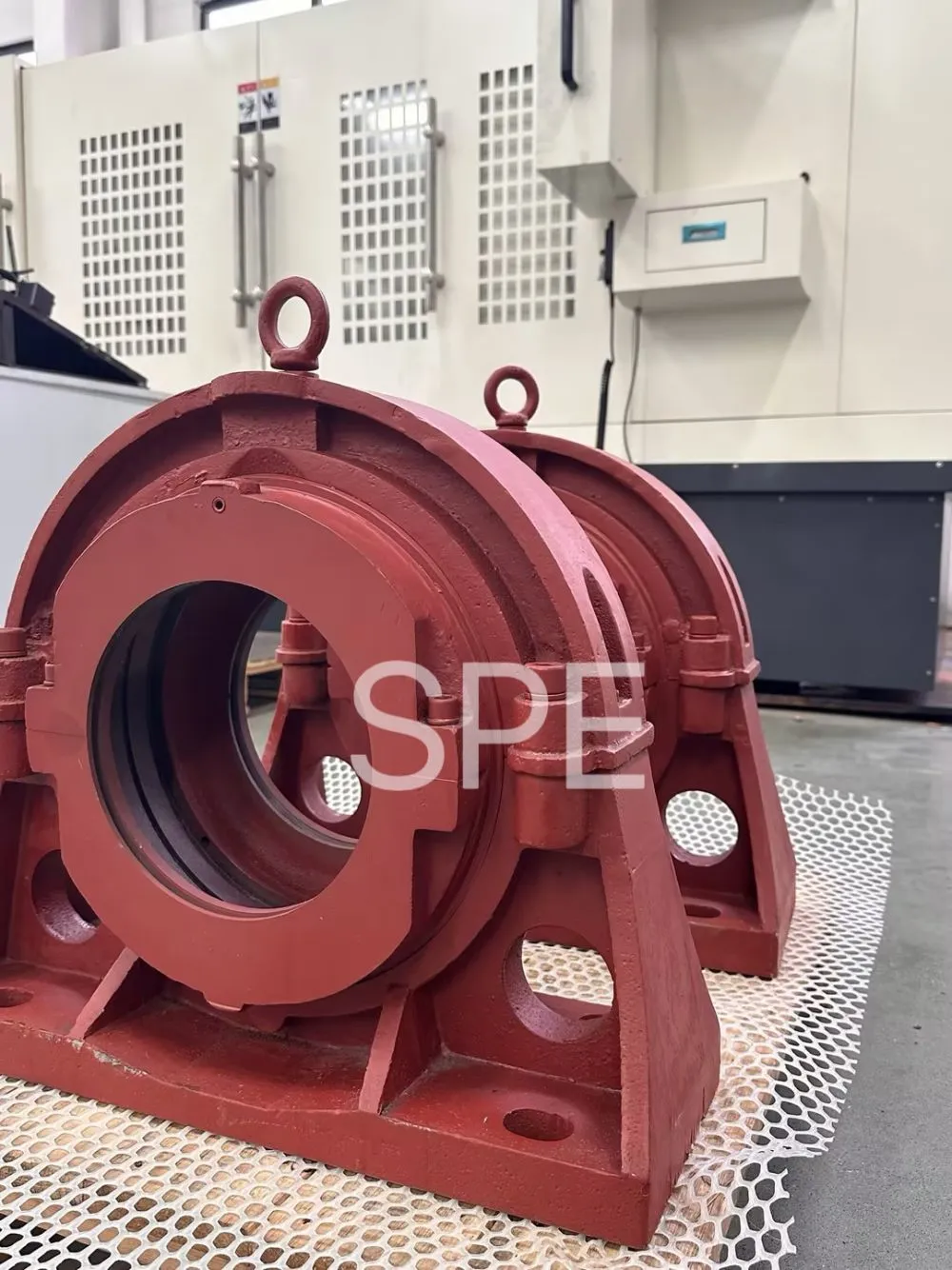

Easy maintenance: Equipped with a dedicated split bearing housing, it facilitates convenient lubrication and efficient replacement
V. Typical Applications
Metallurgy: rolling mill roller table, continuous casting equipment, universal drive shaft
Mine / Cement: Ball mill, rotary kiln, belt conveyor, bucket wheel machine
Electric power: long shafts for induced draft fans, coal mills, and auxiliary equipment in power plants
Ports/Ships: Conveyor machinery, deck heavy-duty equipment, long-span transmission shaft systems
VI. Installation and pairing
Standard configuration: **01EB270MGR (fixed) + 01EB270MEX (floating)** combination
Adaptation: Use the original Cooper split bearing housing directly, without the need to modify the shaft diameter or the base
