1. Standard core dimensions
Inner diameter d: 265 mm
Outer diameter D: 418 mm
Inner ring width B: 135 mm
Outer ring width C: 72 mm
Weight: approximately 52 kg
Cage: M = High-strength brass solid cage

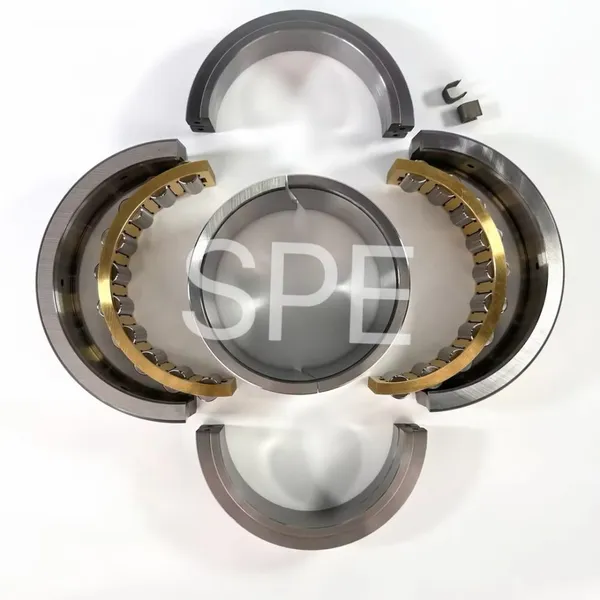

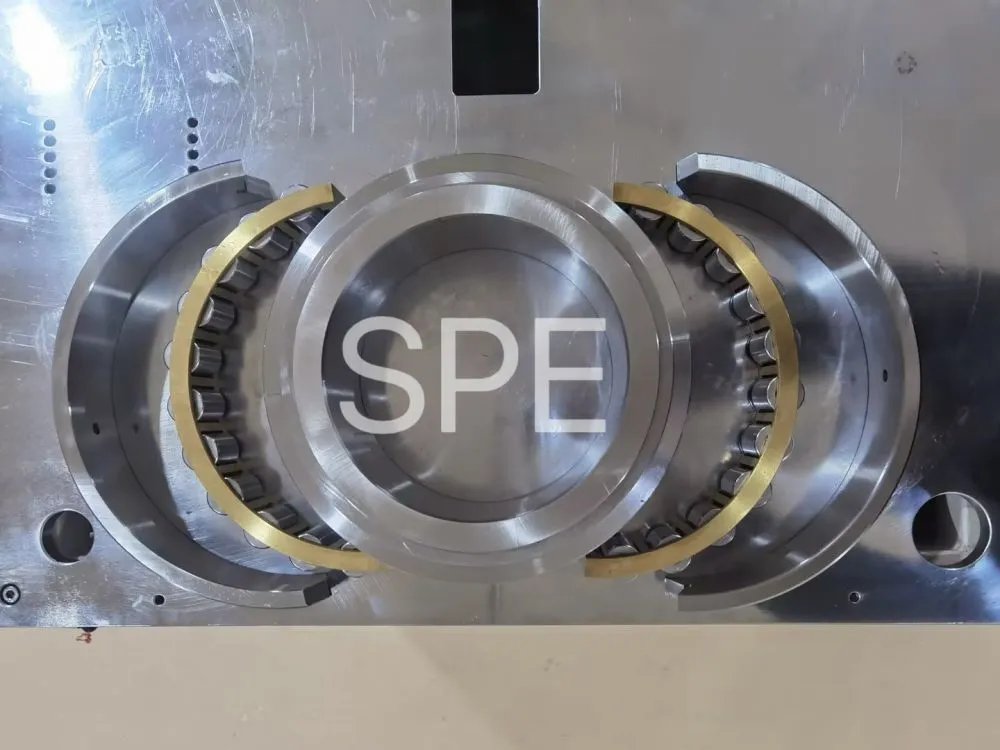

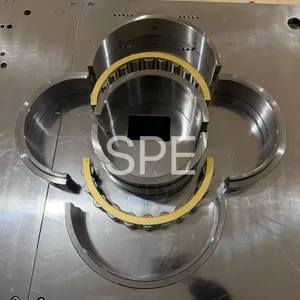

Structure: The inner and outer rings, rollers, and cage are all split in half, allowing direct assembly on the shaft without dismantling the shaft
II. Model Interpretation
01: Medium-sized heavy-duty split bearing series
E: Enhanced type, with more rollers, and a load capacity approximately 30% higher than the ordinary 01B
B: Standard width series
265: Nominal inner diameter 265mm
M: Brass solid cage
GR: Fixed end, bearing radial + bidirectional axial force
EX: Floating end, radial load only, allowing axial thermal expansion and slippage
III. Core Load and Limit Parameters
Basic dynamic load Cr: 890 kN
Basic static load Cor: 1480 kN
Limit speed: 850 r/min
IV. Performance Advantages
Quick installation without dismantling the shaft: No need to disassemble the main shaft or coupling, significantly reducing downtime
Heavy-load impact resistance: suitable for low-speed heavy-load and alternating impact conditions
Self-aligning and fault-tolerant: ±0.5° misalignment is allowed statically, reducing installation difficulty
High temperature and wear resistance: Regular temperature resistance up to 120℃, and special temperature resistance up to 180℃; sealed, dustproof, and waterproof

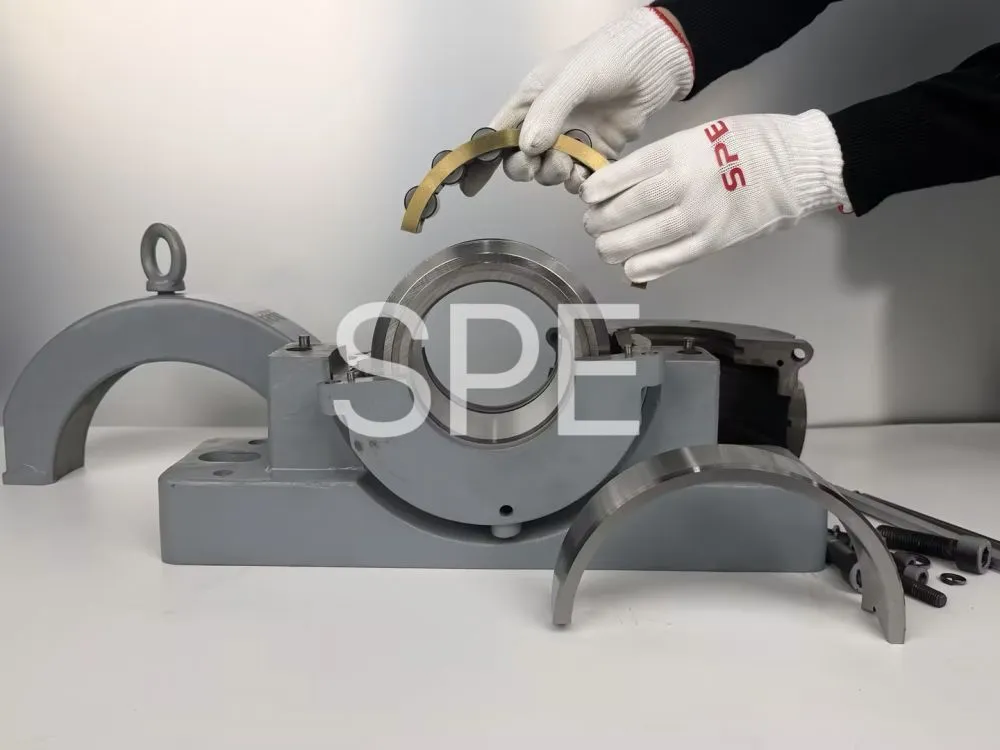

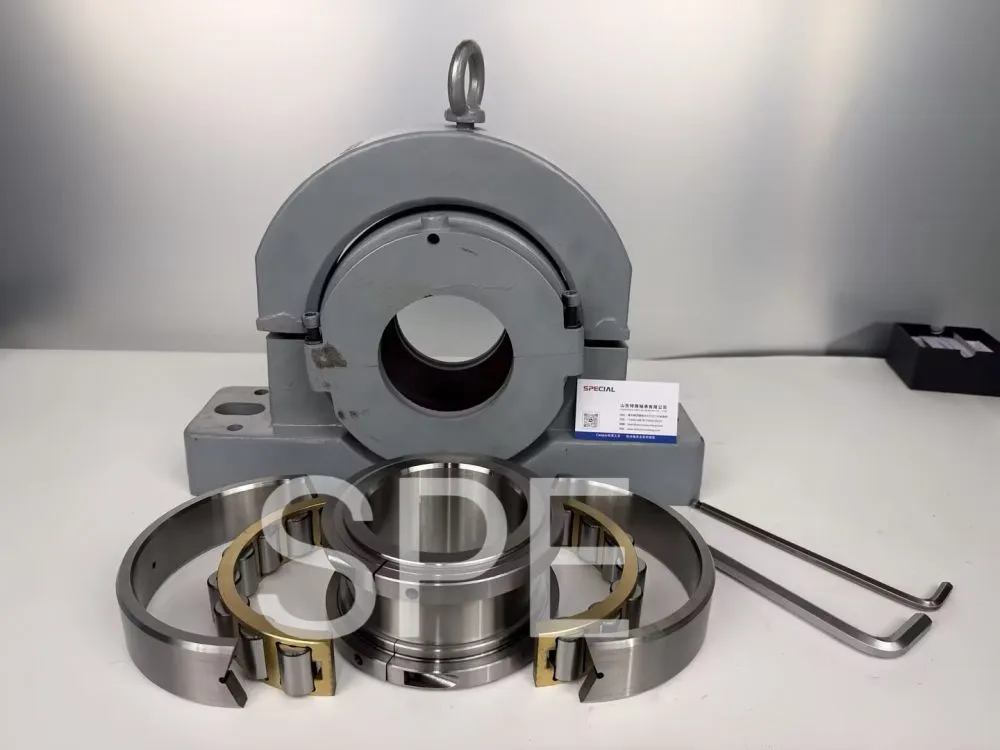

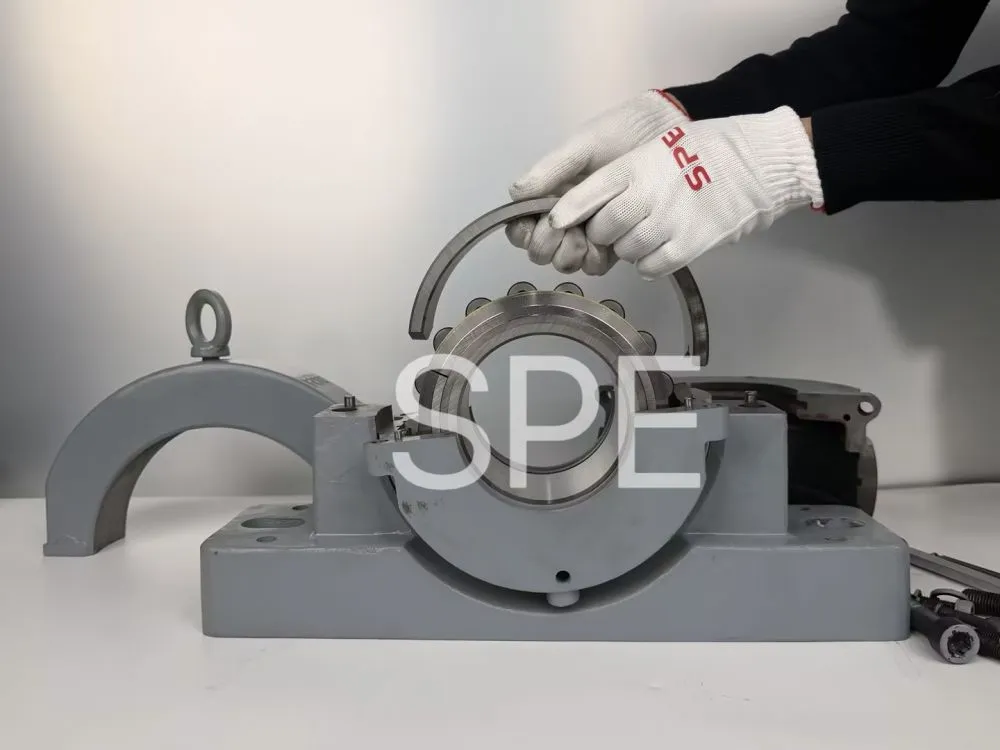

Easy maintenance: Equipped with a dedicated split bearing housing, it allows for convenient lubrication and efficient replacement
V. Typical Applications
Metallurgy: rolling mill roller table, continuous casting equipment, universal drive shaft
Mining / Cement: Ball mill, rotary kiln, belt conveyor, bucket wheel machine
Electric power: long shafts for induced draft fans, coal mills, and auxiliary equipment in power plants
Ports/Ships: Conveyor machinery, deck heavy-duty equipment, long-span transmission shaft systems
VI. Installation and pairing
Standard configuration: **01EB265MGR (fixed) + 01EB265MEX (floating)** used in combination
Adaptation: Use the original Cooper split bearing housing directly, without the need to modify the shaft diameter or the base
