1、 Model Definition
02: Wide cross-section heavy-duty series, wider and higher load-bearing capacity than 01 series with the same inner diameter
E: Reinforced structure, roller thickening, optimized raceway, impact resistance, and improved lifespan
B: Split cylindrical roller bearing
35: nominal inner diameter 35mm
M: Brass solid holder, high temperature resistance, deformation resistance, suitable for continuous heavy-duty operation
2、 Standard external dimensions
Inner diameter: 35 mm
Outer diameter: 72 mm
Width: 38 mm
3、 Basic performance parameters
Material: High carbon chromium bearing steel GCr15, with high quenching hardness, wear resistance and fatigue resistance

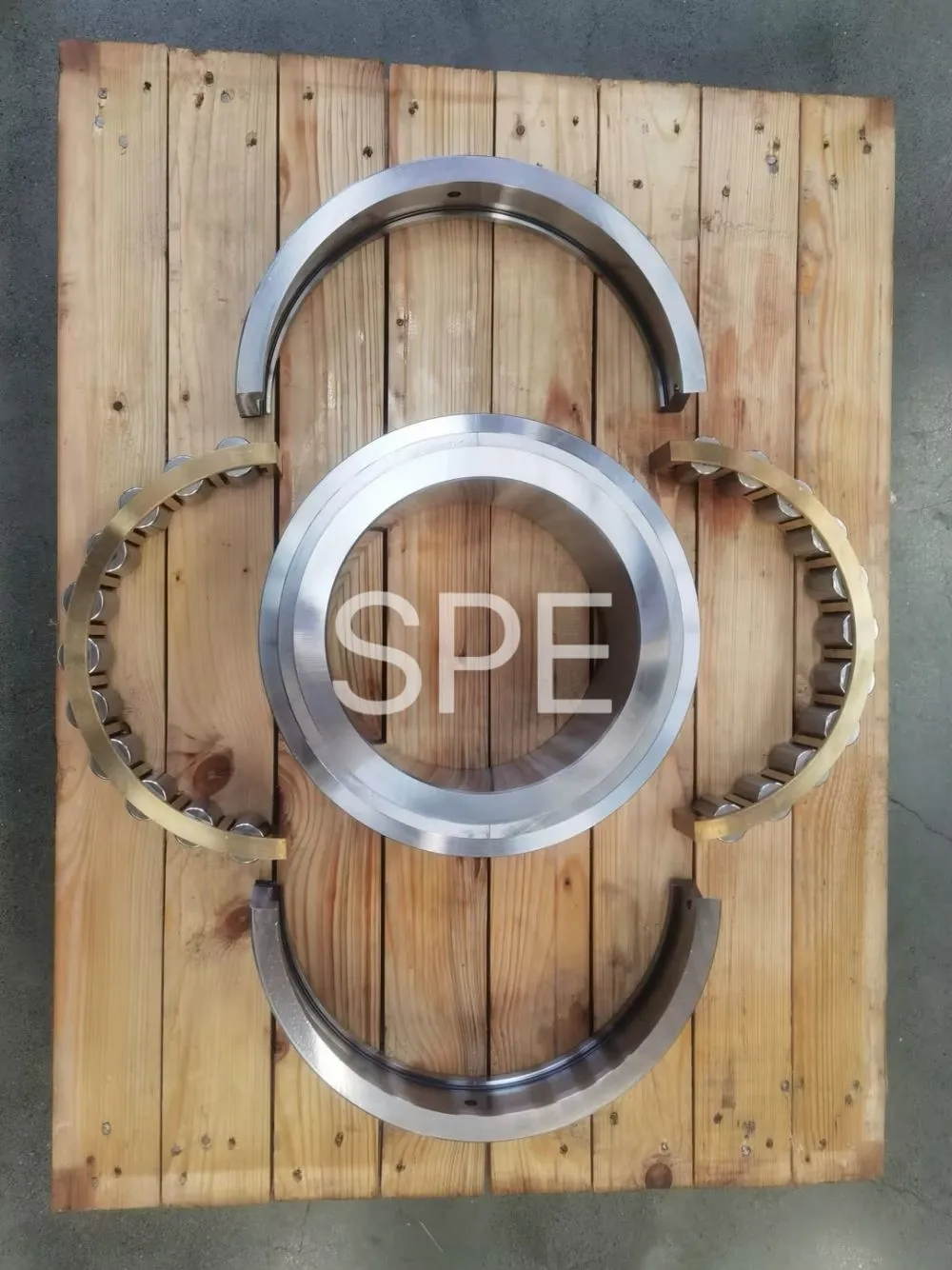

Structure: Fully split design, inner and outer rings, rollers, and retainers can all be split in half
Applicable working conditions: low-speed heavy load, slight impact, dust and moisture in small and medium-sized industrial and mining equipment
Temperature resistance range: -30 ℃ to 180 ℃
Features: Capable of micro centering and compatible with minor misalignment of shaft systems during installation
4、 Structural core advantages
02 Wide Series Heavy Duty
Compared to the same inner diameter of 01EB35M, it has a wider cross-section, more rollers, and stronger radial bearing capacity, making it suitable for small shaft diameter and high load conditions.
Fully split non removable shaft
No need to disassemble the main shaft, move the coupling and gears, directly open and close on the shaft for easy maintenance and saving downtime.
E-type enhanced upgrade
Compared to the ordinary 02B35M, the rollers and raceways have been optimized for impact resistance, wear resistance, and longer service life.
Brass solid holder
Rigid enough, not easily deformed or broken, resistant to high temperature and compression, suitable for long-term continuous operation of equipment.
Can be equipped with seals
Optional labyrinth seals and skeleton oil seals are available to effectively prevent dust, water, and impurities from entering the interior of the bearing.
5、 Applicable device scenarios
Small mining machinery, micro crushers, and small winch transmissions; Light industry conveying equipment, textile machinery, grain and oil processing equipment; Various heavy-duty support shaft positions with a diameter of 35 millimeters, limited space, and inconvenient disassembly and assembly.
6、 Key points for installation and maintenance
Before installation, clean the mating surface between the journal and the bearing seat, align the two halves of the bearing seam, and tighten the splicing bolts diagonally and evenly; Add extreme pressure heavy-duty grease and fill two-thirds of the cavity; Regularly perform routine grease replacement inspections, and promptly check the pre tightening force and sealing status of bolts in case of high temperature rise, abnormal noise, or vibration.
