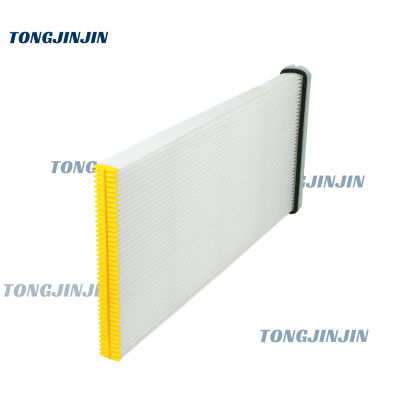

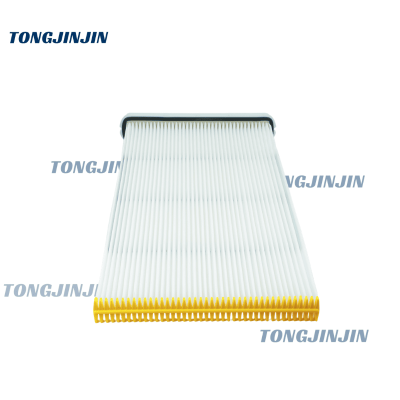

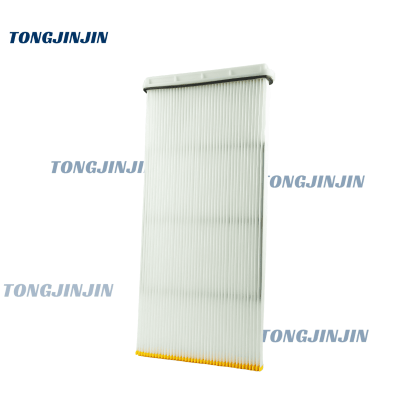

🌫️ KFEW Flat Filter Cartridge
📌 Product Overview
The KFEW Flat Filter Cartridge is a pleated flat filter element dedicated for R03 dust collectors. It is applied to silo venting and dust filtration of cement, fly ash and powder materials in concrete batching plants. Uniform overall dimension design with 3 standard heights to adapt to different silo airflow demands.
📊 Technical Parameters
| Model | Filter Area | Dimension (L×W×H) | Unit Weight |
|---|---|---|---|
| KFEW1001 | 1.9 m² | 422×50×526 mm | 2.0 kg |
| KFEW2001 | 2.9 m² | 422×50×776 mm | 2.3 kg |
| KFEW3001 | 3.5 m² | 422×50×926 mm | 2.5 kg |
Filter Media: PP Polyester, PH Polyester Nanofiber, Anti-static, PTFE Membrane

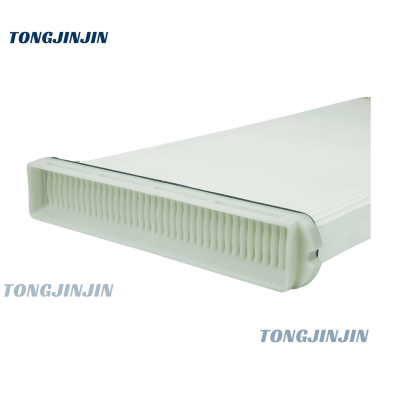

Structure: Pleated flat type with reinforced plastic end cap
Installation: Direct fit for R03 dust collector
✨ Product Features
Fixed overall size 422×50 mm for all models
Filtration area range: 1.9 m² ~ 3.5 m²
Reinforced pleat structure keeps stable under pulse jet cleaning
Multiple media options for dry, humid and anti-static dust environment
🏭 Application Range
Concrete batching plant silo venting filtration
Cement, fly ash and mineral powder silo dust removal
Supporting filter element for R03 industrial dust collector
🤝Why Choose tongjinjin?
Factory-manufactured filter cartridges with verified dimensions and performance for concrete plant use
Consistent quality control for critical dust collection consumables
Clear technical specifications to support quick, accurate selection for your project
📩 Contact us now to confirm specifications and get a quotation for your required model and quantity.
