🌪️ KFNC Spin-in Filter Cartridge
📌 Product Overview

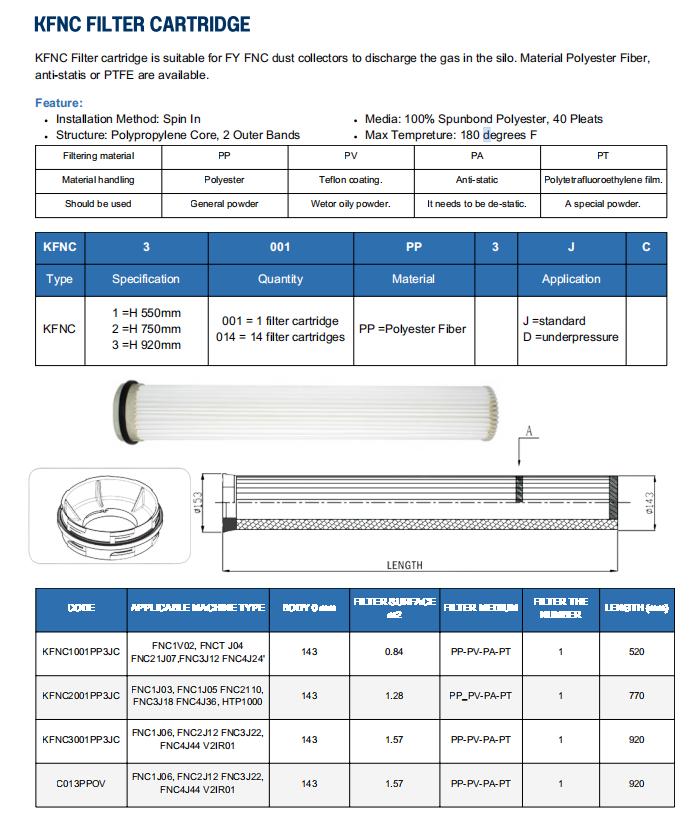

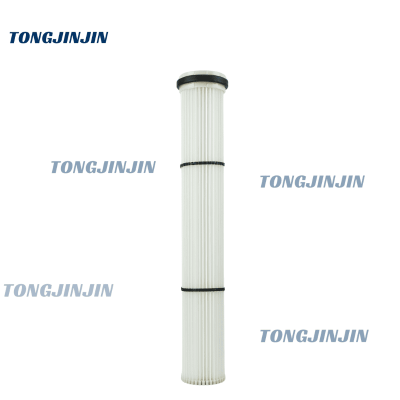

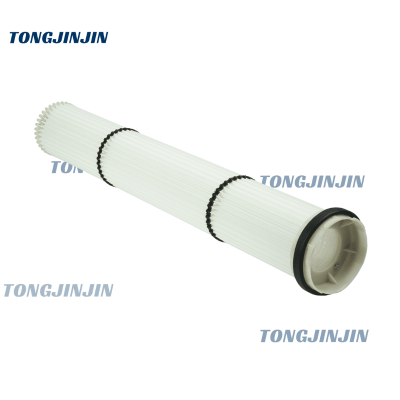

KFNC Spin-in Filter Cartridge is a cylindrical pleated filter element designed for FY FNC series dust collectors. Adopts spin-in twist-lock installation, 143 mm outer diameter with 40 standard pleats. Three length sizes available for fine dust interception and air exhaust of concrete powder silos.
📊 Technical Parameters
| Model | Filter Area | Length | Outer Diameter | Pleat Quantity |
|---|---|---|---|---|
| KFNC1001PP3JC | 0.84 m² | 520 mm | 143 mm | 40 |
| KFNC2001PP3JC | 1.28 m² | 770 mm | 143 mm | 40 |
| KFNC3001PP3JC | 1.57 m² | 920 mm | 143 mm | 40 |
Filter Media: PP Polyester, PV Teflon Coated, PA Anti-static, PT PTFE Membrane
Structure: Polypropylene inner core with double outer support bands
Max Working Temperature: 82°C
Installation: Spin-in twist-lock quick mounting
✨ Product Features
143 mm fixed outer diameter, spin-in design for fast replacement
40 pleats expand filtration area and reduce air resistance
Integral reinforced structure anti-deformation during pulse cleaning
Various media adapt to dry, wet, oily and static dust conditions
🧰 Compatible Equipment
Fits FY FNC series dust collector:FNC1V02, FNCT J04, FNC21J07, FNC3J12, FNC1J03, FNC1J05, FNC1J06, FNC2J12, FNC3J22, FNC4J44
🏭 Application Range
Concrete batching plant silo ventilation & dust filtration
Cement and fly ash powder storage silo dust control
Special filter element for FY FNC industrial dust collector
