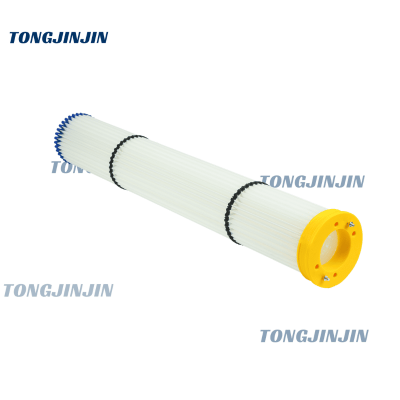

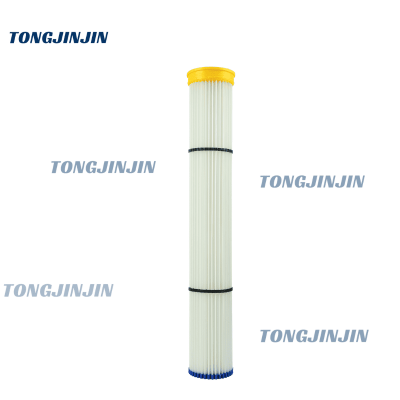

💨 KFEC Threaded Filter Cartridge
📌 Product Overview
KFEC Threaded Filter Cartridge is a cylindrical threaded filter element for FY V2 series dust collectors. Equipped with double threaded stud mounting, 150 mm fixed outer diameter and 40 standard pleats. Multiple length specifications for fine dust filtration and air exhaust of concrete raw material silos.
📊 Technical Parameters

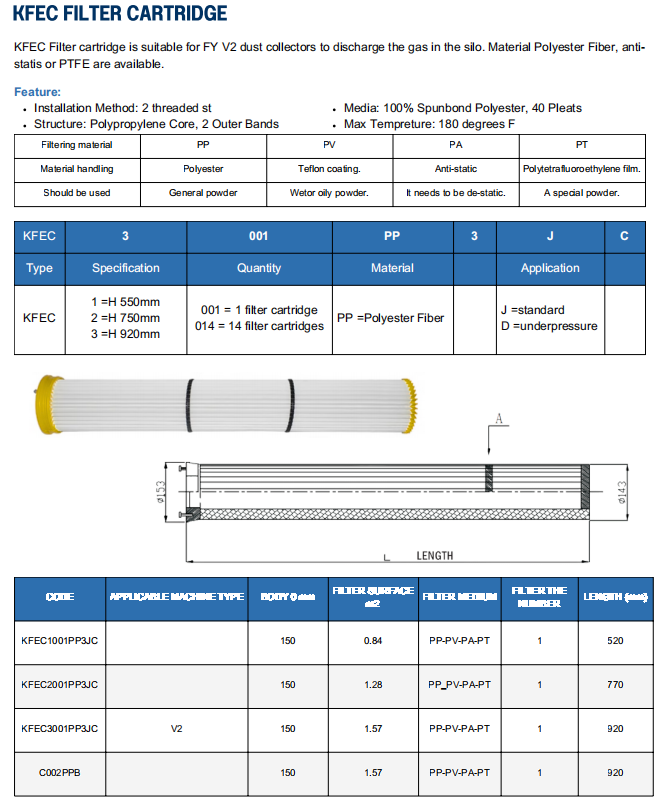

| Model | Filter Area | Length | Outer Diameter | Pleat Quantity |
|---|---|---|---|---|
| KFEC1001PP3JC | 0.84 m² | 520 mm | 150 mm | 40 |
| KFEC2001PP3JC | 1.28 m² | 770 mm | 150 mm | 40 |
| KFEC3001PP3JC | 1.57 m² | 920 mm | 150 mm | 40 |
Filter Media: PP Polyester, PV Teflon Coated, PA Anti-static, PT PTFE Membrane
Structure: Polypropylene inner core with double outer support bands
Max Working Temperature: 82°C
Installation: Double threaded stud fixed installation
✨ Product Features
150 mm fixed outer diameter, double threaded structure for stable installation
40 pleated design ensures large filtration area and stable airflow
Reinforced inner core and outer bands resist long-term pulse cleaning
Multiple media meet conventional, humid, oily and anti-static working scenarios
🧰 Compatible Equipment
Suitable for all FY V2 series dust collectors for concrete silo venting and industrial powder dust removal.
🏭 Application Range
Silo venting dust filtration for concrete batching plant
Dust purification of cement, fly ash and bulk powder silos
Consumable filter element for FY V2 dust collector system
🤝 Why Choose Us
All filter cartridges are produced with standard dimension and full compatibility. Complete specifications and multiple media options support one-stop selection. Rational structure and standardized production adapt to long-term industrial continuous operation.
