1. Basic dimensions (metric system)
Inner diameter d: 60 mm
Outer diameter D: 114.3 mm
Inner ring width C: 55.7 mm
Width B: 27 mm
Weight: 1.94 kg
II. Core Performance (Refer to COP.01EB60MGR)
Basic dynamic load Cr: 135 kN (≈30,349 lbf)
Basic static load Cor: 157 kN (≈35,295 lbf)
Limit speed: 3,940 r/min (grease lubrication)
Axial capability: bidirectional axial positioning (GR type)
Cage: Solid brass cage (M), high strength, good heat resistance
III. Structural Features (Core Advantages of Dissection)

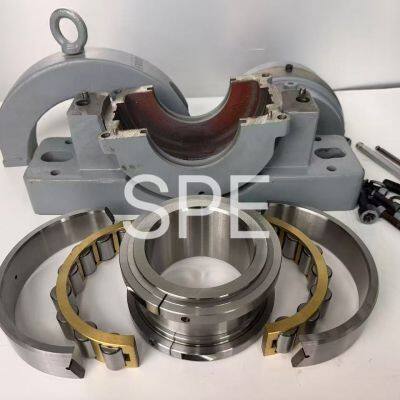

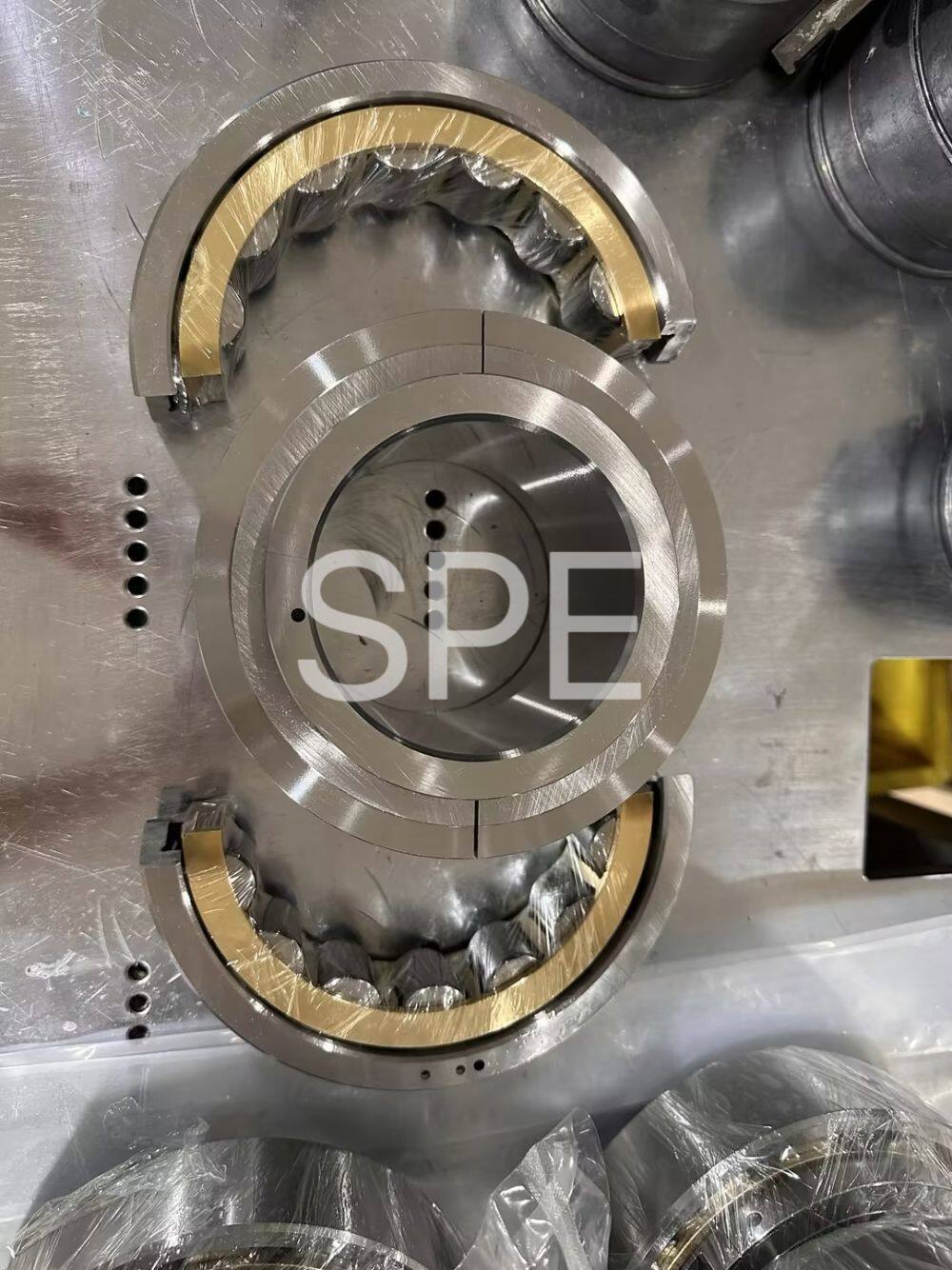

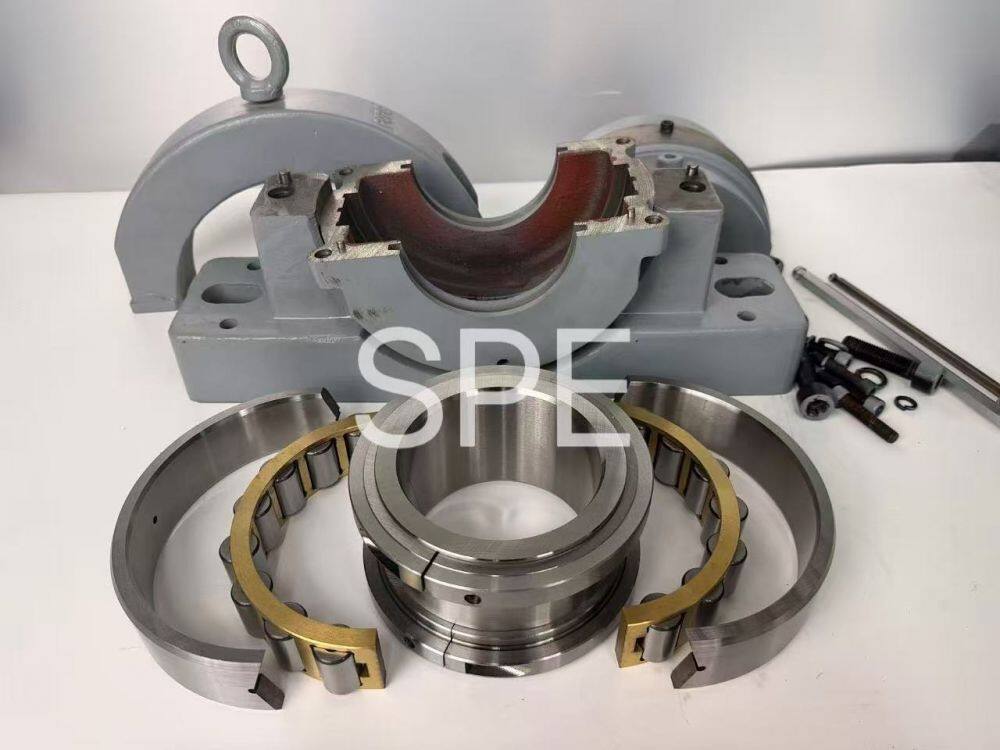

Fully disassembly design: The inner ring, outer ring, roller, and cage can all be split in half, allowing for installation and replacement without dismantling the shaft or equipment, significantly reducing downtime.
Enhanced 01E series: Compared to the standard 01 series, the rollers are larger, with stronger load capacity. The radial dynamic load rating is increased by approximately 29%, and the axial load rating is increased by 16%–90%. It also boasts a longer lifespan.

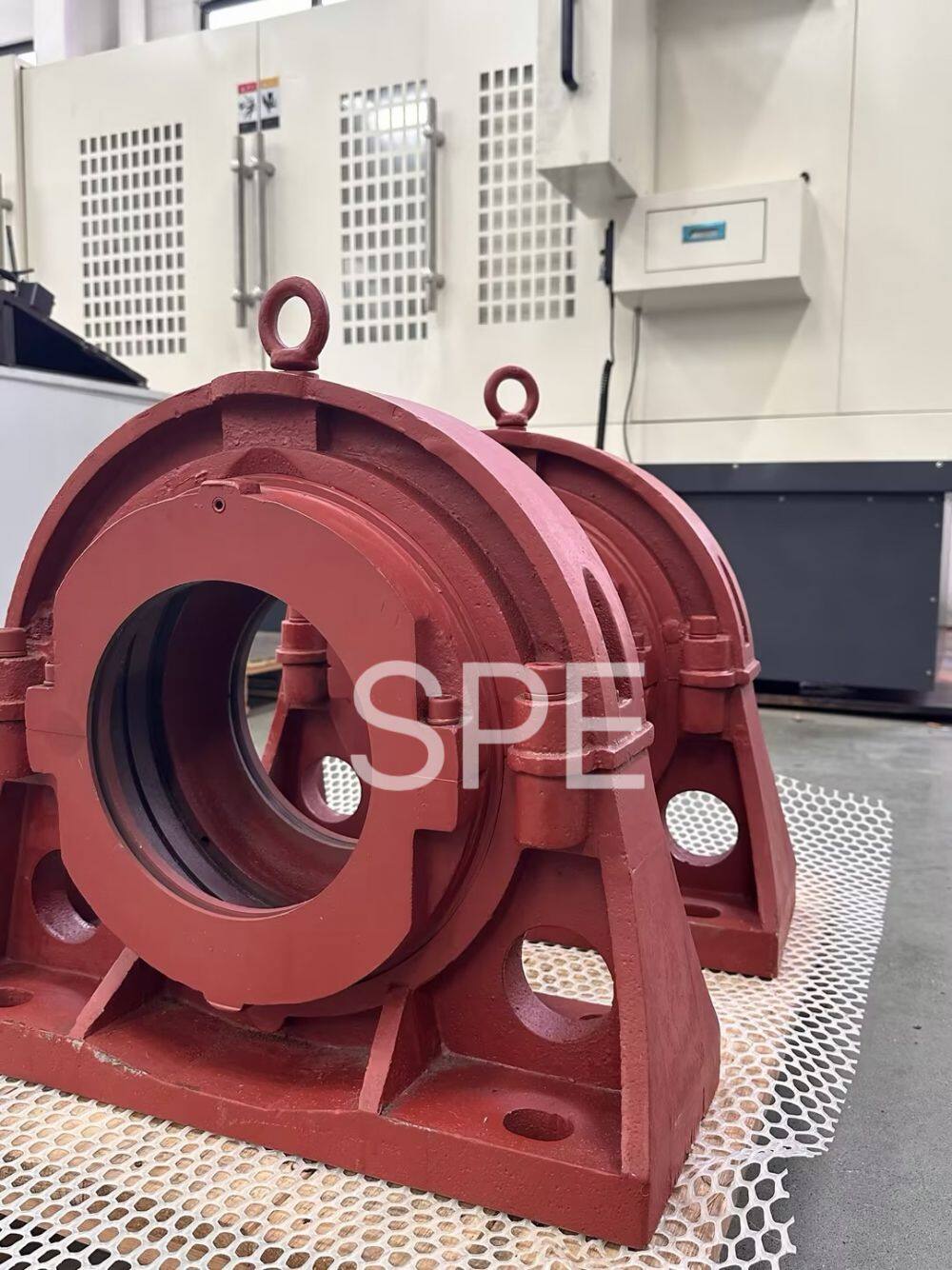

Adaptation and alignment error: It can be installed on SKF Cooper split bearing housings, allowing a certain static alignment deviation between the shaft and the housing.
IV. Typical Applications
Conveyor, fan, pump, crusher, mixer
Mine machinery, metallurgical equipment, paper-making machinery
Medium and low-speed heavy-load rotating parts with limited space and difficulty in dismantling shafts
V. Model Description (01EB60M)
01: Series code (medium)
E: Enhanced
B: Cylindrical roller, dual-direction positioning
60: Inner diameter 60 mm
M: Brass cage
