1. Basic dimensions (metric system)
Inner diameter d: 160 mm
Outer diameter D: 254 mm
Inner ring width B: 98.4 mm
Outer ring width C₁: 55.6 mm
Weight: 21.8 kg
II. Core Performance (GR Positioning Type)
Basic dynamic load Cr: 511 kN
Basic static load Cor: 767 kN
Basic axial load Ca: 40.3 kN
Limit speed: 1,450 r/min (grease lubrication)
Axial capability: bidirectional axial positioning (GR), capable of withstanding bidirectional axial loads
Cage: Solid brass cage (M), heavy-duty, heat-resistant, deformation-resistant, long-lasting
III. Structural Features

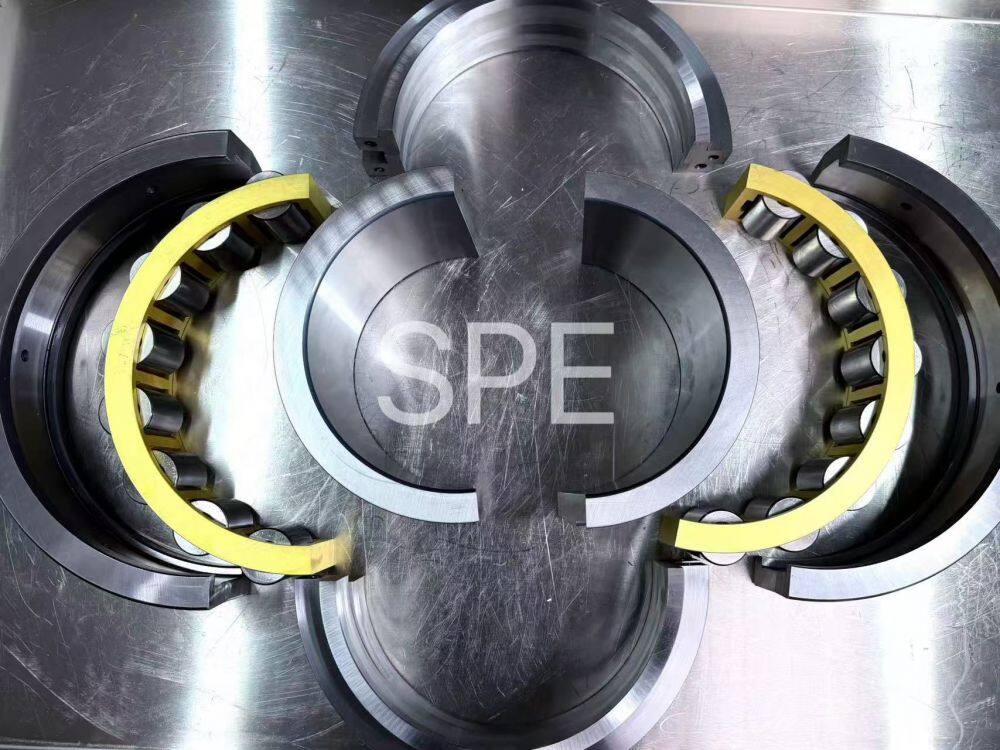

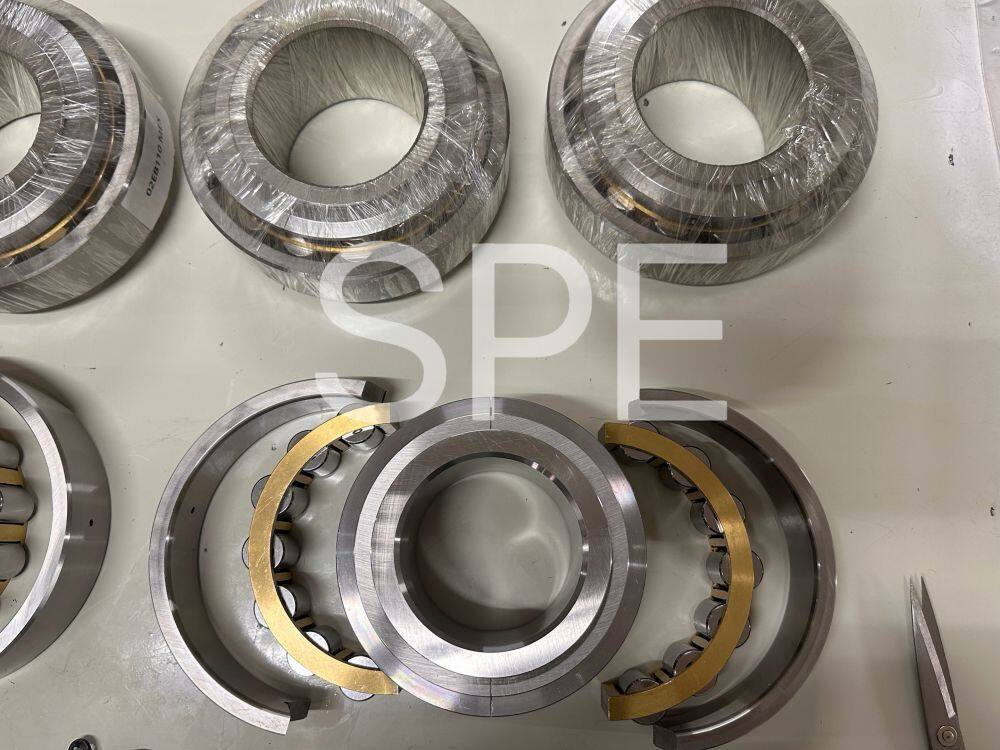

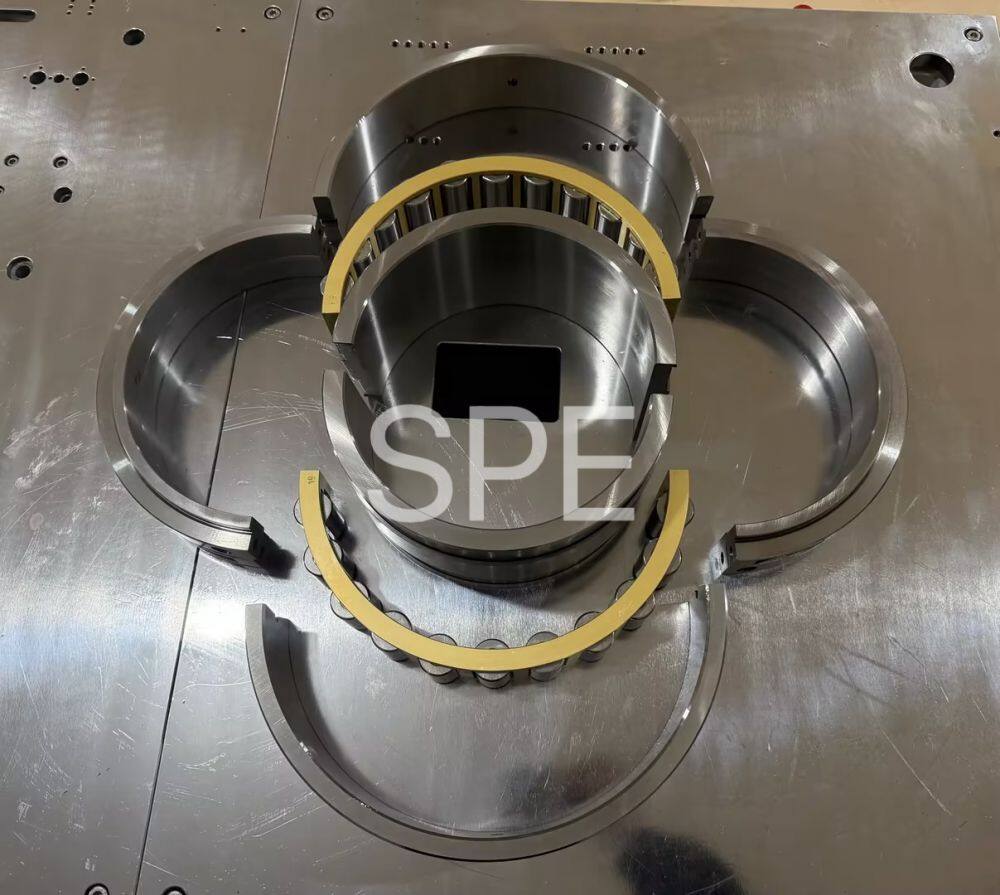

Fully split design: The inner and outer rings, rollers, and cages can all be split in half, allowing for installation and replacement without dismantling the shaft or equipment, significantly reducing downtime.
01E Enhanced Series: With enlarged roller dimensions and improved load capacity, the dynamic load capacity is increased by approximately 29% compared to the standard 01 Series, resulting in a longer lifespan.
Bidirectional positioning (GR): It can simultaneously withstand radial and bidirectional axial loads, making it suitable for heavy-duty rotating parts that require axial fixation.

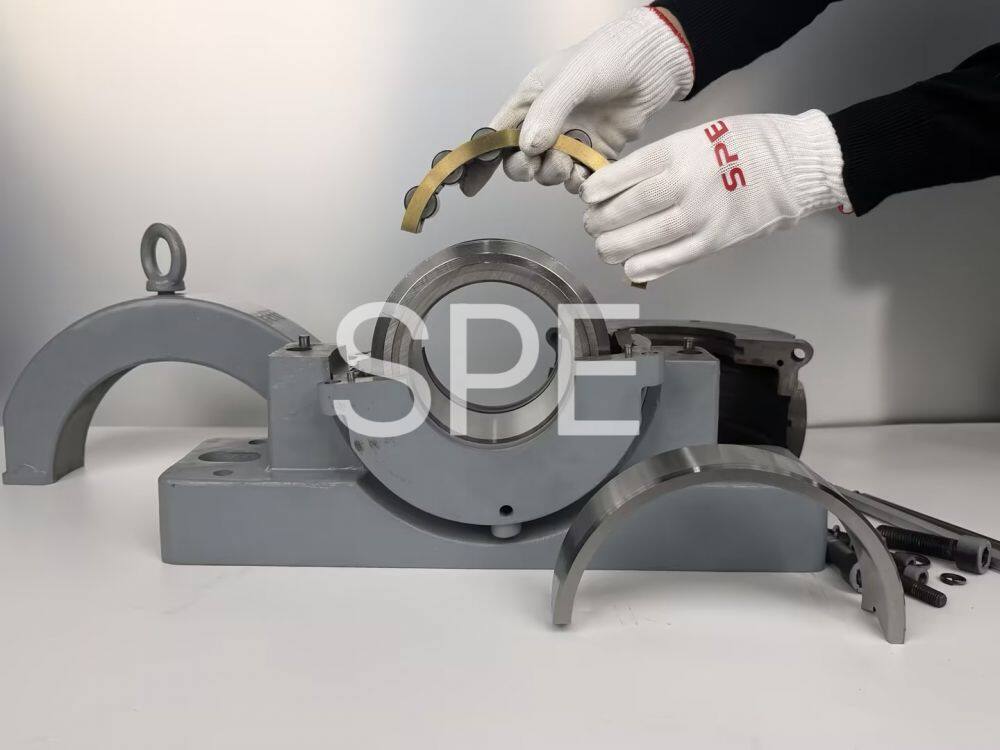

Static alignment compensation: It is compatible with SKF Cooper split bearing housings, allowing a certain degree of axial-housing alignment deviation.
IV. Typical Applications
Conveyor, large fan, pump, crusher, mixer
Heavy equipment for mining, metallurgy, cement, paper-making, etc
In scenarios involving medium and low-speed heavy loads, where space is limited and shaft disassembly is challenging
V. Model Description
01: Medium series
E: Enhanced
B: Cylindrical roller, dual-direction positioning
160: Inner diameter 160 mm
M: Brass cage
GR: Bidirectional axial positioning (fixed end)
