1. Core dimensional parameters (metric)
Inner diameter d: 45 mm
Outer diameter D: 98.42 mm
Inner ring width C: 55.7 mm
Bearing width B1: 25.4 mm
Weight: approximately 1.16 kg
Cage: Solid brass cage (M)
Material: high carbon chromium bearing steel (GCr15)
II. Structure and Key Features

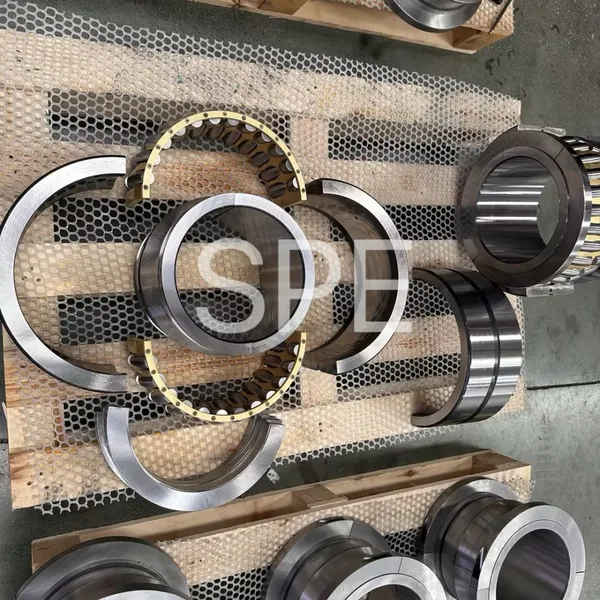

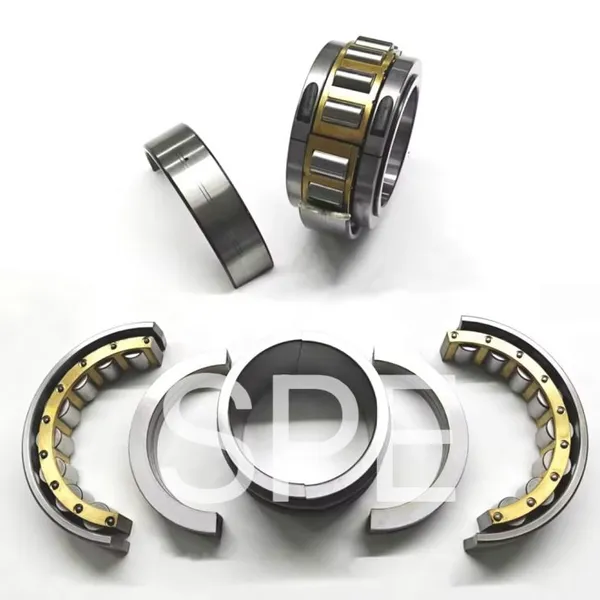

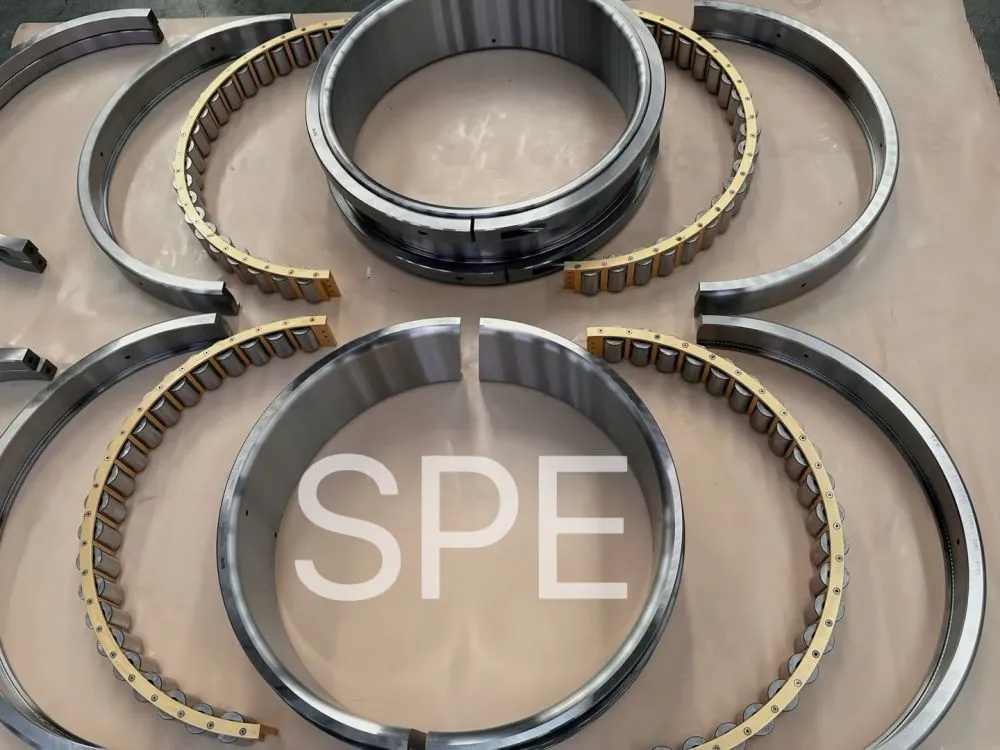

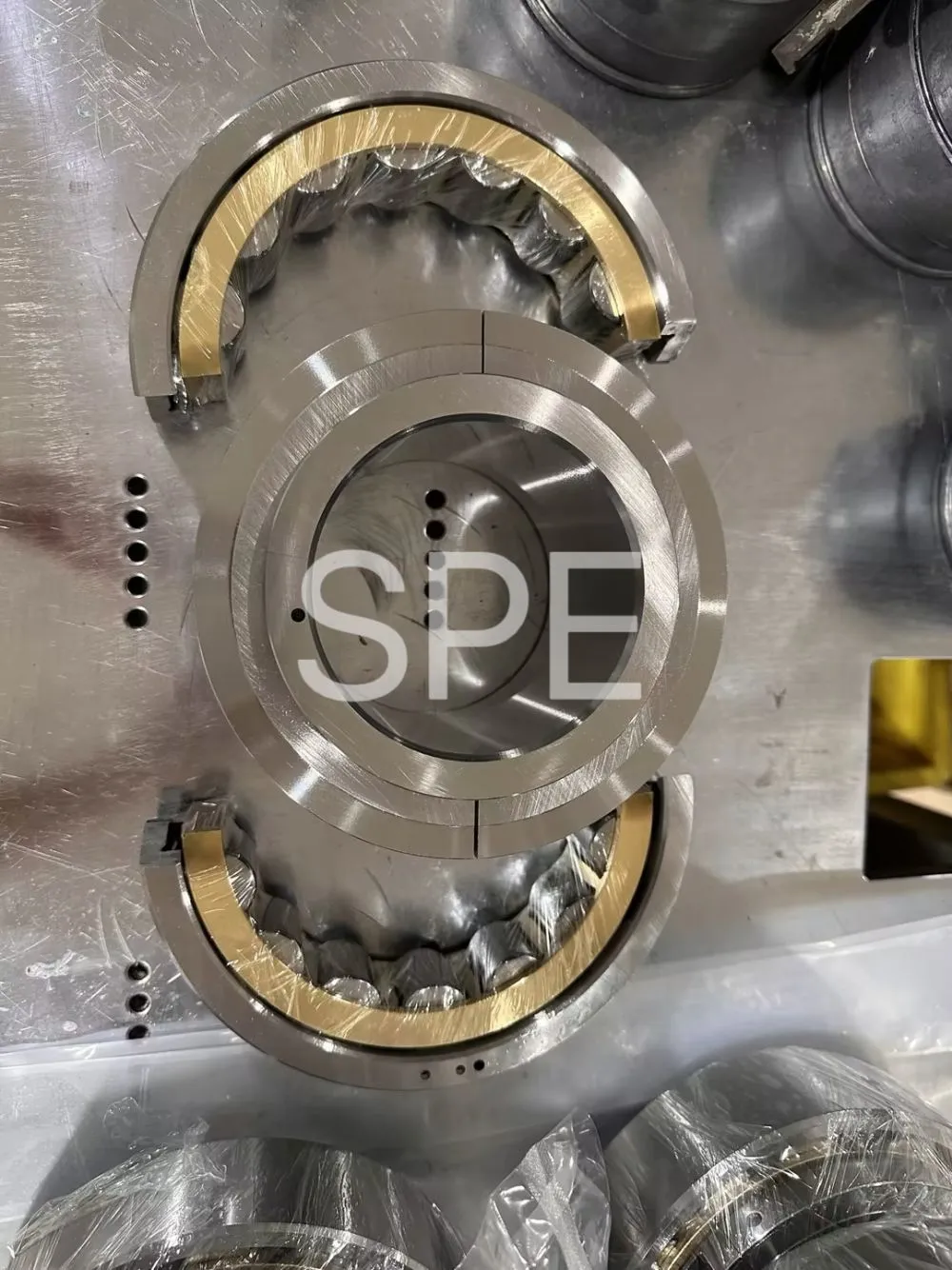

Fully split design: The inner ring, outer ring, roller, and cage are all split in half, allowing direct assembly on the shaft without dismantling the shaft or coupling, significantly reducing maintenance downtime.
Enhanced Load-bearing (E): Based on the 01 series, it features an enhanced design with outstanding radial heavy-load capacity, suitable for impact and continuous heavy-load scenarios.
Two types of functions
EX (floating end): The outer ring has no ribs, allowing the shaft to move axially without friction, compensating for thermal expansion, and only bearing radial forces.
GR (fixed end): The outer ring features double ribs, allowing for bidirectional axial positioning and simultaneously withstanding radial and bidirectional axial forces.

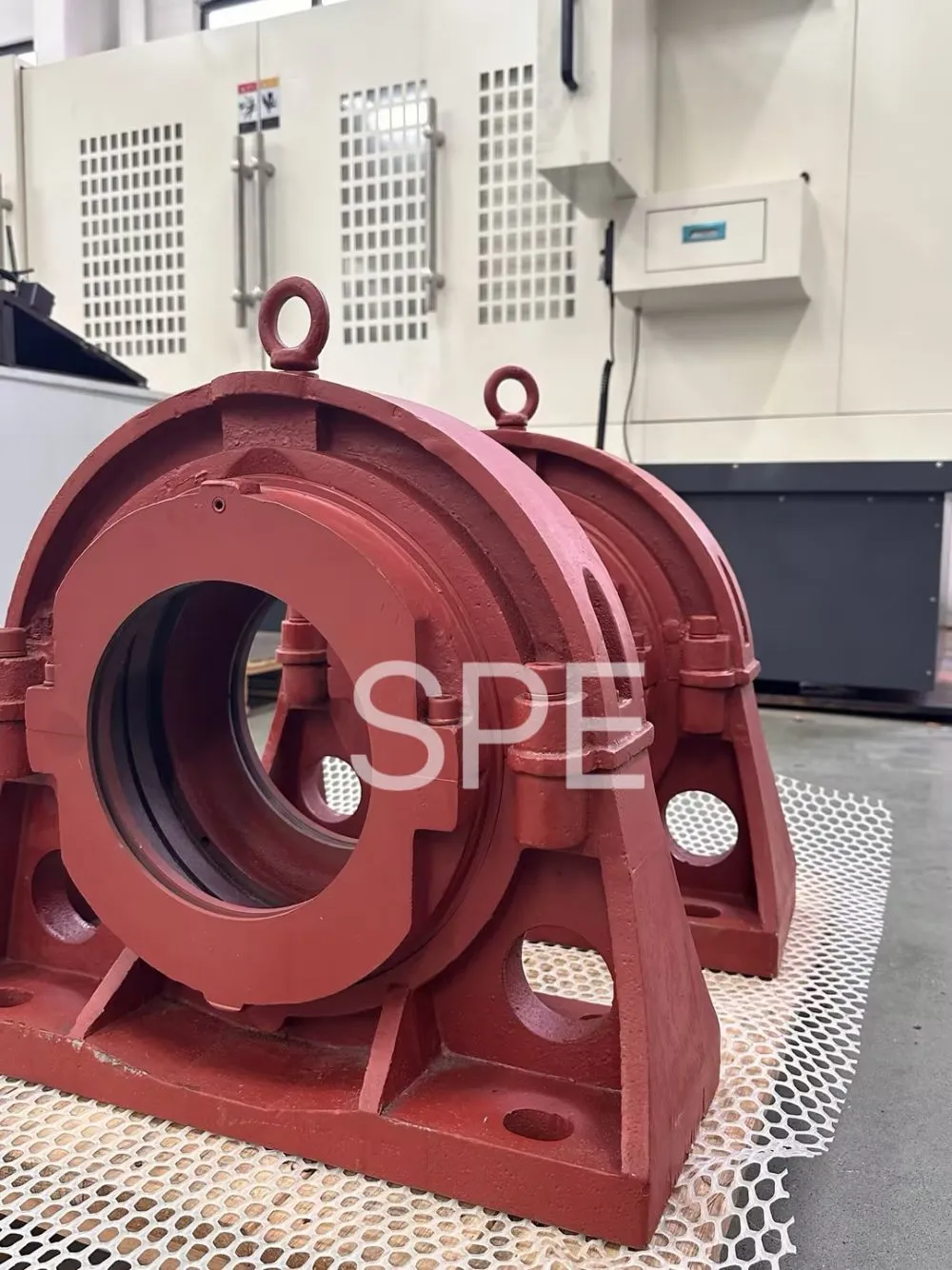

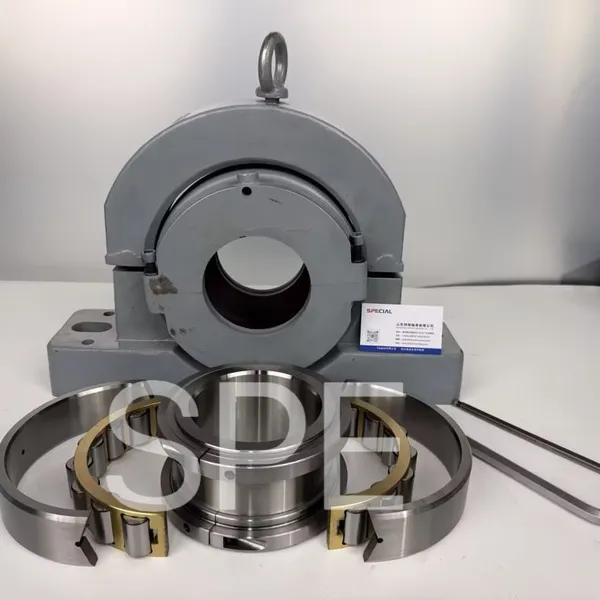

Misalignment compensation: It is compatible with SKF Cooper split bearing housings, capable of compensating for minor static misalignment and reducing the installation accuracy requirements.
III. Model Interpretation
01: Code for the medium-sized series
E: Enhanced design
B: Cylindrical roller bearing
45: Inner diameter code (45 mm)
M: Brass solid cage
EX/GR: Floating end/Fixed end suffix
IV. Typical Applications
Conveying equipment: belt conveyor, roller conveyor line
Fans/Pumps: Large centrifugal fans, industrial water pumps
Mining machinery: crusher, ball mill, scraper conveyor
Metallurgy / Building Materials: Rolling mills, kilns, extrusion equipment
Others: difficult-to-dismantle shafts, heavy-load, medium and low-speed working conditions of paper machines, sugar machines, port machinery, etc.
V. Key points of installation and lubrication
Installation: Clean the shaft and bearing seat, assemble them in half and tighten them evenly to avoid unilateral stress; they must be used with matching split bearing seats.
Lubrication: Grease lubrication (2# extreme pressure lithium base grease is recommended) or oil lubrication. Regularly replenish grease/change oil to prevent dry friction and overheating.
