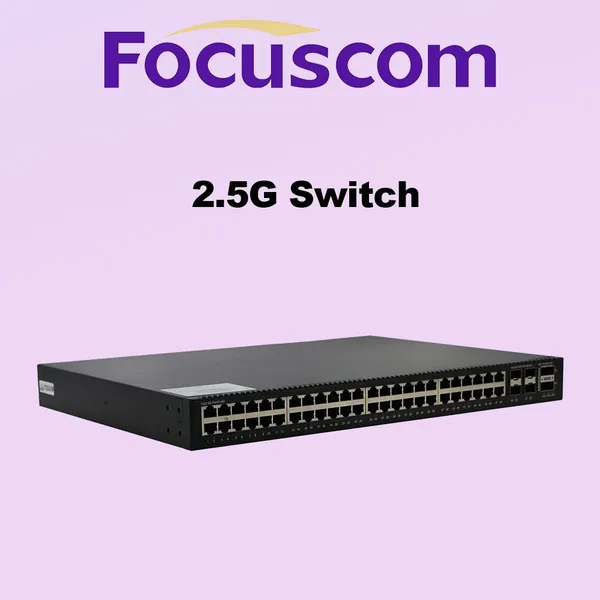

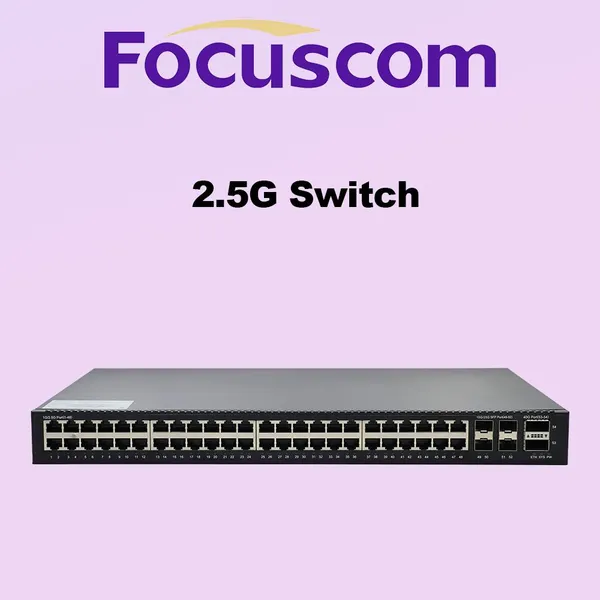

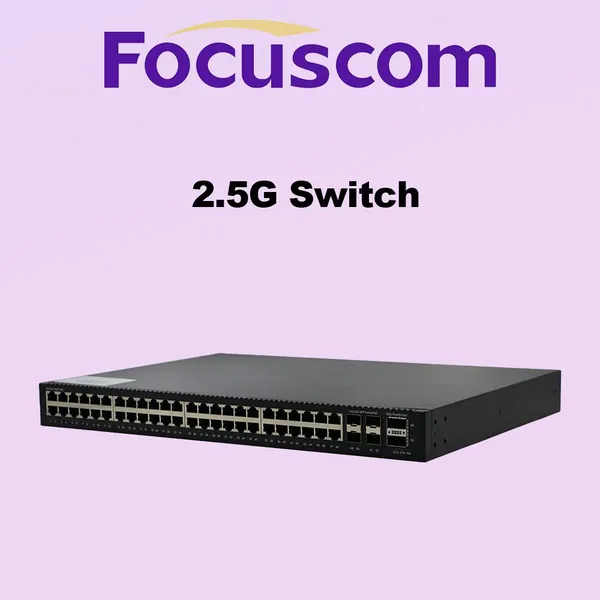

The Focuscom S5860-48M4X2Q is a high-performance, next-generation Layer 3 managed switch designed to meet the high-density and high-bandwidth requirements of modern data centers and large-scale enterprise networks.
Key Hardware Features
Versatile Port Configuration: Equipped with 48x 100M/1000M/2.5G Base-T RJ45 ports for high-speed access, complemented by 4x 10G/25G SFP28 and 2x 40G QSFP+ uplink ports to prevent bottlenecks.
Superior Performance: Features a 600 Gbps switching capacity and a 446.43 Mpps forwarding rate, ensuring non-blocking wire-speed performance for data-intensive applications.
Carrier-Grade Reliability: Supports 1+1 hot-swappable power supplies and smart redundant fans. It also features hardware-level protection to ensure 24/7 continuous operation.
Advanced Software & Management
L3 Routing & Virtualization: Supports comprehensive Layer 3 protocols including Static Routing, OSPF, BGP, and VRRP. It also enables Virtual Switch Framework (VSF) stacking for unified management of multiple devices.
Robust Security: Integrated with advanced security features like ACL, RADIUS, TACACS+, and DHCP Snooping to protect against unauthorized access and network attacks.
Intelligent Monitoring: Supports sFlow for real-time network traffic analysis and provides flexible management options via WEB, CLI, SNMP, and SSH.
Technical Specifications Table
| Feature | Specification |
| Model | S5860-48M4X2Q |
| Fixed Ports | 48x 2.5G RJ45, 4x 25G SFP28, 2x 40G QSFP+ |
| Switching Capacity | 600 Gbps |
| Forwarding Rate | 446.43 Mpps |
| Power Supply | 100–240V AC, Redundant (1+1) |
| Dimensions | 440 x 330 x 44 mm (1U Rackmount) |
| Operating Temp | -10°C to 50°C |
This switch is the ideal solution for enterprises seeking to upgrade their network infrastructure to multi-gigabit speeds while maintaining professional-grade stability and security.
