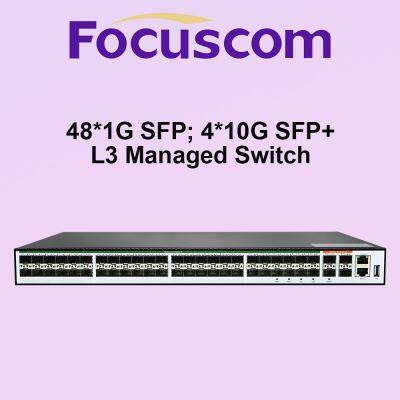

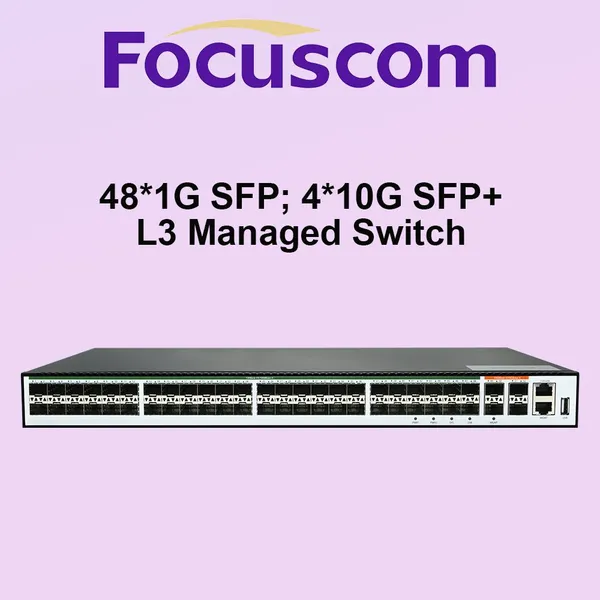

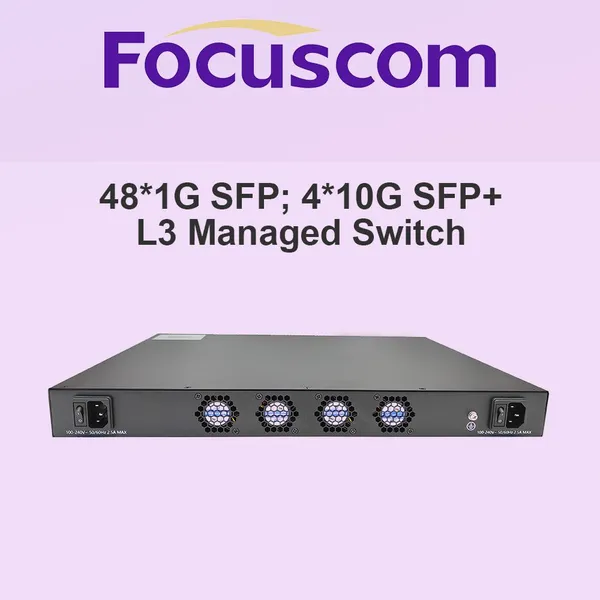

Help CenterL3 Managed Gigabit Fiber Switch With MPLS, 48-Port SFP and 4-Port 10G SFP+ Uplink, Enterprise-Level Access Switch Focuscom S5630-48SF4SX
Product Spotlights
Supports L3 routing, advanced security features, and energy-efficient design for enterprise networks.
Stackable Switch, up to 8 units!
MPLS Function
Related Products
-
Fiber Switch L3 Managed 24 Port 1G 4 COMBO Port Networking Switch for Access LayerNegotiableMOQ: 1 Unit -
L3 Managed Switch 8-Port Gigabit Ethernet With 4x10G SFP+ Uplink High-Performance Enterprise Network Routing Switch Focuscom S5710-12TXNegotiableMOQ: 1 Unit
-
L3 Managed Enterprise Switch, 24-Port Gigabit RJ45 With 4x10G SFP+ Uplinks, Layer 3 Access Ethernet Network Switch Focuscom S5710-28TXNegotiableMOQ: 1 Unit
-
L3 Managed Access Layer Switch, 24 Port Gigabit Ethernet & 4 SFP Uplink Enterprise Network Switch With Static Routing POE Switch Focus S5710-28TPNegotiableMOQ: 1 Unit
-
Gigabit L3 Managed Network Switch, 24-Port SFP & 4-Port 10G SFP+ Uplink, High-Performance Enterprise Ethernet Access Fiber Switch Focus S5710-28SXNegotiableMOQ: 1 Unit
Product Overview
The S5630-48SF4SX is a high-performance Layer 3 managed gigabit fiber switch designed for enterprise-level access and aggregation layers. With a rich array of ports and advanced software features, it provides a reliable, secure, and scalable solution for modern networking requirements.
Key Features
High Port Density: Equipped with 48 x 100/1000Base-X SFP ports and 4 x 10G SFP+ uplink ports to handle massive data throughput.
Layer 3 Routing: Supports static routing and advanced routing protocols (RIP, OSPF) to enable efficient traffic management between VLANs.
Enhanced Security: Features comprehensive security protocols including ACLs, 802.1X authentication, and DHCP Snooping to protect against network threats.
Reliability & Resilience: Supports G.8032 ERPS (Ethernet Ring Protection Switching) for sub-50ms recovery and link aggregation (LACP).
Management & Maintenance: Full support for SNMP v1/v2/v3, Web Management, CLI (Console/Telnet/SSH), and RMON.
Technical Specifications
| Feature | Specification |
| Fixed Ports | 48 x SFP Ports, 4 x 10G SFP+ Ports, 1 x Console Port |
| Switching Capacity | 176Gbps |
| Forwarding Rate | 132Mpps |
| MAC Address Table | 16K |
| VLAN Support | 4K VLANs, QinQ, Voice VLAN |
| Layer 3 Features | Static Routing, RIP, OSPF, IPv4/IPv6 Dual Stack |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions | 440mm x 280mm x 44mm (Standard 1U) |
Application Scenarios
Enterprise Networks: Ideal for use as an access switch in large-scale office environments requiring high-speed fiber connectivity.
Data Centers: Suitable for top-of-rack (ToR) deployment to connect servers with high-speed uplinks.
Campus Networks: Provides a robust backbone for schools or hospitals to manage high volumes of concurrent users.
