Product Overview

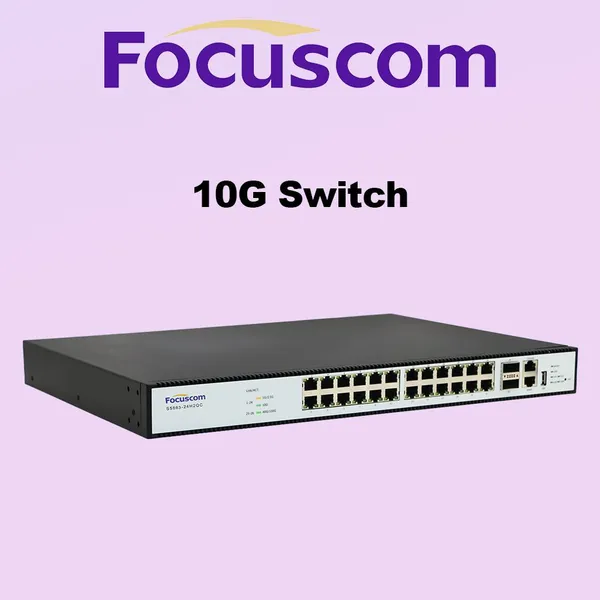

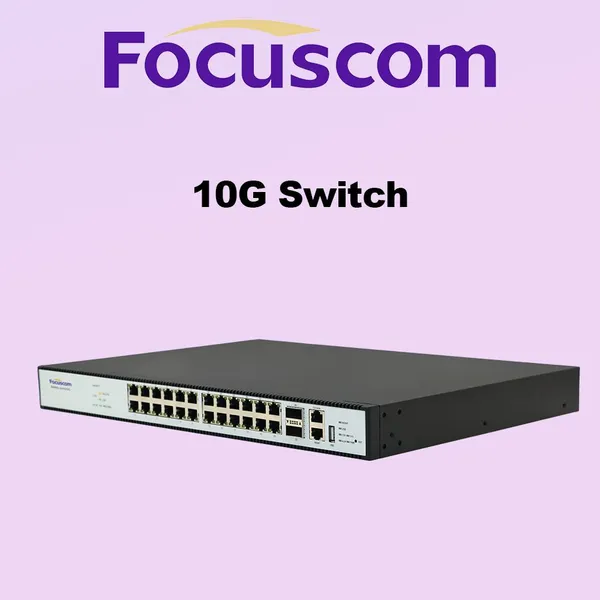

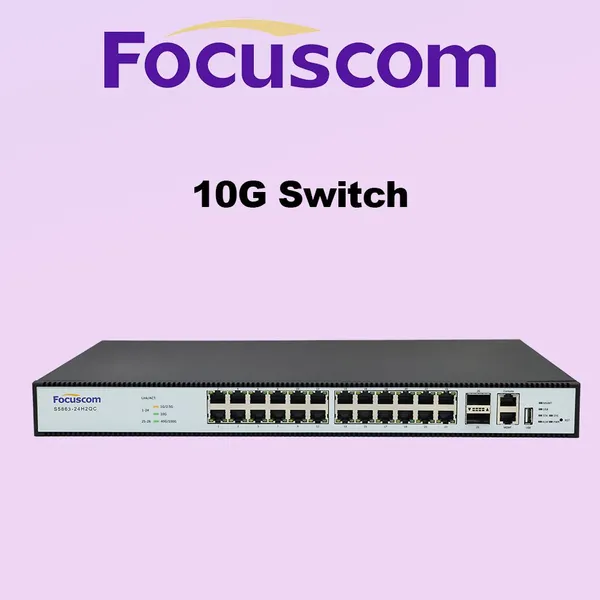

The Focuscom S5863-24H2QC is a next-generation, high-performance Terabit Layer 3 managed switch designed for enterprise centers and campus aggregation layers. It provides a flexible combination of high-density 10GbE ports and ultra-high-speed 100GbE uplinks to eliminate network bottlenecks.
Key Technical Specifications:
Port Configuration: 24 × 10G SFP+ optical ports and 2 × 100G QSFP28 uplink ports.
Switching Capacity: 880Gbps high-speed backplane for wire-speed forwarding.
Forwarding Rate: 654.72 Mpps.
Layer 3 Features: Supports static routing, RIP, OSPF, and BGP protocols for complex networking environments.
Reliability: 1+1 redundant hot-swappable power modules (AC/DC options) and smart fan adjustment for superior thermal management.
Advanced Software Features:
Comprehensive Security: Features ACLs, Port Security, 802.1X authentication, and ARP inspection to protect against network attacks.
Traffic Management: Advanced QoS (Quality of Service) policies prioritize critical data like voice and video traffic.
Management Options: Supports CLI (Console/Telnet/SSH), SNMP v1/v2/v3, and Web-based GUI for easy configuration and monitoring.
Ideal Application Scenarios:
Data Centers: High-speed server connectivity and Top-of-Rack (ToR) deployment.
Campus Networks: Acts as a robust aggregation layer to link access switches to the core.
ISP Networks: Efficiently handles high-bandwidth metropolitan area network traffic.
