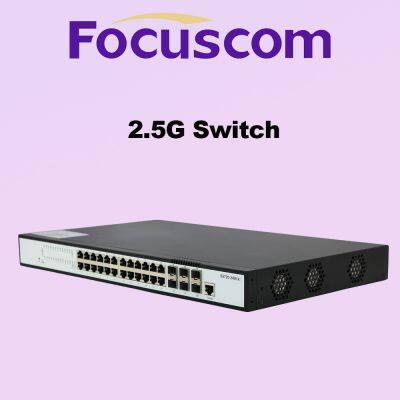

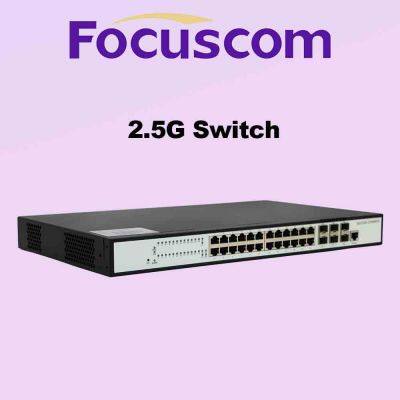

Help CenterS5720-24M6X L3 Managed Network Switch, 24-Port 2.5G RJ45 With 6-Port 10G SFP+ Uplinks, Stackable Enterprise Access Layer Ethernet Networking Switch
Product Spotlights
Related Products
-
Focuscom S5720-24MP6X Layer 3 Managed PoE Switch, 24-Port 2.5G Base-T and 6-Port 10G SFP+ Uplink, Enterprise Ethernet Network SwitchNegotiableMOQ: 1 Unit -
Focuscom S5860-48M4X2Q L3 Managed Data Center Switch, 48-Port 2.5G Base-T, 4x 25G SFP28 & 2x 40G QSFP+ Uplinks, High-Density Network SwitchNegotiableMOQ: 1 Unit
-
Focuscom S5630-24TS4SX Layer 3 Managed Gigabit Ethernet Switch, 24-Port 1G COMBO With 4-Port 10G SFP+ Uplinks, Enterprise Network Access SwitchNegotiableMOQ: 1 Unit
-
Focuslink S5630-48SF4SX L3 Managed Gigabit Fiber Switch, 48-Port SFP and 4-Port 10G SFP+ Uplink, Enterprise-Level High-Performance Access SwitchNegotiableMOQ: 1 Unit
-
Focuscom S5710-12TX L3 Managed Switch 8-Port Gigabit Ethernet With 4x10G SFP+ Uplink High-Performance Enterprise Network Routing SwitchNegotiableMOQ: 1 Unit
Product Overview
The S5720-24M6X is a next-generation Layer 3 managed stackable Ethernet switch designed for high-bandwidth enterprise campus networks and data center access. It provides a powerful combination of 24 x 2.5G Base-T RJ45 ports and 6 x 10G SFP+ uplink ports, delivering the speed required for modern Wi-Fi 6 APs, high-speed NAS, and intensive data processing.
Key Features & Technical Specifications
High-Speed Connectivity: Equipped with 24 multi-gigabit (2.5G) ports to eliminate bottlenecks at the access layer.
Powerful Uplinks: 6 dedicated 10G SFP+ slots ensure high-speed connectivity to core switches or servers.
Advanced Layer 3 Functions: Supports static routing, RIP V1/V2, OSPF, and VRRP protocols for efficient traffic management.
Reliability & Redundancy: Features support for STP/RSTP/MSTP, LACP, and ERPS (Ethernet Ring Protection Switching) for carrier-level stability and fast failover.
Stacking Capability: Supports hardware stacking to simplify management and increase network resiliency.
Enhanced Security: Integrated with comprehensive security policies, including ACLs, MAC address filtering, and 802.1X authentication.
Hardware Parameters
| Attribute | Specification |
| Fixed Ports | 24100/1000M/2.5G Base-T RJ45, 610G SFP+ |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 178.57 Mpps |
| MAC Address Table | 32K |
| Power Supply | AC: 100V–240V, 47/63Hz; DC: -40V to -60V |
| Dimensions | 440 x 260 x 44 mm |
| Operating Temp | -10°C to 50°C |
