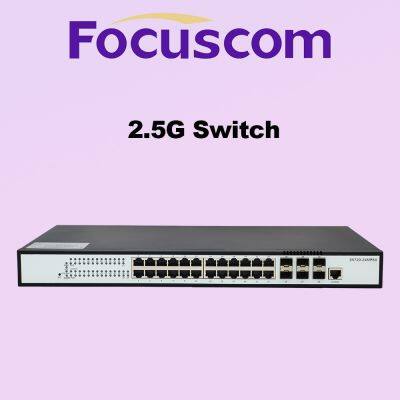

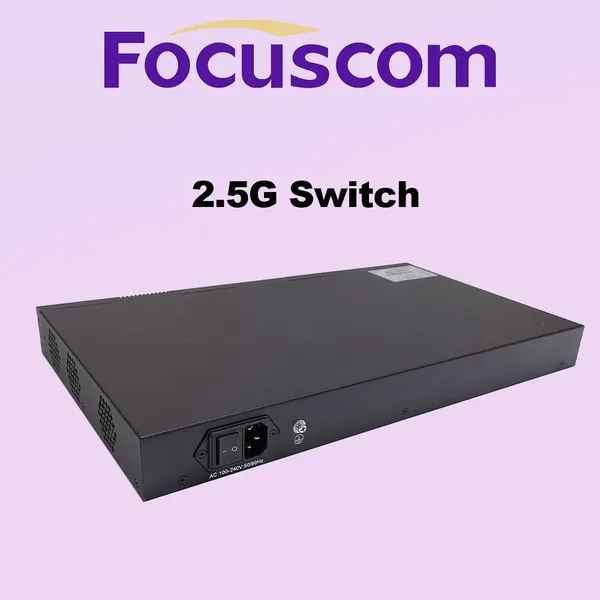

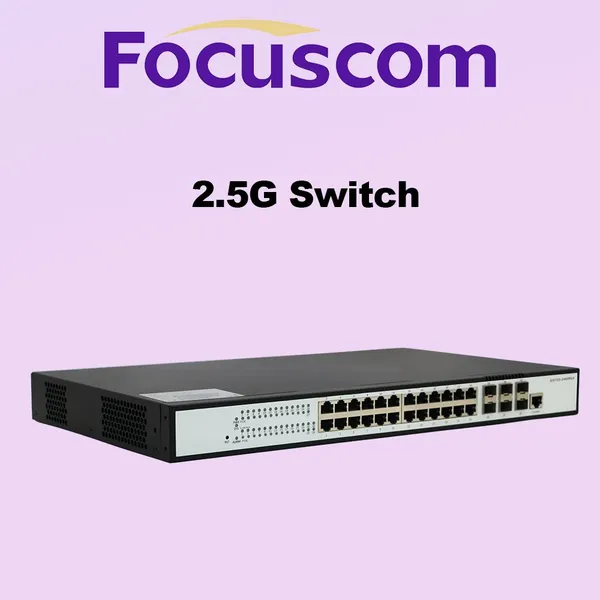

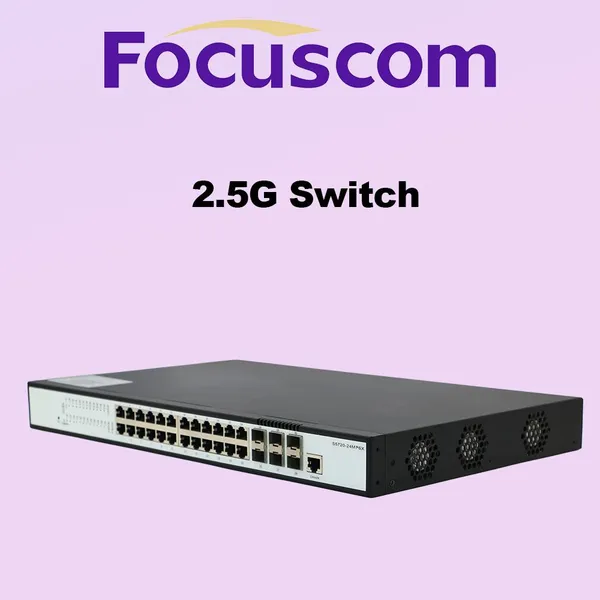

Help CenterFocuscom S5720-24MP6X Layer 3 Managed PoE Switch, 24-Port 2.5G Base-T and 6-Port 10G SFP+ Uplink, Enterprise Ethernet Network Switch
Product Spotlights
Related Products
-
Focuscom S5860-48M4X2Q L3 Managed Data Center Switch, 48-Port 2.5G Base-T, 4x 25G SFP28 & 2x 40G QSFP+ Uplinks, High-Density Network SwitchNegotiableMOQ: 1 Unit -
Focuscom S5630-24TS4SX Layer 3 Managed Gigabit Ethernet Switch, 24-Port 1G COMBO With 4-Port 10G SFP+ Uplinks, Enterprise Network Access SwitchNegotiableMOQ: 1 Unit
-
Focuslink S5630-48SF4SX L3 Managed Gigabit Fiber Switch, 48-Port SFP and 4-Port 10G SFP+ Uplink, Enterprise-Level High-Performance Access SwitchNegotiableMOQ: 1 Unit
-
Focuscom S5710-12TX L3 Managed Switch 8-Port Gigabit Ethernet With 4x10G SFP+ Uplink High-Performance Enterprise Network Routing SwitchNegotiableMOQ: 1 Unit
-
Focuscom S5710-28TX L3 Managed Enterprise Switch, 24-Port Gigabit RJ45 With 4x10G SFP+ Uplinks, Layer 3 Access Ethernet Network SwitchNegotiableMOQ: 1 Unit
Product Overview:
The S5720-24MP6X is a next-generation high-performance Layer 3 managed Ethernet switch designed for enterprise campus networks and data centers. It features 24 multi-gigabit (2.5G) ports with PoE+ support, providing high-speed connectivity for Wi-Fi 6 APs, IP cameras, and IoT devices, combined with 6 high-speed 10G SFP+ uplink ports for seamless data aggregation.
Key Features:
Multi-Gigabit Access: 24 x 10/100/1000M/2.5G Base-T RJ45 ports to meet the high bandwidth demands of modern networks.
Power over Ethernet: Supports PoE+ (802.3at/af) to simplify deployment of powered devices.
10G Uplinks: 6 x 10GE SFP+ ports ensure zero-bottleneck transmission to the core network.
Layer 3 Routing: Supports advanced L3 protocols including Static Route, OSPF, RIP, and BGP for efficient traffic management.
Superior Performance: 240Gbps switching capacity and 178.56Mpps forwarding rate.
Robust Security: Integrated with ACL, ARP/DHCP protection, and Tacacs+/Radius authentication for a secure networking environment.
Reliability: Supports redundancy protocols such as STP/RSTP/MSTP, ERPS, and LACP.
Technical Specifications:
| Feature | Specification |
| Model | S5720-24MP6X |
| Fixed Ports | 242.5G PoE ports, 610G SFP+ ports |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 178.56 Mpps |
| MAC Address Table | 32K |
| PoE Support | IEEE 802.3af/at |
| Power Supply | AC 100-240V, 47/63Hz |
| Operating Temp | -15°C to 55°C |
| Dimensions | 440mm x 260mm x 44mm |
