Overview

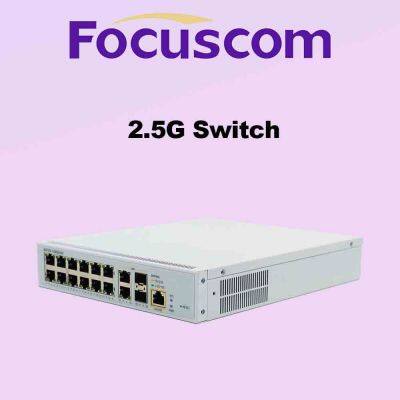

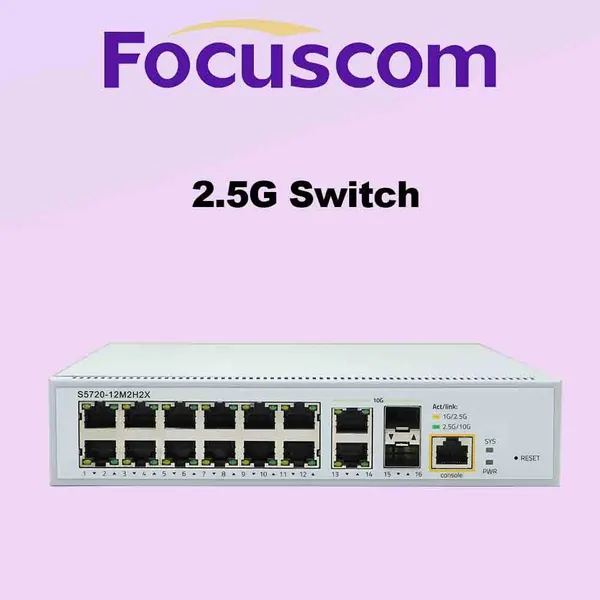

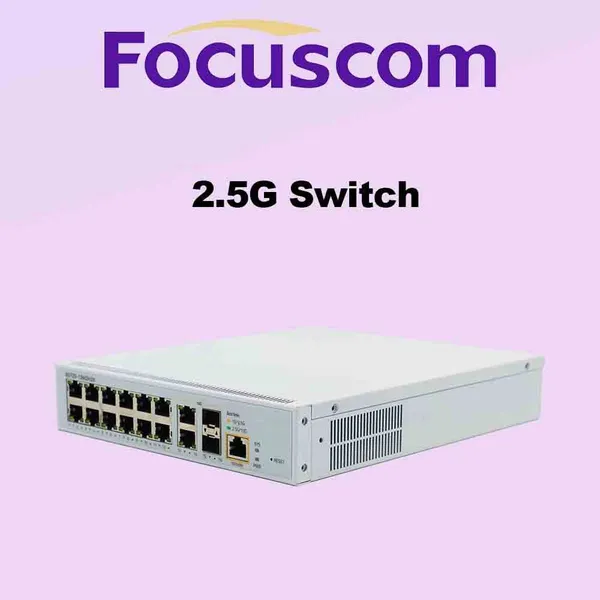

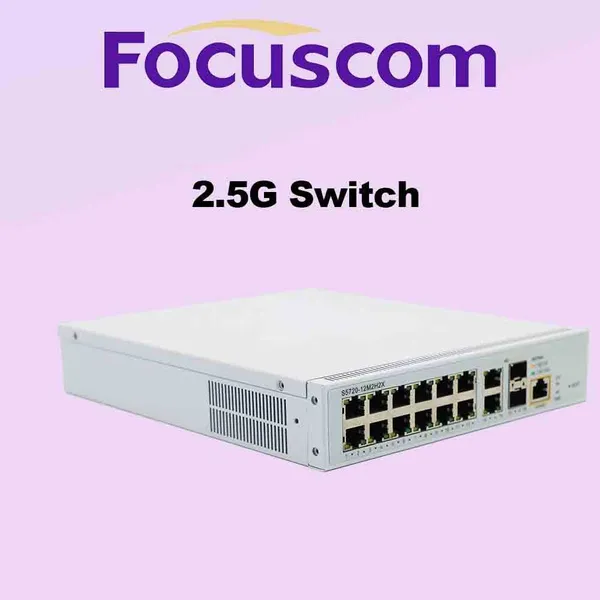

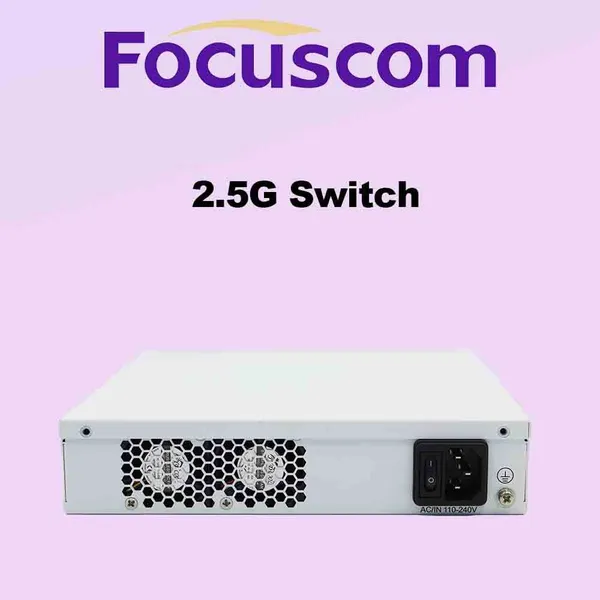

The S5720-12M2H2X-25G is a next-generation high-performance Layer 3 managed switch designed for enterprise networks and data center access. It provides flexible gigabit access combined with high-speed 10GbE and 25GbE uplink ports, making it an ideal solution for modern high-bandwidth applications.
Technical Specifications:
Downlink Ports: 12 x 10/100/1000Base-T Ethernet ports.
Uplink Ports: 2 x 25G SFP28 ports and 2 x 10G SFP+ ports.
Forwarding Performance: High-speed packet forwarding with low latency.
Switching Capacity: Large backplane bandwidth for non-blocking data transfer.
Key Features:
Advanced Layer 3 Features: Includes support for static routing, RIP, OSPF, and BGP, allowing for complex network topologies and efficient traffic management.
Superior Reliability: Built-in protection against DoS attacks, unauthorized access, and IP spoofing. Supports STP, RSTP, and MSTP for loop prevention.
Easy Management: Supports SNMP v1/v2/v3, CLI, Web-based management, and Telnet, providing flexible options for network administrators.
Energy Efficiency: Complies with Energy Efficient Ethernet (EEE) standards, significantly reducing power consumption without sacrificing performance.
Application Scenarios:
Enterprise Campus: Used as an access or aggregation switch to provide high-speed connectivity to desktops and wireless APs.
Data Centers: Provides reliable 10G/25G server access for small to medium-sized data centers.
Education and Government: Provides a secure, manageable, and scalable backbone for institutional networks.
Package Includes:
1 x S5720-12M2H2X-25G Main Unit
1 x Power Cord
1 x Rack Mount Kit
Quick Start Guide
