Overview

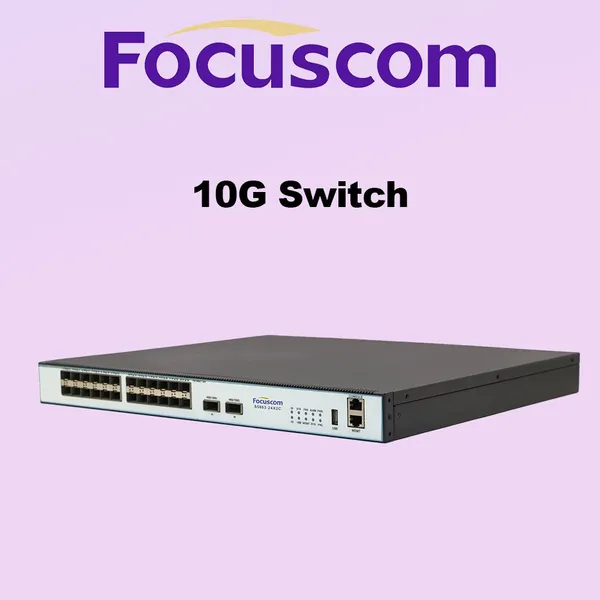

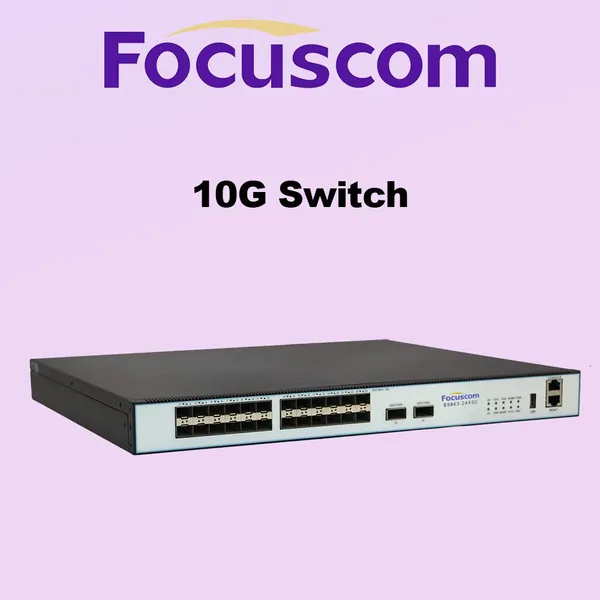

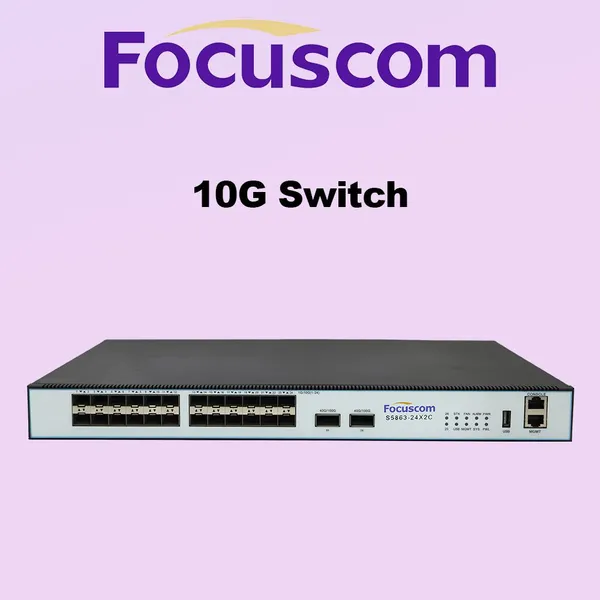

The Focus S5863-24X2C is a high-performance Layer 3 managed aggregation switch designed for next-generation enterprise networks and data centers. It provides 24x 10G SFP+ fiber ports and 2x 100G QSFP28 uplink ports, ensuring non-blocking wire-speed forwarding and exceptional reliability.
Key Features:
Advanced Hardware Architecture: Equipped with high-speed switching chips to handle massive data throughput at the aggregation or core layer.
High-Speed Uplinks: The dual 100G QSFP28 ports eliminate bandwidth bottlenecks, providing seamless connectivity to the network core.
Comprehensive L3 Functionality: Supports static routing, RIP, OSPF, and BGP protocols, alongside advanced VLAN mapping and multicast support (IGMP/MLD Snooping).

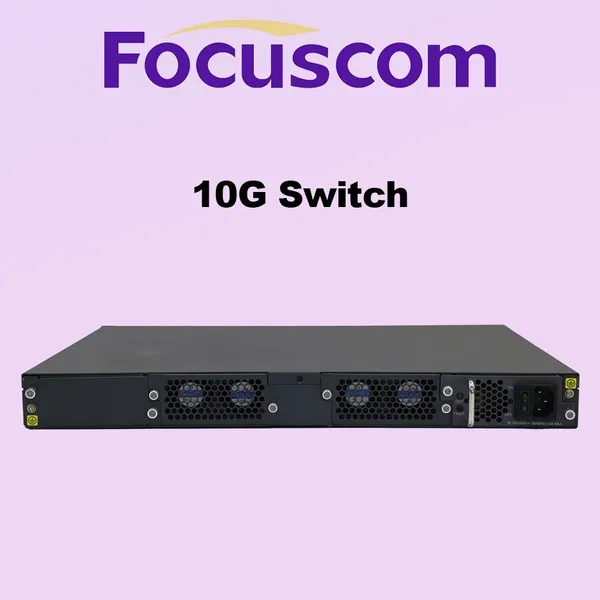

Carrier-Grade Reliability: Supports hot-swappable redundant power supplies and efficient cooling systems to ensure 24/7 uninterrupted operation.
Enhanced Security: Integrated with ACLs, hardware-based DoS protection, and port security features to safeguard your network against unauthorized access.
Technical Specifications:
| Feature | Specification |
| Model | S5863-24X2C |
| Fixed Ports | 24 x 10G SFP+, 2 x 100G QSFP28 |
| Management Ports | 1 x Console, 1 x MGMT (RJ45) |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 654 Mpps |
| MAC Address Table | 32K |
| Power Supply | AC/DC Redundant (Hot-swappable) |
| Dimensions | Standard 1U Rackmount |
Applications:
Ideal for Medium to Large Enterprise Aggregation, Data Center Top-of-Rack (ToR) deployments, and high-bandwidth Campus Network Cores.
