Home > Manufacturing & Processing Machinery > Casting & Forging > Hot Forging > Step-Type Fan Shaft Forgings | Forged Components | Factory Customization

Step-Type Fan Shaft Forgings | Forged Components | Factory Customization

Step-Type Fan Shaft Forgings | Forged Components | Factory Customization thumbnail-3

Step-Type Fan Shaft Forgings | Forged Components | Factory Customization thumbnail-4

Step-Type Fan Shaft Forgings | Forged Components | Factory Customization photo-1

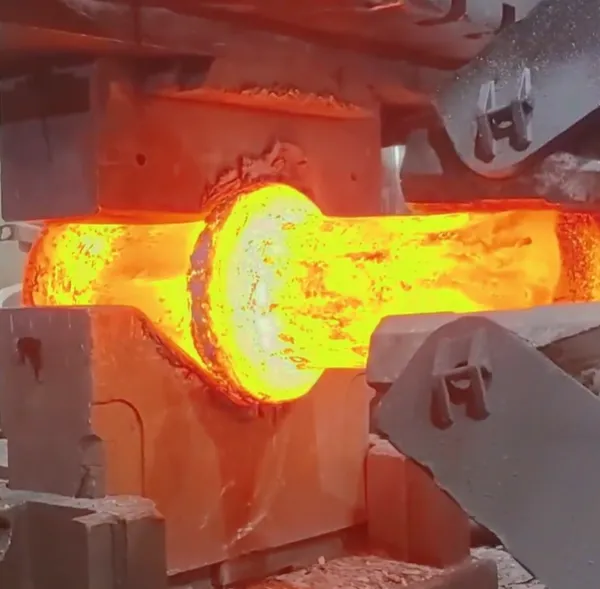

Step-Type Fan Shaft Forgings | Forged Components | Factory Customization photo-2

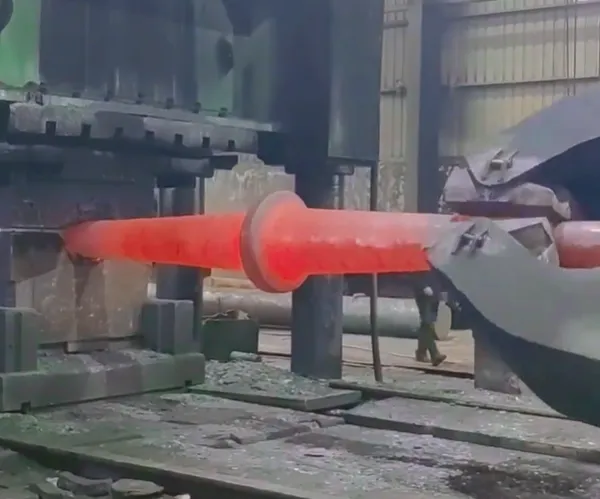

Step-Type Fan Shaft Forgings | Forged Components | Factory Customization photo-3

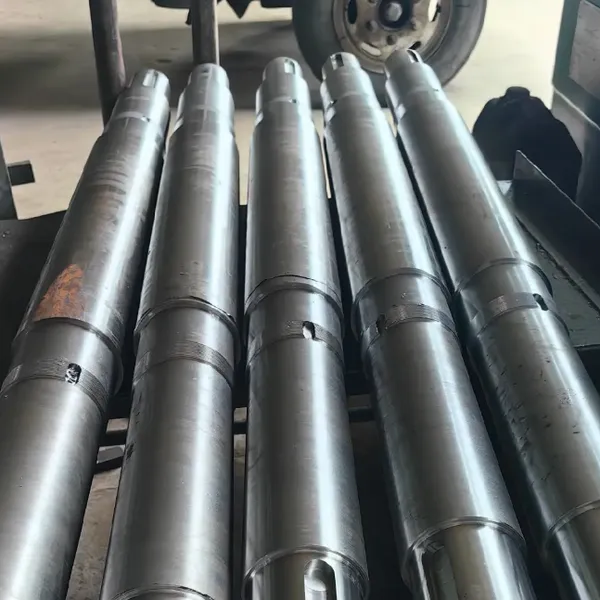

Step-Type Fan Shaft Forgings | Forged Components | Factory Customization photo-4

Product Spotlights

We are a high-tech enterprise deeply engaged in the field of fan shaft forgings, specializing in the R&D, production and service of step-type fan shafts.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Steel

Certification:

ISO 9001:2008

Application:

Machinery Parts

Contact Supplier Request Quote Chat Now

Shandong Qingliang Mold Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Material Steel

Certification ISO 9001:2008

Application Machinery Parts

Surface Treatment Oxidation

Standard GB

Processing Object Metal

Molding Style Forging

Molding Technics Other, Forging

Forging Tolerance +/-0.5mm

Heat Treatment Quenching

Transport Package As per customer requirements

Specification No limit

Trademark Not Applicable

Origin Zhangqiu District, Jinan City, Shandong Province, P.R.China

Basic Introduction to Step-Type Fan Shaft Forgings | Forged Components | Factory Customization

Founded in 2011, Shandong Qingliang Mould Technology Co., Ltd. is a high-tech enterprise deeply engaged in the field of fan shaft forgings, specializing in the R&D, production and services of step-type fan shafts. Guided by our mission of "Precision Forging the Core of Fan Power, Enabling Stable Operation of Ventilation Equipment", relying on multi-directional forging technology, stepped shaft precision forming process and full-condition adaptive quality control system, we provide global customers with tough, fatigue-resistant, weather and corrosion-resistant step-type fan shaft forging solutions, and have become a long-term supporting supplier for key enterprises in industries including ventilation equipment manufacturing, electric power, metallurgy and chemical engineering.

Performance Features of Step-Type Fan Shaft Forgings, Forged Components & Factory Customization

Performance Features of Step-Type Fan Shaft Forgings

Premium Billet Selection, Quality Control at the Source

The raw materials are alloy steel billets (40Cr, 35CrMo, 42CrMo, etc.) produced by electric arc furnace (EAF) melting + ladle furnace (LF) refining + vacuum degassing (VD). We strictly control sulfur and phosphorus impurity contents, conduct dual composition testing before and after furnace treatment to eliminate composition deviations, and ensure the basic mechanical properties, torsion resistance and alternating load resistance of forgings from the source.

Specialized Forging for Stepped Shafts, Optimized Metal Flow Lines

With a forging ratio of ≥3.0 (≥5.0 for heavy-duty shafts), we adopt a multi-stage upsetting + drawing + stepwise precision forging process. The metal flow direction is optimized according to the stress characteristics of different shaft diameter sections of the stepped shaft, ensuring continuous flow lines along the axial direction, full penetration and no defects at the shaft shoulder transition, significantly improving the torsion resistance and alternating load resistance of the shaft body.

Customized Heat Treatment, Balancing Strength and Toughness

We customize exclusive heat treatment solutions for different materials and fan operating conditions, using quenching and tempering (quenching + high-temperature tempering). By controlling the tempering temperature and cooling rate, the hardness uniformity of the forging is ±2HRC (conventional HRC28-32), effectively eliminating internal forging stress, balancing the strength, toughness and machinability of the shaft body, and avoiding deformation during subsequent processing and operation.

Precision Straightening & Finishing, Strict Geometric Tolerance Control

Equipped with special CNC straightening machines and finishing equipment for stepped shafts, we conduct multi-position straightening and dimension calibration on forgings. The key dimension tolerance is ≤±0.5mm, the bearing position concentricity is ≤0.02mm, the straightness is ≤0.4mm/m, and the shaft shoulder transition fillet is ≥5% of the shaft diameter, ensuring the geometric precision of the forgings meets the assembly requirements for high-speed fan operation.
