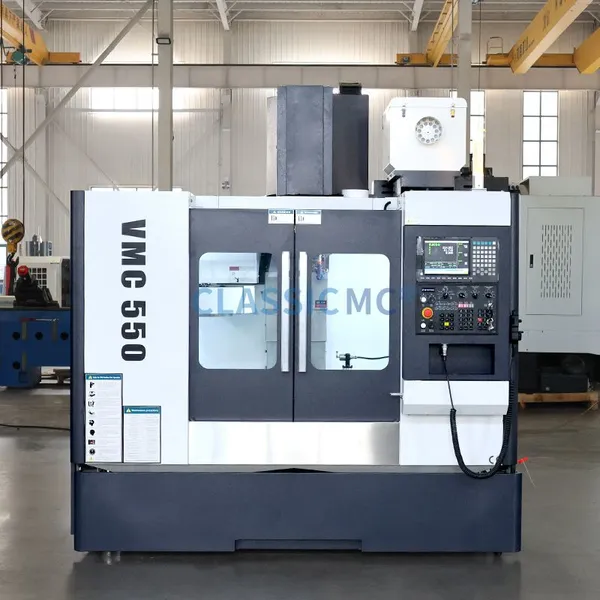

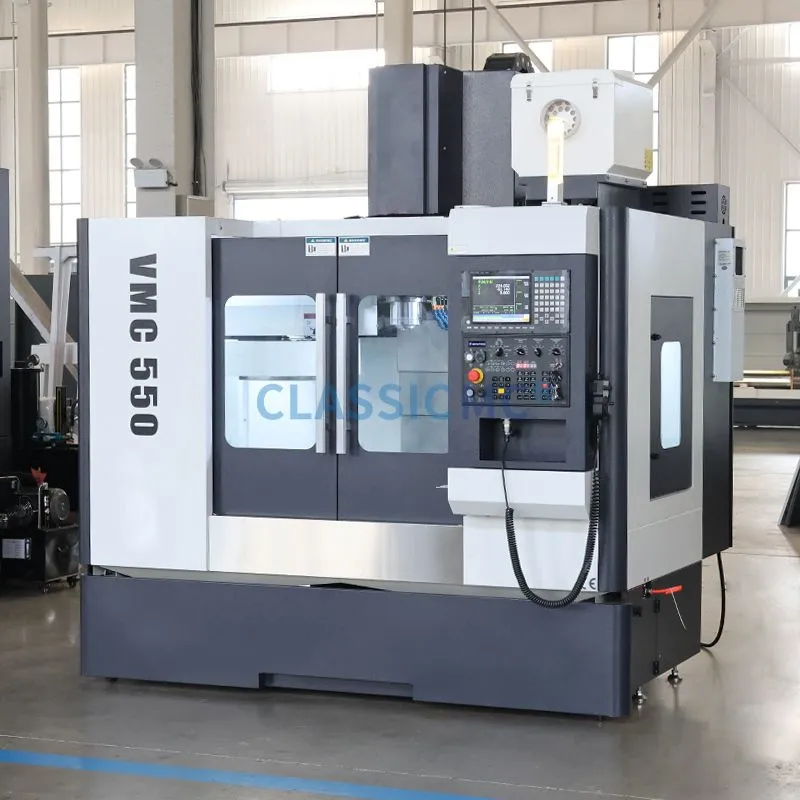

VMC550 Vertical Machining Center – Detailed Product Introduction
1. Product Overview
The VMC550 Vertical Machining Center is a compact, high-precision 3-axis CNC milling machine designed for efficient machining of small to medium-sized parts. It is widely used in mold making, automotive components, general machinery, and precision hardware industries, offering excellent value for small workshops and production lines.
2. Core Structure & Key Features
High-Rigidity Cast Iron FrameThe machine bed, column, and worktable are made of high-grade cast iron, fully stress-relieved to eliminate internal stress. This ensures minimal vibration during cutting, long-term structural stability, and consistent machining accuracy over years of use.
High-Speed Linear Guideway SystemEquipped with high-precision linear guideways on the X/Y/Z axes, the VMC550 delivers fast feed rates (up to 36 m/min) and smooth movement, reducing non-cutting time and improving overall productivity.

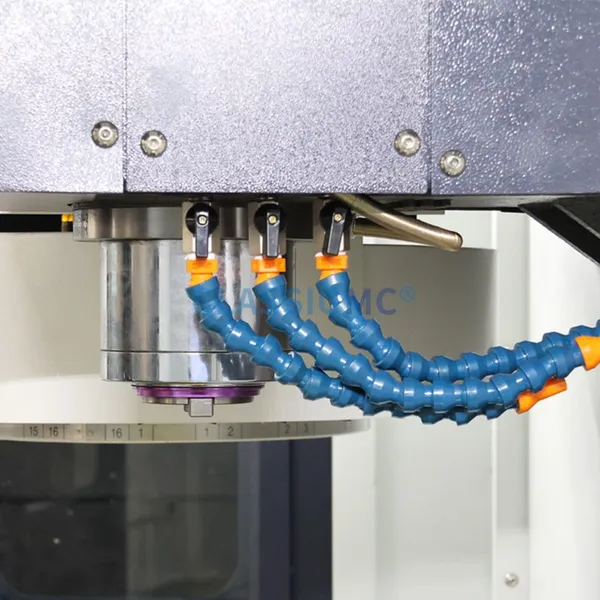

Reliable BT40 SpindleThe standard BT40 spindle is driven by a high-torque motor (7.5/11 kW) with a maximum speed of 8,000 rpm (optional 10,000/12,000 rpm). It supports both heavy roughing and fine finishing operations, suitable for steel, aluminum, and alloy materials.
Automatic Tool Changer (ATC)The machine comes with a standard 16/20-tool disc-type tool magazine, with a fast tool change time of ≤2.5 seconds. This eliminates manual tool changes, reduces downtime, and enables continuous automated machining.

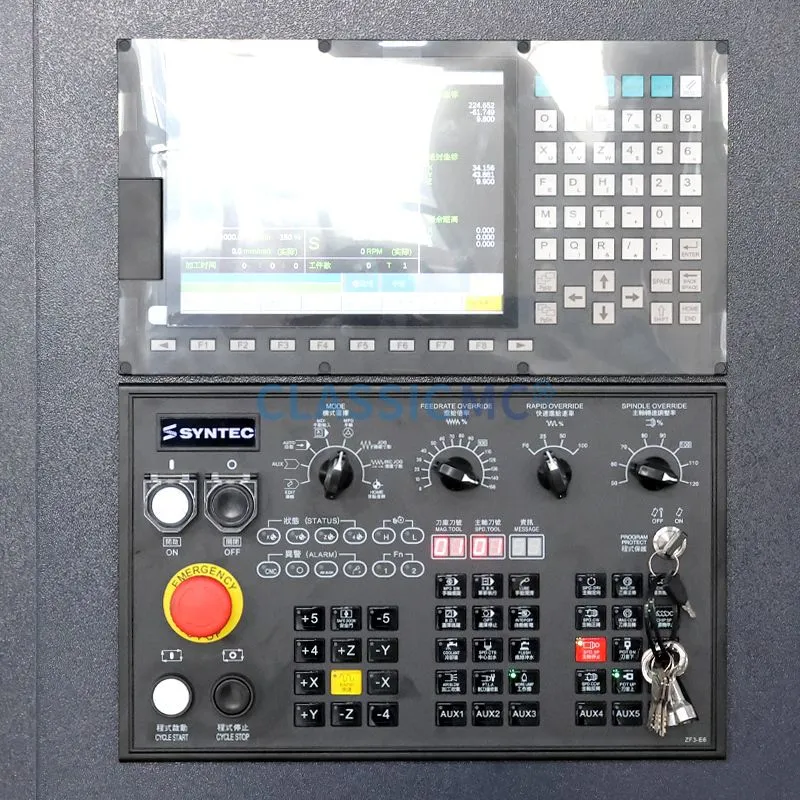

User-Friendly CNC Control SystemCompatible with mainstream control systems including FANUC, Siemens, Mitsubishi, and GSK, the VMC550 features intuitive programming, reliable performance, and easy integration with workshop workflows.
High Machining Accuracy
Positioning accuracy: ±0.005 mm
Repeat positioning accuracy: ±0.003 mmThis level of precision ensures consistent quality for tight-tolerance parts, such as molds, fixtures, and precision hardware.
3. Typical Technical Specifications (Standard Version)
4. Key Applications
The VMC550 is ideal for:
Small mold making (plastic molds, die-casting molds)
Precision hardware parts (gears, brackets, shafts)
Automotive and motorcycle components
Electronic equipment housings and fixtures
Batch production of small mechanical parts
5. Quality & After-Sales Support
All VMC550 machines are manufactured under strict quality control standards and are CE certified for international safety compliance. We provide:
1-year comprehensive warranty
On-site installation and operator training
Lifetime technical support and spare parts supply
