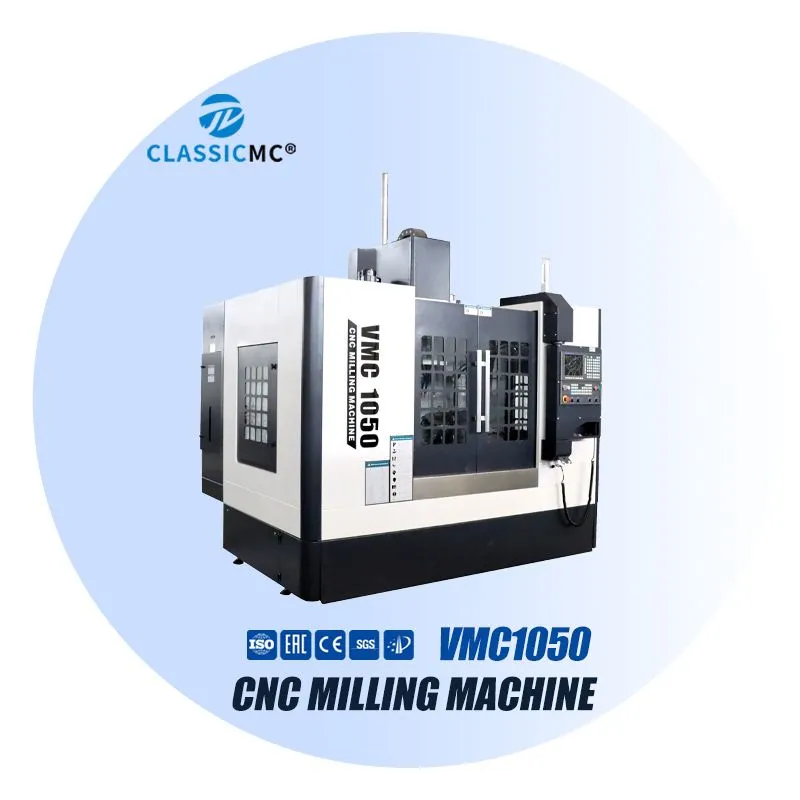

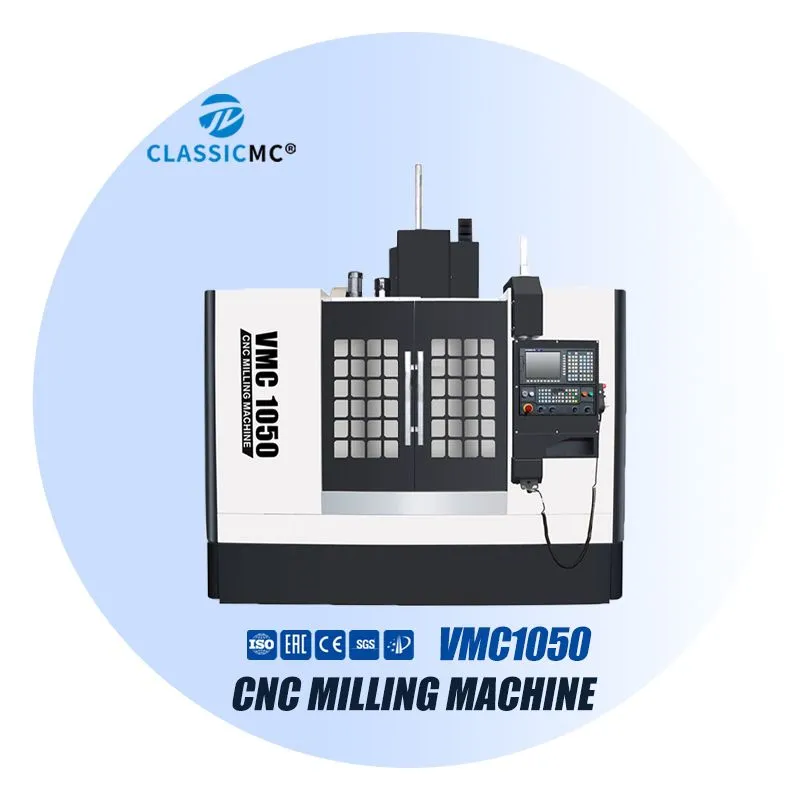

VMC1050 Vertical Machining Center
Detailed English Introduction
VMC1050 is a heavy-duty, high-rigidity 3-axis CNC vertical machining center, widely used in mold manufacturing, auto parts, aerospace, engineering machinery and precision hardware processing industries.
The whole machine is made of high-quality cast iron with strict aging treatment, excellent shock resistance and structural stability, perfectly suitable for heavy cutting of steel, cast iron and alloy workpieces.
It adopts high-precision linear guideways on X, Y, Z three axes, with fast rapid traverse speed, smooth movement and high processing efficiency. Equipped with BT40 high-power spindle, standard speed 8000rpm, optional 10000rpm / 12000rpm, strong torque and cutting capacity, meeting roughing and finishing requirements.
Standard equipped with 24-tool automatic tool magazine, fast tool change, saving auxiliary time and realizing continuous automatic production. It can be matched with FANUC, Siemens, Mitsubishi and other mainstream CNC systems, easy to operate and stable in performance.
Precision Standard
Positioning accuracy: ±0.005 mmRepeat positioning accuracy: ±0.003 mm
Main Standard Parameters
Table size: 1200×600 mm
X/Y/Z travel: 1050×600×600 mm
Spindle taper: BT40
Spindle motor power: 11/15 kW
Max load capacity: 600 kg
This model has large processing stroke, strong bearing capacity and high cost performance, ideal for medium and large molds and batch mechanical parts processing.
