Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center

Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center thumbnail-1
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center thumbnail-2
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center thumbnail-3
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center thumbnail-4
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center thumbnail-5
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center photo-1
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center photo-2
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center photo-3
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center photo-4
Gmc2014 Bt40 Universal CNC Milling Machine Double Column CNC Machining Center photo-5
US$ 49900 1 - 4 Set
US$ 38900 ≥5 Set
Key Specifications
Get Latest Price
Certification:
CE, ISO 9001, Other
Warranty:
2 Years
After-sales Service:
Online Services
Contact Supplier Request Quote Chat Now
Shandong Classic Machine Tool Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO 9001, Other
Warranty 2 Years
After-sales Service Online Services
Control Method Semi-Closed Loop Control
Application Metal
Process Usage Metal-Cutting CNC Machine Tools
Movement Method Linear Control
Numerical Control CNC/MNC
Processing Precision 0.04~0.05(mm)
Performance Classification Economical CNC Machine Tools
Machine Type Gantry Machining Center
Spindle Speed 6000-10000rpm
Control System GSK/ Siemens/ Fanuc/ Syntec/ Mitsubisin
Workbench Size 2100*1200mm
Xyz Travel 2000*1500*800mm
Color Customizable
Logo Customizable
X-Axis 45# Roller Rail
Y-Axis 45# Roller Rail
Z-Axis Hard Guide Way
Transport Package Plywood Box + Metal Pallet
Specification 5600*3300*2900mm(L*W*H)
Trademark Classic CNC
Origin China

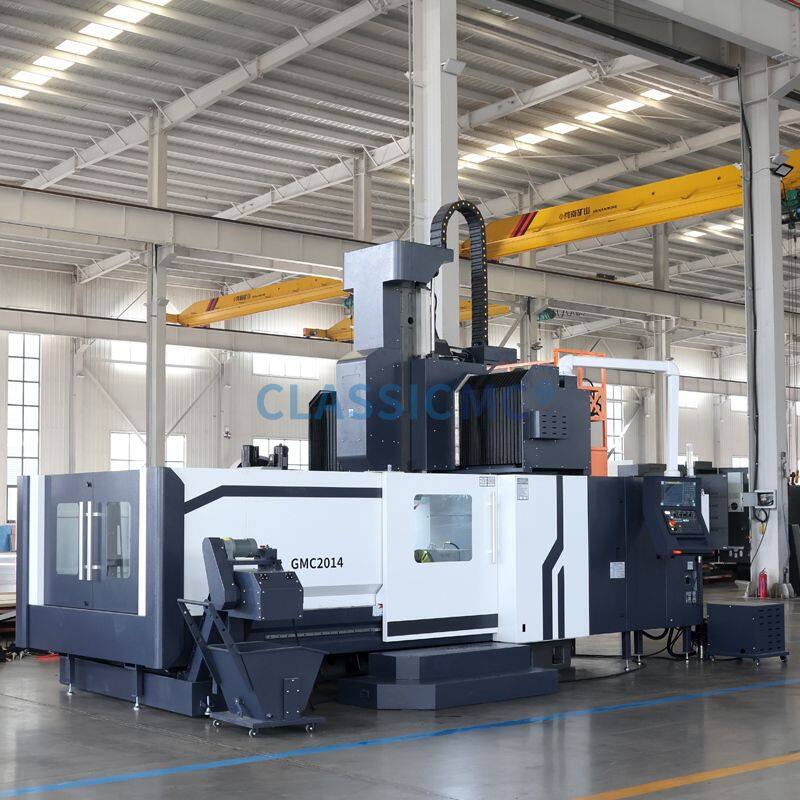

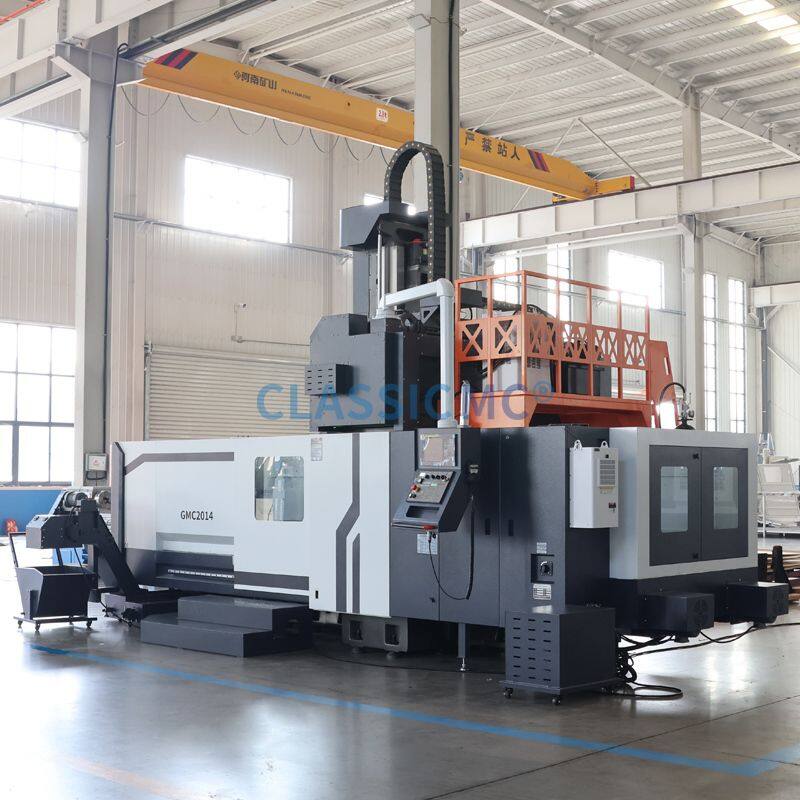

GMC2014-实景图 (3)GMC2014-实景图 (1)

GMC2014 Gantry Machining Center

The GMC2014 is a heavy-duty, high-precision 3-axis CNC gantry machining center engineered for large-scale, high-load machining. Built with a fixed-bed and moving-column structure, it delivers exceptional rigidity, stability, and accuracy for heavy cutting, mold manufacturing, and large-component production.


1. Machine Structure & Design

  • Fixed Bed & Moving Column: Heavy-duty HT300 cast iron fixed bed ensures maximum stability; moving double columns and crossbeam minimize deflection during heavy cuts.

  • Reinforced Ribbed Construction: Thick-walled, ribbed cast iron (bed, column, crossbeam) reduces vibration and thermal deformation for consistent precision.

  • 2 Linear Guides + 1 Hard Rail (2L1H): X/Y axes use heavy-duty roller linear guides; Z-axis combines linear guides with a hard rail, balancing speed, precision, and heavy-load capacity.

  • High-Torque Spindle Head: Reinforced spindle box with optional German two-stage gearbox for high torque in heavy cutting.

2. Technical Specifications


3. Key Features

  • Extreme Rigidity & Load Capacity: Heavy cast iron structure supports up to 5-ton workpiece loads and aggressive heavy cutting.

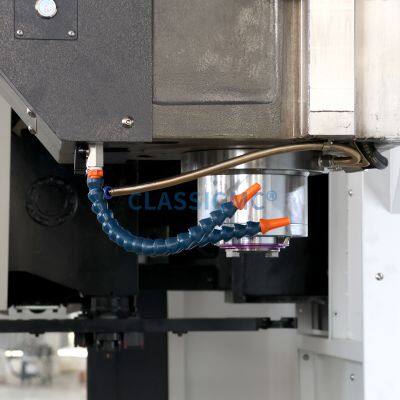

  • Precision & Thermal Stability: Oil-cooled spindle, thermal compensation, and high-precision linear guides ensure consistent accuracy.

  • High Efficiency: Fast rapid feeds (20/12 m/min) reduce non-cut time; 6000 rpm BT50 spindle handles both roughing and finishing.

  • Durability & Low Maintenance: Sealed guideway covers, centralized lubrication, and electrical cabinet air conditioner for long-term reliability.

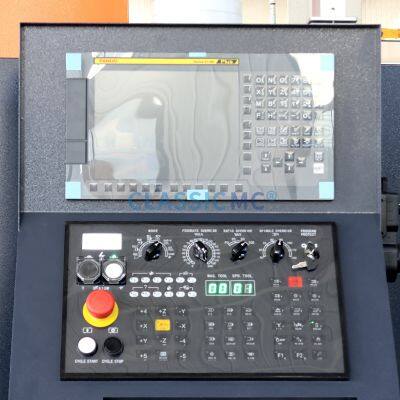

  • User-Friendly Operation: Large work envelope, easy table access, and ergonomic CNC panel.

4. Applications

  • Mold Industry: Automotive molds, large plastic molds, die-casting molds.

  • Heavy Machinery: Large gear boxes, machine bases, structural components.

  • Energy & Power: Turbine parts, generator components, large valve bodies.

  • Aerospace & Transportation: Large structural parts, railway components, heavy equipment parts.

5. Optional Upgrades

  • 4th/5th Axis Rotary Table: For multi-sided and complex 5-axis machining.

  • Automatic Tool Changer (ATC): 24/32-tool magazine for automated tool changes.

  • Gear-Driven Spindle: 8000 rpm with higher torque for heavy cutting.

  • High-Pressure Coolant System: Through-spindle coolant for deep-hole drilling.

  • Linear Scales: Full-closed loop feedback for ultra-high precision.

The GMC2014 combines heavy-duty construction, high precision, and versatility, making it an ideal choice for manufacturers requiring reliable, high-performance large-part machining solutions.
