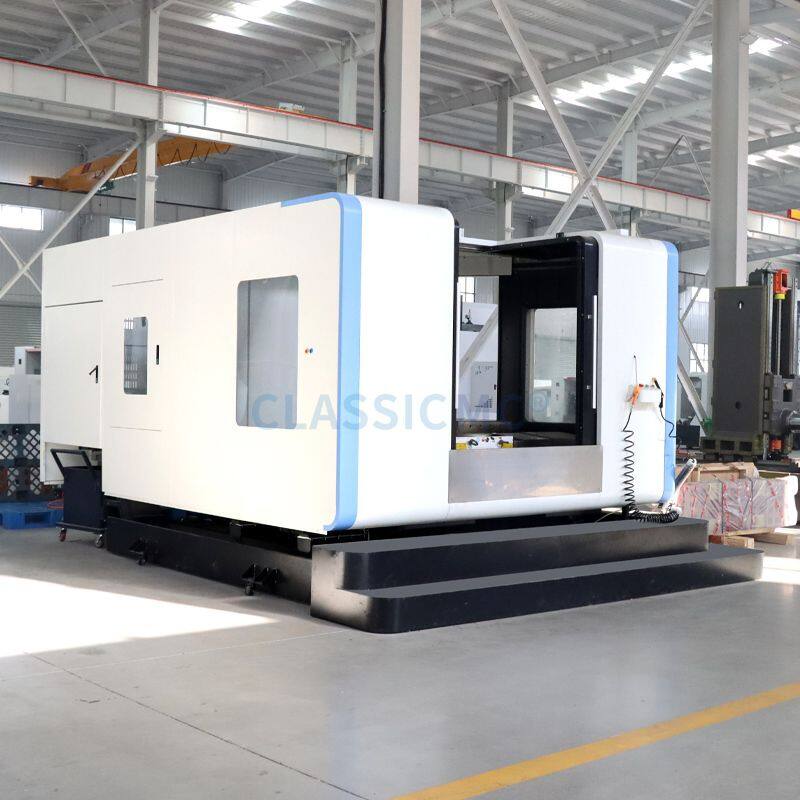

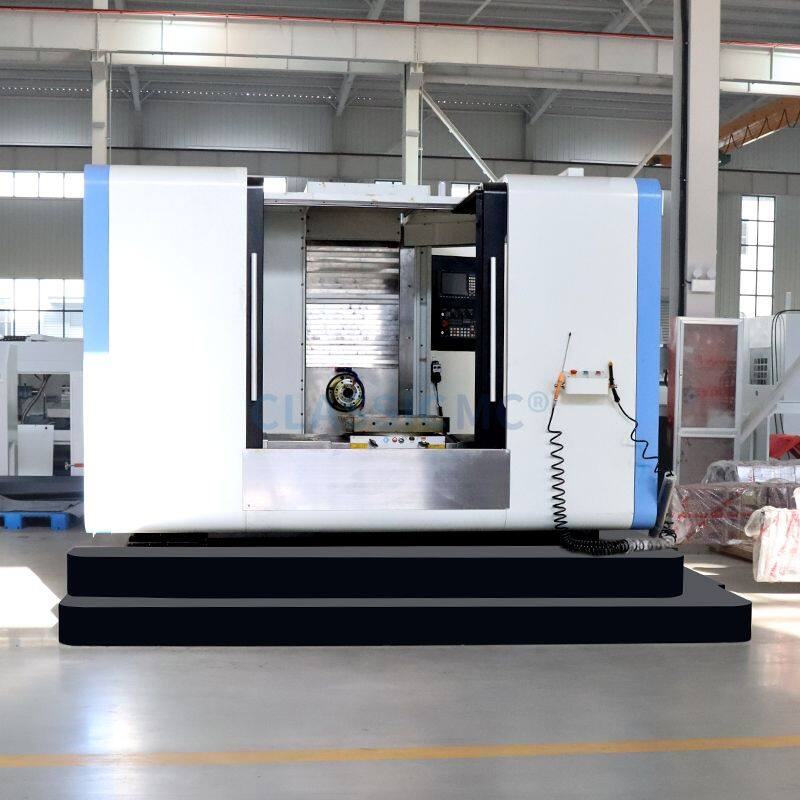

HMC800 Horizontal Machining Center – Full English Description
Overview
The HMC800 is a heavy-duty, high-precision 3-axis CNC horizontal machining center with inverted T-type integral cast iron structure. It is specially designed for multi-sided machining, box-type parts, shell parts, mold components and batch production in automotive, engineering machinery and aerospace industries. With rigid body design, high-torque spindle and precise rotary worktable, it realizes one-clamp multi-surface processing, greatly improving production efficiency and machining accuracy.
1. Machine Structural Features
Adopts high-grade HT300 stress-relieved cast iron for bed, column, crossbeam and spindle head, high rigidity, anti-vibration and non-deformation for long-term use.
Inverted T layout, overall force structure is reasonable, effectively resisting cutting vibration and thermal deformation.
X/Y/Z three axes adopt heavy-duty roller linear guide ways, featuring large load capacity, fast moving speed and good wear resistance.
High-precision C3 grade pre-tensioned ball screw, stable transmission, ensuring long-term positioning accuracy.
Equipped with precision 800mm rotary B-axis worktable, supporting 360° indexing and continuous rotation for multi-angle complex machining.
Fully enclosed safety protection, matched with efficient chip removal system and large flow cooling system, clean and environmentally friendly.
2. Main Technical Parameters
Stroke & Working Range
X-axis travel: 1200 mm
Y-axis travel: 1000 mm
Z-axis travel: 900 mm
Spindle center height: 250–1150 mm
Rotary Worktable
Table size: 800 × 800 mm
Maximum loading weight: 1800 kg
B-axis indexing: 1° standard, 0.001° continuous indexing optional
Max workpiece swing diameter: Φ1200 mm
T-slot specification: 7×22 mm
Spindle System
Spindle taper: BT50 / BBT50 optional
Standard spindle speed: 6000 rpm
Optional speed: 8000 rpm gear head high torque spindle
Spindle motor power: 18.5 kW / 22 kW
Spindle adopts oil cooling constant temperature system, stable precision and small thermal deformation.
Feed System
X/Y/Z rapid traverse: 36 m/min
Cutting feed speed: 1–15 m/min
High rigidity servo motor matched with large diameter ball screw, stable and fast response.
Tool Magazine & ATC
Standard tool magazine: 24 tools
Optional: 30 / 40 / 60 tools
Tool shank: BT50
Tool change time: about 4s
Max tool length: 450 mm
Max tool diameter: Φ130 mm (Φ260 mm vacant adjacent)
Machining Accuracy
Positioning accuracy: ±0.005 mm
Repeat positioning accuracy: ±0.003 mm
B-axis indexing accuracy: ≤8 arcseconds
Overall Specification
Machine overall weight: About 32000 kg
Overall dimension (L×W×H): 6800×4800×3600 mm
Optional CNC system: FANUC 0i-MF, Siemens 828D, Mitsubishi M80
3. Core Advantages
Super High RigidityIntegral cast iron body + roller linear guide way, suitable for heavy cutting and rough & finish machining.
One-time Clamping Multi-surface Machining800mm precision rotary table completes 4-sided or multi-angle processing in one clamping, saving fixture and processing time.
High Efficiency & High PrecisionFast rapid traverse, fast tool change and constant temperature spindle ensure stable precision and mass production capacity.
Strong DurabilityCentralized automatic lubrication, fully sealed guide way protection, electric cabinet air conditioner, long service life and low maintenance cost.
4. Application Industry
Automotive parts: engine housing, gearbox shell, chassis components
Engineering machinery: hydraulic valve block, pump body, structural parts
Mold industry: large die-casting mold, plastic mold base and cavity
Aerospace & energy equipment: precision shell and complex structural parts
Batch production of various box, disk and bracket workpieces
5. Optional Configuration
Dual pallet automatic exchange system
4th / 5th axis full function linkage
Through-spindle high pressure coolant
Closed-loop linear scale precision upgrade
Chain type large capacity tool magazine
Spindle oil mist cooling and dust collection device
