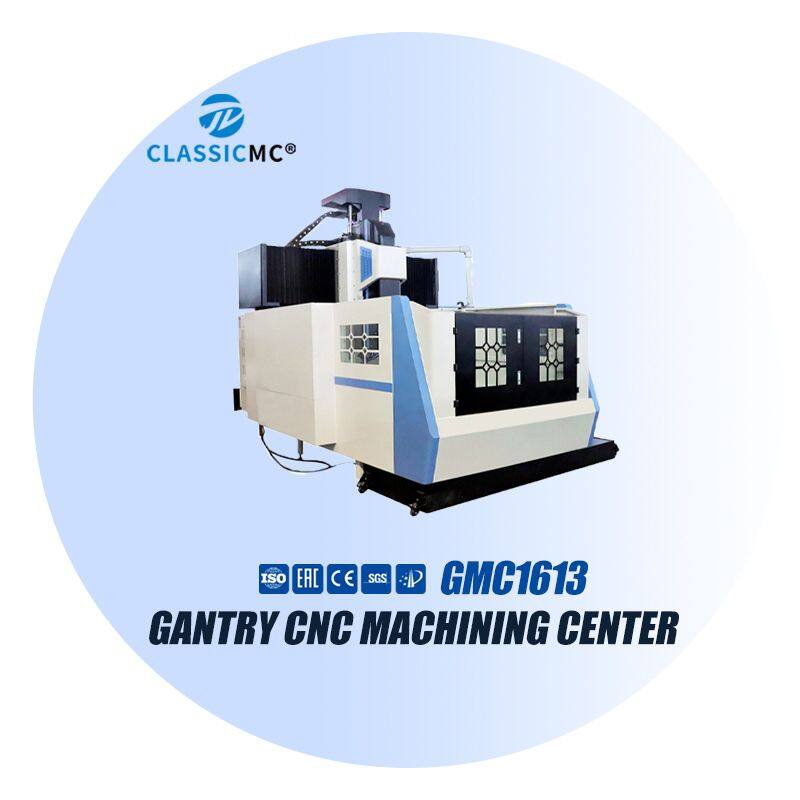

GMC1613 Gantry Machining Center
The GMC1613 is a high-precision, heavy-duty 3-axis CNC gantry machining center designed for large-part machining, mold manufacturing, and heavy cutting applications. It features a fixed-bed, moving-column structure, robust cast iron construction, and high-performance linear guides, ensuring exceptional rigidity, stability, and accuracy for long-term, high-volume production.
1. Machine Structure & Design
Fixed Bed & Moving Column: The fixed heavy-duty bed (HT300 cast iron) provides a stable foundation, while the moving column and crossbeam ensure precise movement with minimal deflection during heavy cuts.
Reinforced Crossbeam & Columns: Thick-walled, ribbed cast iron crossbeam and double columns enhance rigidity, reducing vibration and thermal deformation.
Two Linear Guides + One Hard Rail (2L1H): X/Y axes use imported heavy-duty roller linear guides; Z-axis combines linear guides with a hard rail, balancing high speed, precision, and heavy-load capacity.
Integral Spindle Head: Reinforced spindle box with German two-stage gearbox for high torque and heavy cutting performance.
2. Key Features
High Rigidity & Stability: Heavy cast iron structure + 2L1H guideway design supports heavy loads and aggressive cutting.
Precision & Thermal Stability: Oil-cooled spindle, thermal compensation, and high-precision linear scales ensure consistent accuracy.
High Efficiency: Fast rapid feeds (18/12 m/min) reduce non-cut time; 6000 rpm BT50 spindle handles both roughing and finishing.
User-Friendly Operation: Large work envelope, easy access to worktable, and ergonomic CNC panel.
Durability: Sealed guideway covers, centralized lubrication, and electrical cabinet air conditioner for long-term reliability.
3. Applications
Mold Industry: Automotive molds, large plastic molds, die-casting molds.
Heavy Machinery: Large gear boxes, machine bases, structural components.
Energy & Power: Turbine parts, generator components, large valve bodies.
Aerospace & Transportation: Large structural parts, railway components, heavy equipment parts.
4. Optional Upgrades
4th/5th Axis Rotary Table: For multi-sided and complex 5-axis machining.
Automatic Tool Changer (ATC): 24/32-tool magazine for automated tool changes.
Gear-Driven Spindle: 8000 rpm with higher torque for heavy cutting.
High-Pressure Coolant System: Through-spindle coolant for deep-hole drilling.
Linear Scales: Full-closed loop feedback for ultra-high precision.
The GMC1613 combines heavy-duty construction, high precision, and versatility, making it an ideal choice for manufacturers requiring reliable, high-performance large-part machining solutions.
