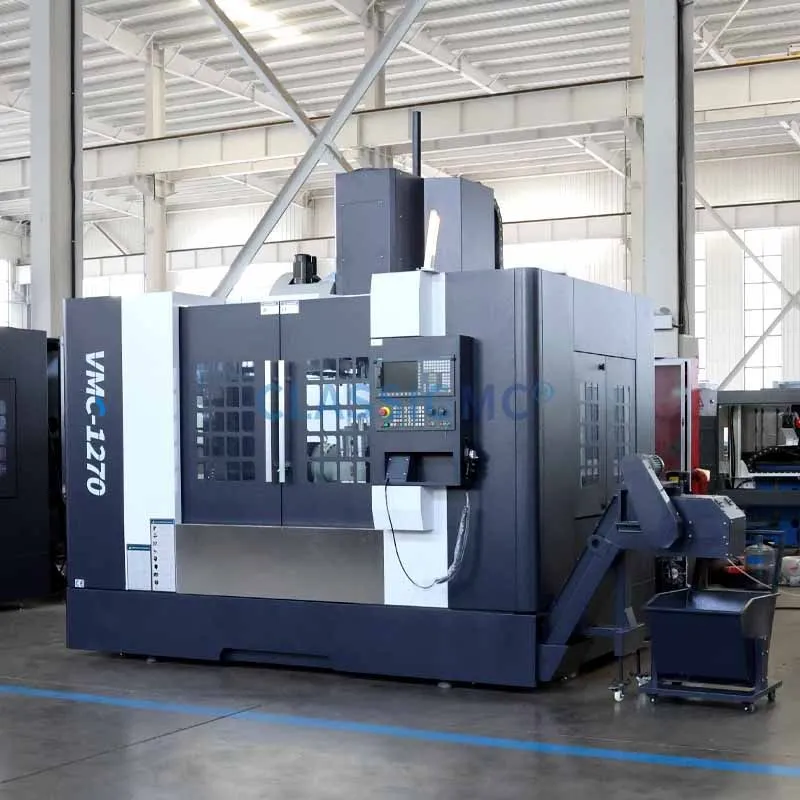

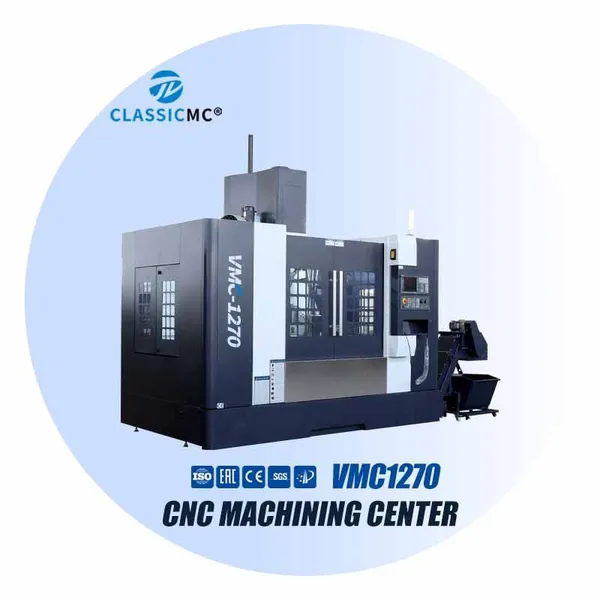

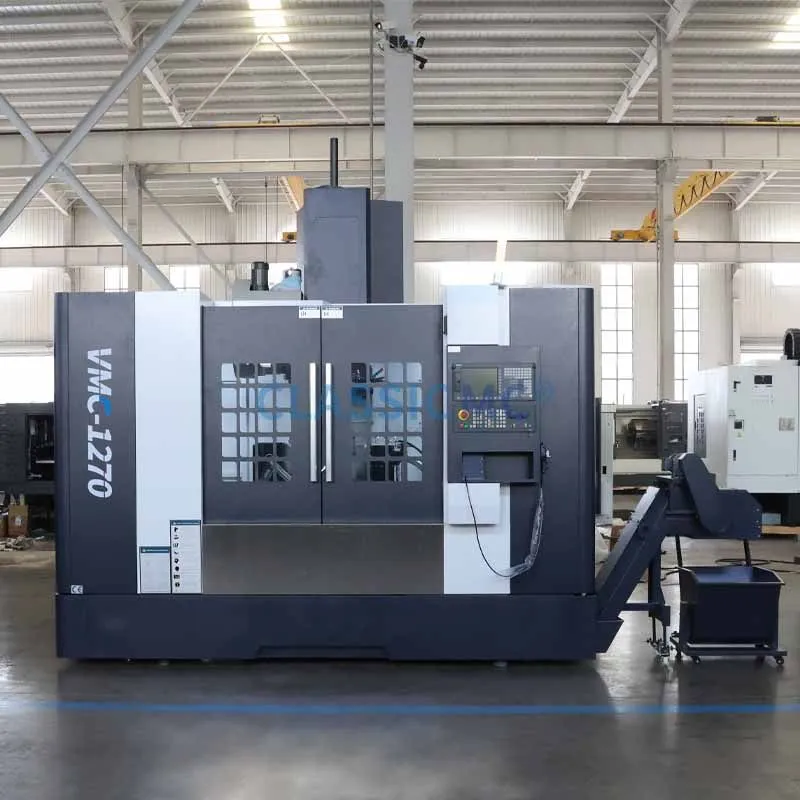

VMC1270 Vertical Machining Center - Detailed English Description
1. General Introduction
The VMC1270 is a high-rigidity, high-precision CNC vertical machining center designed for heavy-duty cutting, mold manufacturing, and precision part processing. It integrates advanced structural design, high-performance components, and intelligent control systems, delivering outstanding stability, accuracy, and efficiency for complex machining tasks.
2. Structural Features
Rigid Pyramid Frame: Constructed with high-quality resin sand castings, featuring a scientifically reinforced rib structure. This design ensures optimal structural ratio, enhanced vibration damping, and stable thermal performance, extending the machine’s service life.
Hardened & Precision-Ground Slideways: All guideways are hardened, precision-ground, and coated with low-friction Turcite-B material, providing excellent wear resistance and smooth movement.
High-Precision Drive System: Equipped with high-precision ball screws for X/Y/Z axes. Laser interferometer and ball bar testing are used during installation to calibrate parameters, ensuring superior positioning accuracy.
3. Main Technical Specifications
4. Spindle System
High-torque spindle unit with BT40/BT50 taper, ensuring powerful cutting capability.
Precision bearings and advanced cooling technology minimize thermal deformation during high-speed operation, maintaining long-term accuracy.
Optional through-spindle coolant system for deep-hole machining and improved tool life.
5. Tool Magazine & ATC
Standard 24-tool disc-type tool magazine with automatic tool changer (ATC).
Fast tool change time (≈2.5 seconds) reduces non-cutting time and boosts productivity.
Supports various tool sizes (max. diameter φ78mm, max. length 300mm).

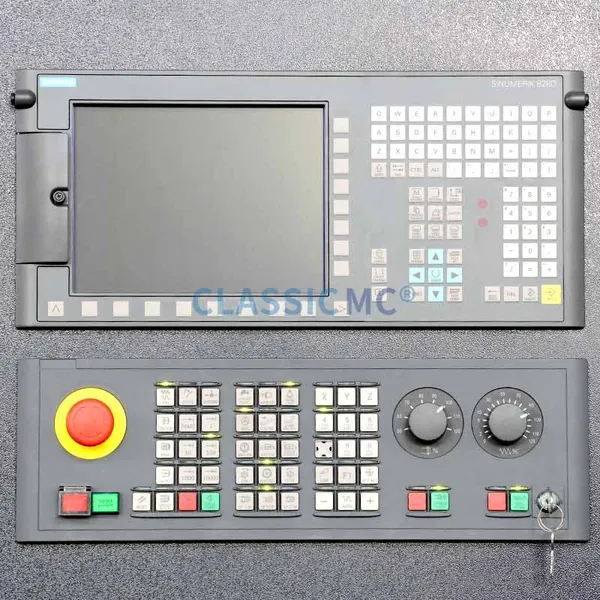

6. Control System
Equipped with advanced CNC controller (e.g., FANUC 0i-MF, SIEMENS 808D) for user-friendly operation and powerful programming functions.
Features: 3-axis interpolation, canned cycles, tool wear compensation, and real-time monitoring.
Supports offline programming and DNC communication for flexible manufacturing.
7. Application Range
Mold Industry: Ideal for plastic molds, die-cast molds, and forging molds.
Mechanical Parts: Suitable for box-type parts, flanges, and complex 3D components.
Heavy-Duty Machining: Capable of processing large, heavy workpieces with high stability.
8. Optional Configurations

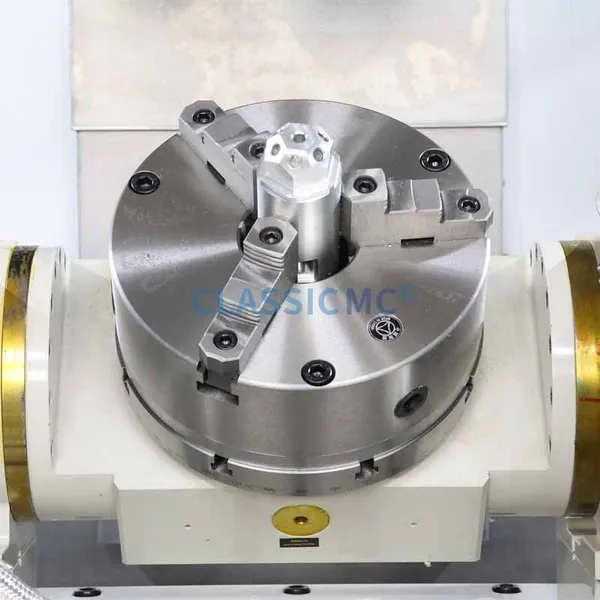

4th/5th axis rotary table for multi-axis machining.
High-speed spindle (10,000–15,000rpm).
Chip conveyor and coolant filtration system.
Automatic door and oil mist collector for enhanced safety and environmental protection.
