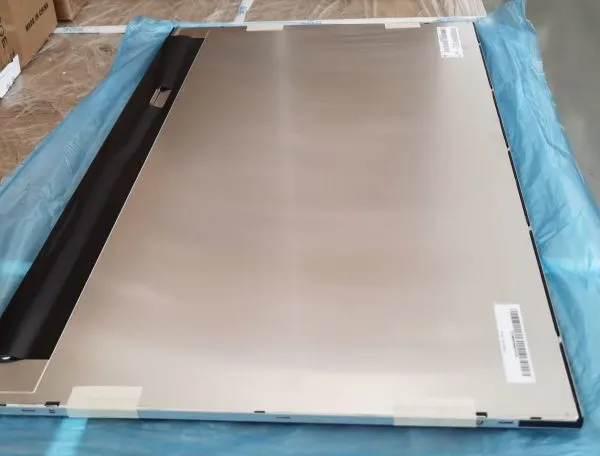

M270HVN02.0 is a 27.0-inch a-Si TFT-LCD liquid crystal module launched by AUO. Its parameters are as follows:
1.?Screen type: a-Si TFT-LCD, liquid crystal module
2.?Screen size: 27.0 inches
3.?Resolution: 1920 (RGB) × 1080, FHD, 81PPI
4.?Pixel configuration: RGB vertical stripe
5.?Dot pitch: 0.10375 × 0.31125 (W × H) mm
6.?Pixel pitch: 0.31125 × 0.31125 (W × H) mm
7.?Display size: 597.6 (W) × 336.15 (H) mm
8.?Visible size: 601.6 (W) × 340.15 (H) mm
9.?Overall dimensions: 613.6 (W) × 356.85 (H) mm
10.?Overall thickness: 7.2/10.5 (Typ./Max.) mm
11.?Aspect ratio: 16∶9 (W∶H)
12.?Bezel type: With bezel
13.?Weight: 2.18Kgs (Typ.)
14.?Surface treatment: Matte, Hard coating (3H)
15.?Physical shape: Flat rectangle
16.?Landscape/portrait: Landscape mode
17.?Operating temperature: 0~50°C
18.?Storage temperature: -20~60°C
19.?Vibration resistance: 1.5G (14.7m/s2)
20.?Brightness: 300cd/m2
21.?Contrast ratio: 3000∶1 (Typ.) (Transmission)
22.?Viewing angle: 89/89/89/89 (Typ.) (CR≥10) (Left/Right/Up/Down), with the best viewing angle being full viewing angle
23.?Response time: 7/5 (Typ.) (Tr/Td) ms
24.?Number of colors: 16.7M (8-bit)
25.?Color gamut: 72% NTSC (CIE1931)
26.?Backlight: WLED edge-lit light source (bottom), service life of 40K hours, without backlight driver
27.?Signal interface: LVDS (2ch, 8-bit), 30pins, terminal connection, driving voltage 5.0V (Typ.)
28.?Vertical refresh rate: 75Hz
AUO 27-inch LCD display
Model: M270HVN02.0
Resolution: 1920*1080
Brightness: 300cd/m2
Viewing angle: 89/89/89/89
Contrast ratio: 3000:1
Operating temperature: 0~50°C
Storage temperature: -20~60°C
