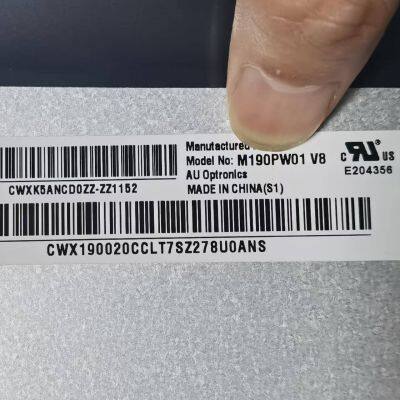

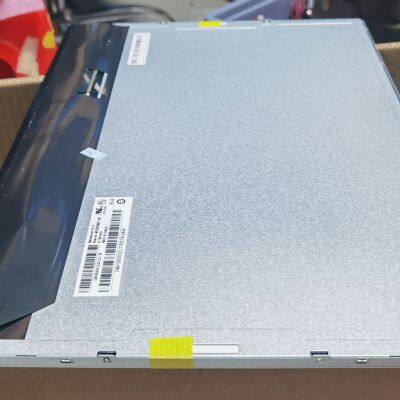

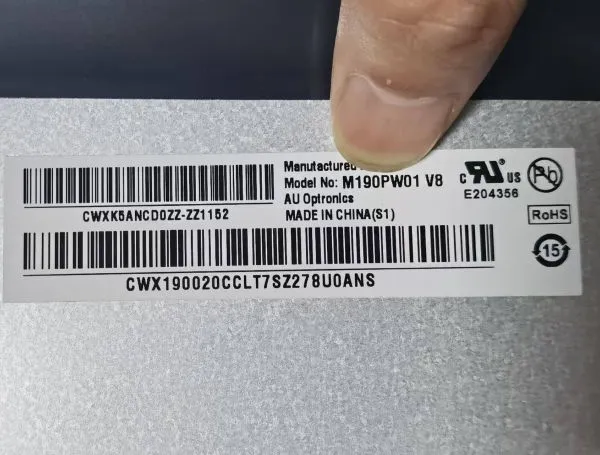

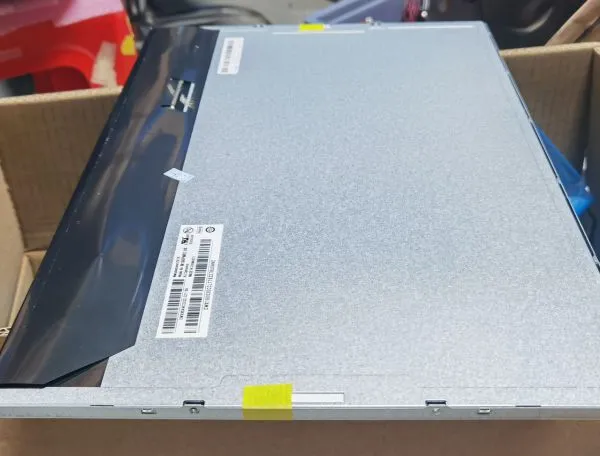

M190PW01-V8 is a 19-inch LCD module product launched by AU Optronics. The following are its detailed parameters:
Basic Information
- Panel Type: a-Si TFT-LCD
- Resolution: 1440×900 (WXGA+)
- Pixel Arrangement: RGB vertical stripe
- Aspect Ratio: 16∶10
- Dot Pitch: 0.0945×0.2835mm
- Pixel Pitch: 0.2835×0.2835mm
- Resolution: 89PPI
Appearance Parameters
- Display Area: 408.24×255.15mm
- Opening Area: 412.24×259.15mm
- Overall Dimensions: 428×278×7.7/10.8 (Typ./Max.) mm
- Appearance Shape: Flat rectangle
- Bezel Type: With bezel
- Panel Net Weight: 1.45Kgs (Typ.)
- Surface Treatment: Matte, Hard coating (3H)
- Mounting Method: Side mounting holes (4-M3) on left, right bezel
Optical Parameters
- Display Brightness: 250cd/m2
- Transmission Contrast Ratio: 1000∶1
- Viewing Angle: 85/85/80/80 (Typ.) (CR≥10) (L/R/U/D)
- Response Time: 3.6/1.2 (Typ.) (Tr/Td) ms
- Display Colors: 16.7M
- Color Saturation: 72% (NTSC)
- Color Temperature: 6485K
Backlight Parameters
- Light Source Type: WLED (White Light Emitting Diode)
- Number of Light Sources: 13S4P
- Light Source Position: Edge-lit (bottom)
- Light Source Lifespan: 30K hours (Min.)
- Backlight Driver: Including LED driver
Electrical Parameters
- Signal Interface: LVDS (2ch, 8-bit), 30pins
- Screen Driving Voltage: 5.0V (Typ.)
- Operating Current: 0.9/1.1A (Typ./Max.)
- Total Power Consumption: 15.1W (Typ.)
- Vertical Refresh Rate: 75Hz
Operating Environment
- Operating Temperature: 0°C - 50°C
- Storage Temperature: -20°C - 60°C
