Product Spotlights

This screen is primarily used in advertising machines, liquid crystal displays, information kiosks, touchscreen monitors, medical equipment, military applications, industrial control systems, queue management systems, facial recognition systems, treadmills, menu ordering systems, banks, government h
US$ 150 ≥10 Blades
Key Specifications
Get Latest Price
Type:
LED Display
Screen Size:
>20''
Resolution:
1920 x 1080
Contact Supplier Request Quote Chat Now
Shenzhen Kaixian Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type LED Display
Screen Size >20''
Resolution 1920 x 1080
Brightness 500-699 Nits
Operating Temperature -20℃ to 60℃
Touch Technology Other
Refresh Rate 240Hz

AUO 43 inch TFT-LCD LCD Module P430HVN01.8 Basic parameters:

I. Basic information

Model: P430HVN01.8

Size: 43 inches, resolution 1920 × 1080 (FHD)

Interface: LVDS, 16.7M color support, a-Si TFT active matrix driver

Backlight type: LED side backlight, a total of 192 LEDs, using 24 strings of 4 and electric circuit design

Compliance: RoHS environmental compliance

II. Machinery and specifications

Iron frame / backlight Size: 961 mm × 549.2mm × 21.9mm

Display area size: 940.896 mm × 529.254mm

Panel thickness: 1.32 mm, typical weight 1500 g

Appearance: Anti-glare AG treatment, hardness 3 H, haze 2%

III. Electrical characteristics

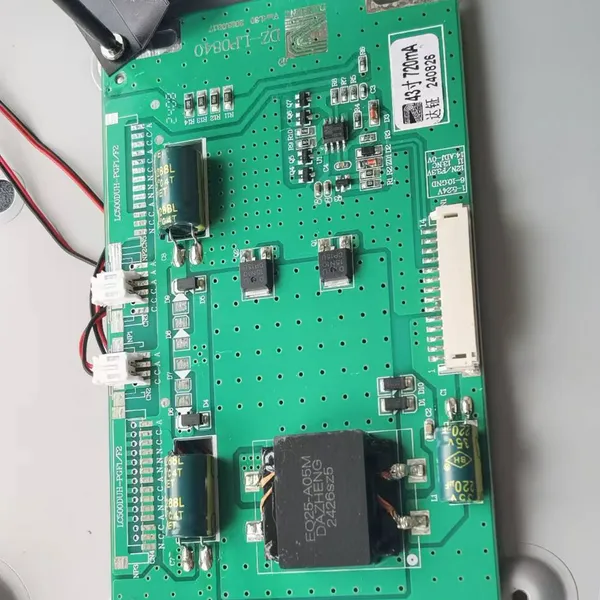

(1) Backlit Electrical

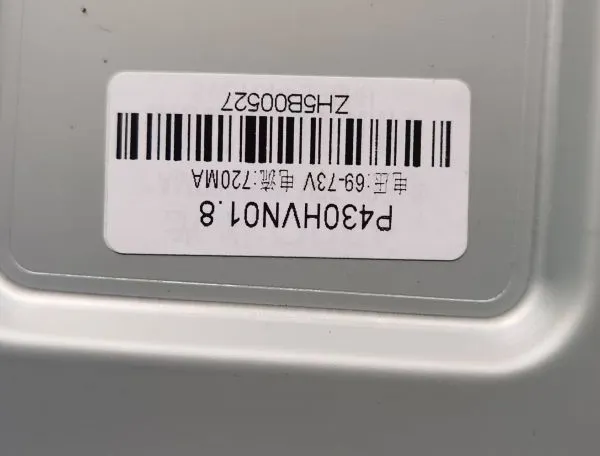

Single light bar input voltage: 69 ~ 73 V (typical 73 V)

Single strip input current: typical 360 mA

LED life: ≥ 30000hours

Interface: JST PHR-2 compatible connector

(2) Panel Electrical

Supply voltage: VDD = 12V (range 10.8 ~ 13.2V)

Working current: black and white picture about 0.42 ~ 0.5A, stripe picture about 0.65 ~ 0.78A

Power consumption: black and white picture about 5.04 ~ 6W, stripe picture about 7.8 ~ 9.36W

Inrush Current: Max. 5 A

Logic voltage: -0.3 ~ 14V, signal voltage: -0.3 ~ 4V

IV. Optical Specifications

Center brightness: typical 500 cd / m2 (minimum 450 cd / m2)

9 point luminance uniformity: ≥ 72% (typical 75%)

Contrast ratio: typical 3000: 1 (minimum 2400: 1)

Response time (gray scale): 8 ~ 16 ms

Viewing angle: ≥ 85 ° up and down (CR > 10)

Chromaticity coordinates: CIE standard light source C, RGB tricolor coordinates fixed

Test conditions: 25C ± 2C, 65% ± 10% RH, ambient brightness

V. Environmental conditions

Working temperature: 0 ~ 55 ° C;Working humidity: 5% ~ 95% (40 ° C)

Storage temperature: -10 ~ 60 ° C;Storage Humidity: 8% ~ 90% (50 ° C)

Recommended storage: 18 ~ 24C, 50% ~ 70% RH, light proof, anti-static

VI. Inspection criteria (appearance + image)

Highlights / Dark Spots / Aliens

≤ 0.15mm: Ignored

0.15 ~ 0.5mm: ≤ 3, spacing ≥ 5mm

≥ 0.5mm: Not allowed

Scratch / Lined Foreign Object

Width ≤ 0.1 mm: ignored

0.1

Excessive rules: not allowed

Exterior of sheet metal: There are clear limits for scraps, pressure marks, edges, oxidation, and dirt

Accessories: Lines, connectors, tape, labels are not allowed to break, shift, content errors

VII. Reliability Testing (Whole Project)

High temperature and humidity operation: 45C / 85% RH / 240H

High and low temperature operation: 60 C / 0 C 240 H each

Continuous lighting: 25C / 10000 H

Switching cycle: 30 s on / 30 s off, 10000 times

Hot and cold shock: -20C70C, 30 min each, 200 times

Vibration: 1.5G / 10 ~ 300Hz, XYZ three axes 30 min each

Packaging fall: corresponds to height by weight, 1 angle, 3 sides, 6 sides

Wire / terminals: bend, tensile strength testing

Benchmark: No anomalies in lighting, good appearance, brightness maintained ≥ 60%, uniformity change

VIII. Interface and signal definition

Connector: JAE FI-RTE51SZ-HF 51Pin LVDS interface

Key pins: I2C (SCL / SDA), write protection WP, LVDS format selection LVDS _ SEL, power VDD, GND

LVDS format: Supports NS and JEIDA, switching by LVDS _ SEL level

I2C parameters: Clock up to 350 kHz for VCOM regulation

Power-on timing: strict regulation of VDD, LVDS signal, backlight, control signal timing interval

IX. Packaging and Shipping

Internal packaging: glass face relative, partitioning protection

External cases: 16 pieces / box, 8 boxes / tray (128 pieces = tray)

Labels: including material number, model, quantity, RoHS, date of birth, etc.

Pallet size: 1100 × 800 × 132 mm, whole weight about 233.48 kg

10 Procedures and Precautions

Storage: Light-proof, humidity-proof, antistatic, anticorrosive gas

Assemble: Wear antistatic bracelets / gloves, and prohibit naked hands from touching polarizing lenses and interface pins

Tore the film: It needs to be antistatic, slow tore (≥ 8 seconds / slice), and ionic wind.

CLEANING: Use hexane, prophylaxis, toluene, alcohol, etc.

ESD control: environmental static electricity

Ageing: It takes ≥ 1 hour to age for the first time on electricity

VCOM conditioning: debugging via I2C interface to eliminate flicker


AUO 43-inch LCD screen.

Model P430HVN01.8

Resolution: 1920*1080

Contrast ratio: 3000:1

Luminance: 500cd/m2

Signal interface: LVDS

Viewing angle: 85*85*85*85

Operating temperature: 0°C to +50℃

Storage temperature: -20 to +60℃
