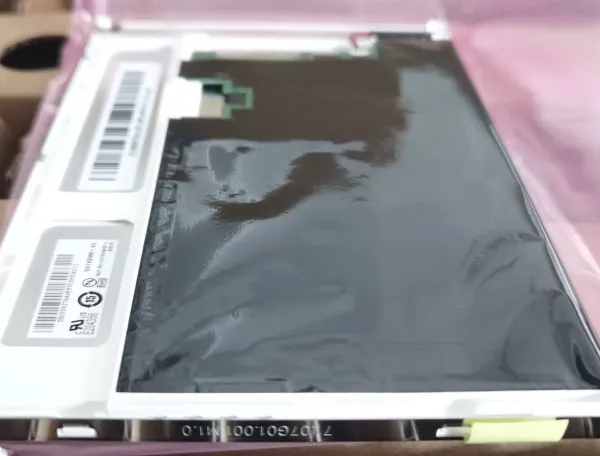

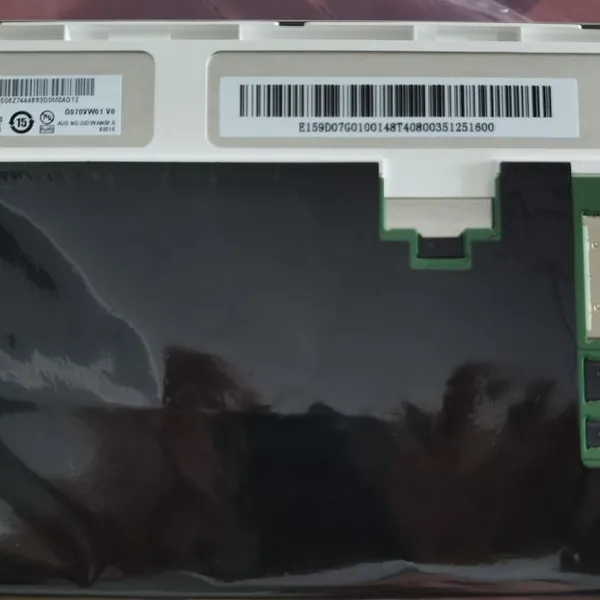

G070VW01 V0 is a 7.0-inch LCD module product launched by AUO, which is commonly used in industrial fields. Its detailed parameters are as follows:
- Basic Information: The screen type is a-Si TFT-LCD, the operating temperature is -30~85℃, the storage temperature is -30~85℃, the vibration resistance is 1.5G (14.7m/s2), and the current production status is in mass production.
- Structural Features: The resolution is 800×480, the pixel configuration is RGB vertical stripe, the aspect ratio is 16:9, the dot pitch is 0.088×0.264mm, and the pixel pitch is 0.264×0.264mm. The display area is 152.4 (W) ×91.44 (H) mm, the overall dimension is 170 (W) ×111 (H) ×8 (Thickness) mm, the screen weight is 165/175g (Typ./Max.), the surface is matte with Hard coating (3H) treatment, and there is no touch function.
- Optical Features: The display mode is TN, normally white display, transmissive. The brightness is 400cd/m2 (Typ.), the contrast ratio is 750:1 (Typ.), the display color is 262K/16.2M, the response time is 20/10 (Typ.) (Tr/Td) ms, the viewing angle is 80/80/80/80 (Typ.) (CR≥10), the white chromaticity is not mentioned, the brightness variation is not mentioned, the color temperature is not mentioned, and the refresh rate is 60Hz.
- Lighting System: The lamp position is edge-lit light source, the light source type is WLED, and the light source life is 50K (Min.) hours. The input voltage is 32.0/36.5V (Typ./Max.), the input current is 80/84mA (Typ./Max.), and the electrical power consumption of the lamp is 2.56W (Typ.).The contrast ratio of G070VW01 V0 is 750:1 (Typ.).

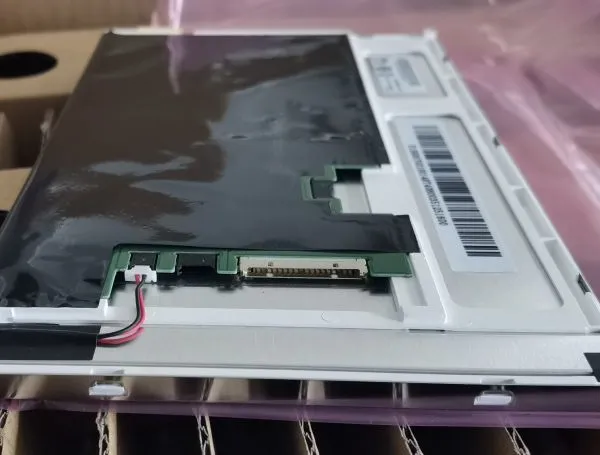

- Signal Interface: The signal category is LVDS, the sub-category is LVDS (1ch, 6/8-bit), the input voltage is 3.3V (Typ.), the input current is 0.24/0.26A (Typ./Max.), the power consumption is 0.8/0.96W (Typ./Max.), the interface type is terminal, the interface pin pitch is 1.0mm, the number of interfaces is 1pcs, and the number of interface pins is 20pins.
AUO 7-inch LCD Industrial Control Screen

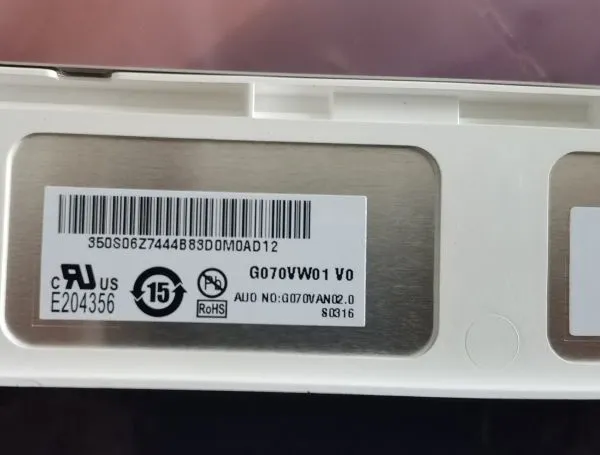

Model: G070VW01 V0
Resolution: 800*480
Brightness: 400cd/m2
Viewing Angle: 80/80/80/80
Contrast Ratio: 750:1
Operating Temperature: -10~60°C
Storage Temperature: -20~70°C
