Product Name

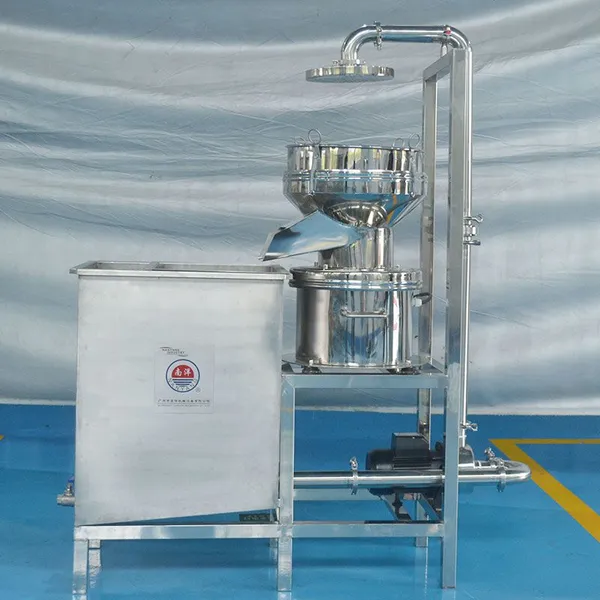

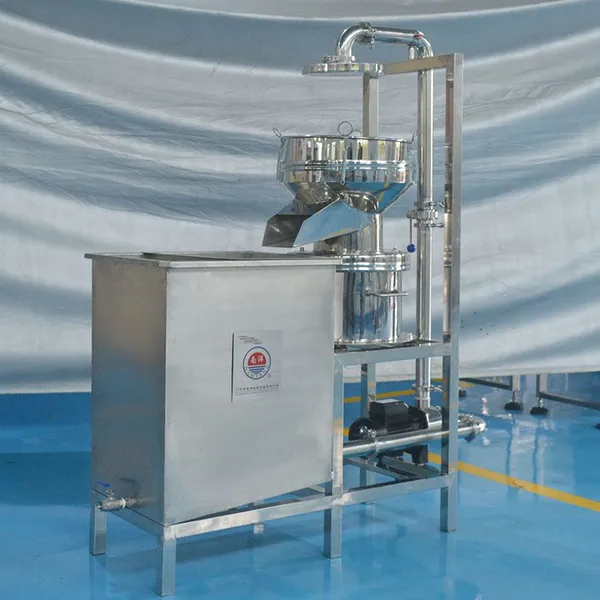

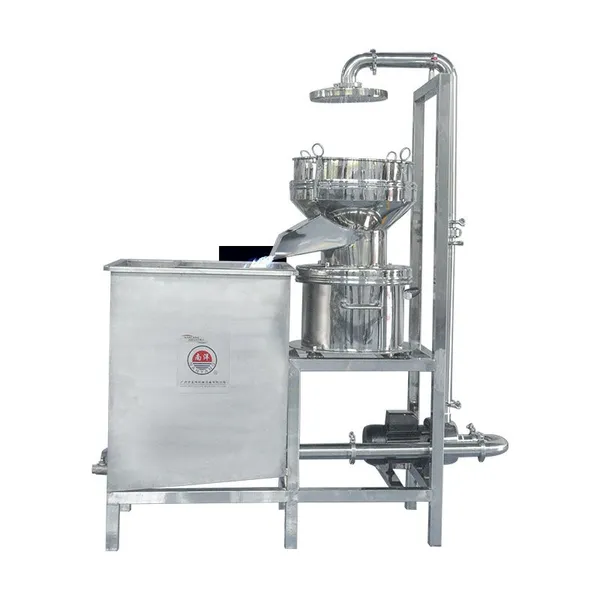

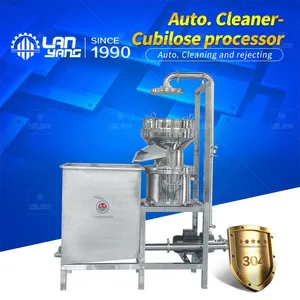

Automatic Stainless Steel Bird's Nest Washing Machine | Bubbling Type Cleaning Line for Edible Cubilose | High Pressure Spray Washer
Key Selling Points
High-Efficiency Bubbling Cleaning Technology：Combines High-pressure bubble generator + Circulating spray rinsing to effectively remove feathers, sand, and impurities. Uses soft physical impact from tiny bubbles to achieve a cleaning rate of over 99%.
Minimal Damage to Bird's Nest Structure：Pure physical cleaning method without ultrasonic vibration. By properly controlling bubble intensity and spray pressure, the machine avoids excessive impact, maximizing the integrity and commercial value of the bird's nest.
Food Grade Stainless Steel Construction：Made entirely of SUS304/316L stainless steel with mirror polishing. Corrosion-resistant and easy to clean, strictly compliant with GMP food hygiene standards.
Water Recycling & Eco-Friendly：Equipped with multi-layer precision filtration and automatic sludge discharge system to recycle washing water, significantly reducing water costs and meeting environmental requirements.
High Automation, Labor Saving：Supports automatic feeding, washing, and discharging processes, reducing manual intervention and avoiding contamination risks associated with manual cleaning.
Strong Customization Capability：Size and functions (e.g., cooling jacket, ozone sterilization) can be tailor-made according to your workshop layout and capacity requirements.
Product Specifications
| Parameter | Description |
|---|---|
| Brand | Guangdong Yinan Yang / Nanyang Enterprise |
| Origin | Shunde, Foshan City, Guangdong Province, China |
| Material | SUS304 / 316L Stainless Steel |
| Structure Type | Tank Type / Tunnel Type (Optional) |
| Cleaning Method | High-pressure bubble generator + Circulating spray |
| Application | Bird's nest, precious herbs, seafood (abalone, sea cucumber), etc. |
| Voltage | 220V / 380V, 50/60Hz (Customized) |
| Control Method | Button control / PLC fully automatic touch screen |
| Warranty | 1 year (Lifetime technical support) |
Detailed Description
Product Description
Guangdong Yinan Yang Intelligent Machinery Co., Ltd. has developed this Automatic Stainless Steel Bird's Nest Bubbling Washing Machine to address the industry's pain points: difficult cleaning, low efficiency of manual feather picking, and high product loss.
This equipment uses physical cleaning principles to simulate but outperform manual cleaning processes. The high-pressure bubble generator at the bottom of the tank produces numerous tiny bubbles. As these bubbles rise and burst, they create micro-jets that gently impact the bird's nest surface, causing attached feathers and impurities to float away. The high-pressure circulating spray then flushes suspended impurities into the filtration system. The entire process does not damage bird's nest fibers, effectively solving problems of fragility and insufficient cleanliness found in traditional cleaning methods.
Special Note：This model is designed without ultrasonic function. It uses pure physical bubbling + spray cleaning, making it especially suitable for processing scenarios where vibration sensitivity is a concern and maintaining complete nest shape is critical.
Structural Composition
Cleaning Tank：Thickened stainless steel welding, dead-angle-free design, with optional insulation/cooling jacket
Bubble Generation System：Includes high-pressure blower, air pipes, and micro-porous aeration discs for uniform and dense bubble production
Spray System：Adjustable high-pressure nozzles on top and sides for circulating rinsing
Filtration & Circulation System：Multi-layer drawer-type filters with automatic sludge discharge, water recycling
Control System：Independent waterproof control panel for setting cleaning time and working mode
Working Principle
Bubbling Cleaning Principle：Bubbles rising through the tank contact the bird's nest surface, generating impact and friction that dislodge impurities and dust. The tumbling action of bubbles also helps turn the bird's nest, ensuring uniform and thorough cleaning.
High-Pressure Spray Principle：Pressurized water is directed through spray nozzles to form high-pressure water jets that wash the bird's nest, effectively removing stubborn impurities from all parts of the material.
Application Scope
Bird's Nest Processing Plants：Pre-washing of raw cubilose, fine cleaning of finished products
Premium Health Food Deep Processing：Raw material pretreatment for ready-to-eat bird's nest production lines
Herbal Medicine & Health Products：Cleaning of precious herbs such as snow fungus and reishi mushroom
Catering Industry：Hotels and restaurants preparing bird's nest ingredients
Why Choose Yinan Yang?
Rich Experience：Located in Shunde, Foshan – a manufacturing hub with years of experience in food processing equipment
Worry-Free After-Sales：Overseas engineer guidance available, video technical support, long-term spare parts supply
One-Stop Solution：Beyond washing machines, we offer complete production line solutions including washing, draining, drying, and filling
